Dimming Control

Remote Dimmer Operation

Dimming and Color Temperature Shift
Dimming can be used to adjust the light output of the fixture. The color temperature

will shift marginally if kept to within one f-stop. Dimming beyond one f-stop may result

in a reduction of color temperature as well as a noticeable shift to magenta.

The Diva-Lite Remote Dimmer

(DIM-5) is designed to remotely dim the Diva-Lite fixture

models which have the

REMOTE DIM feature. A 15ft dimming cable is supplied with

the Dimmer.

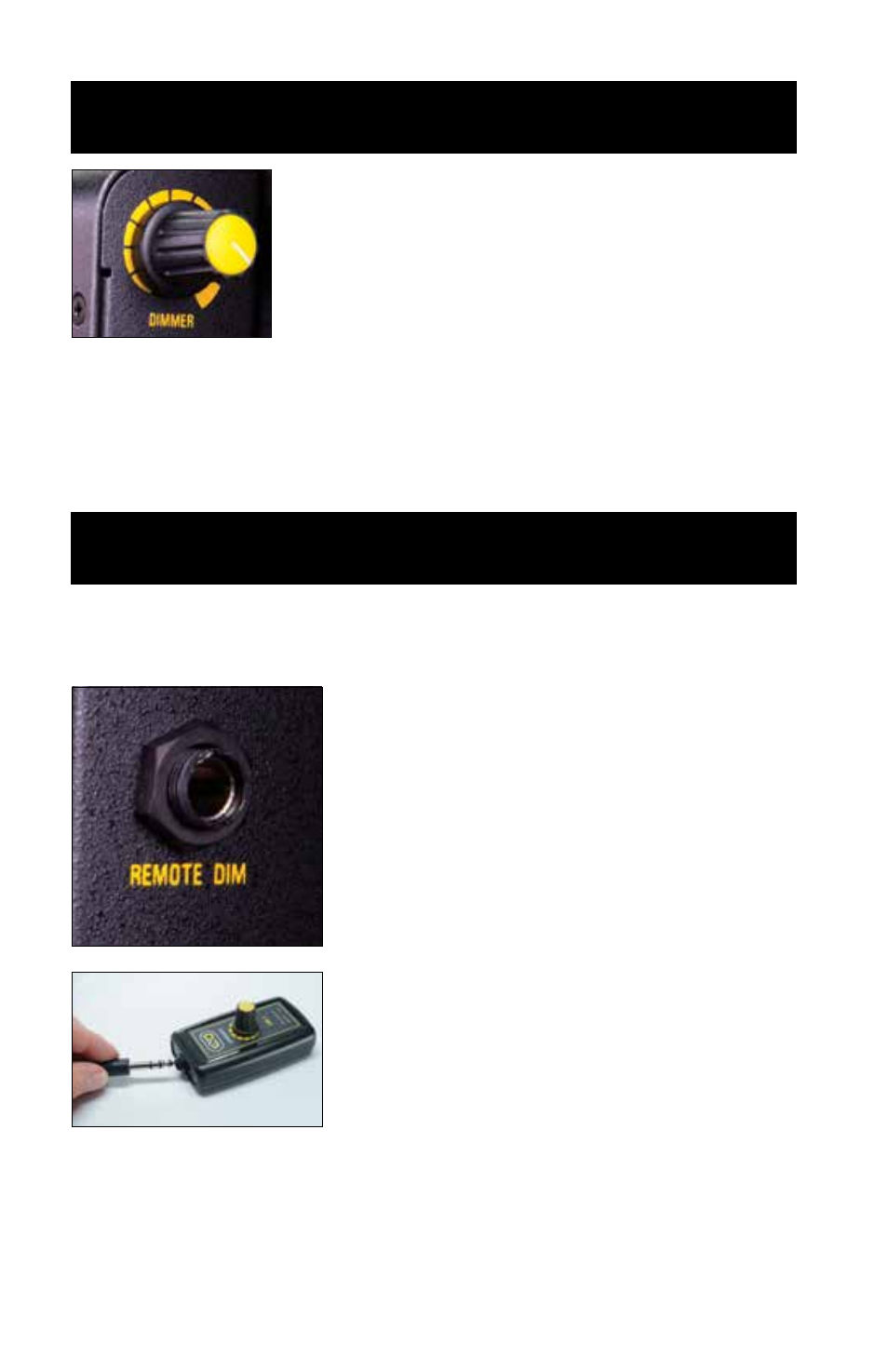

MANUAL DIMMING CONTROL
The Dimmer should be full up when striking the lamps.

Once the lamps have come up to full temperature, in about

3-5 minutes, then dim to the desired light level.

For full light output, turn dimmer fully clockwise.

An input jack for an optional Remote Dimmer

(DIM-5) is

located on the ballast.

Insert the dimmer cable into the receptacle

marked

REMOTE DIM.

Inserting the dimmer cable will automatically

disable the onboard dimmer.

Insert the other end of the dimmer cable into

the Diva-Lite Remote Dimmer

(DIM-5).
