Page 11
11
Celeb 400 DMX
Kelvin Color Temperature
Dimmer Level
Kelvin Color
Temperature
Dimmer
Level
5500K
100%
5000K
75%
4000K
50%
3200K
15%
2700K
0%

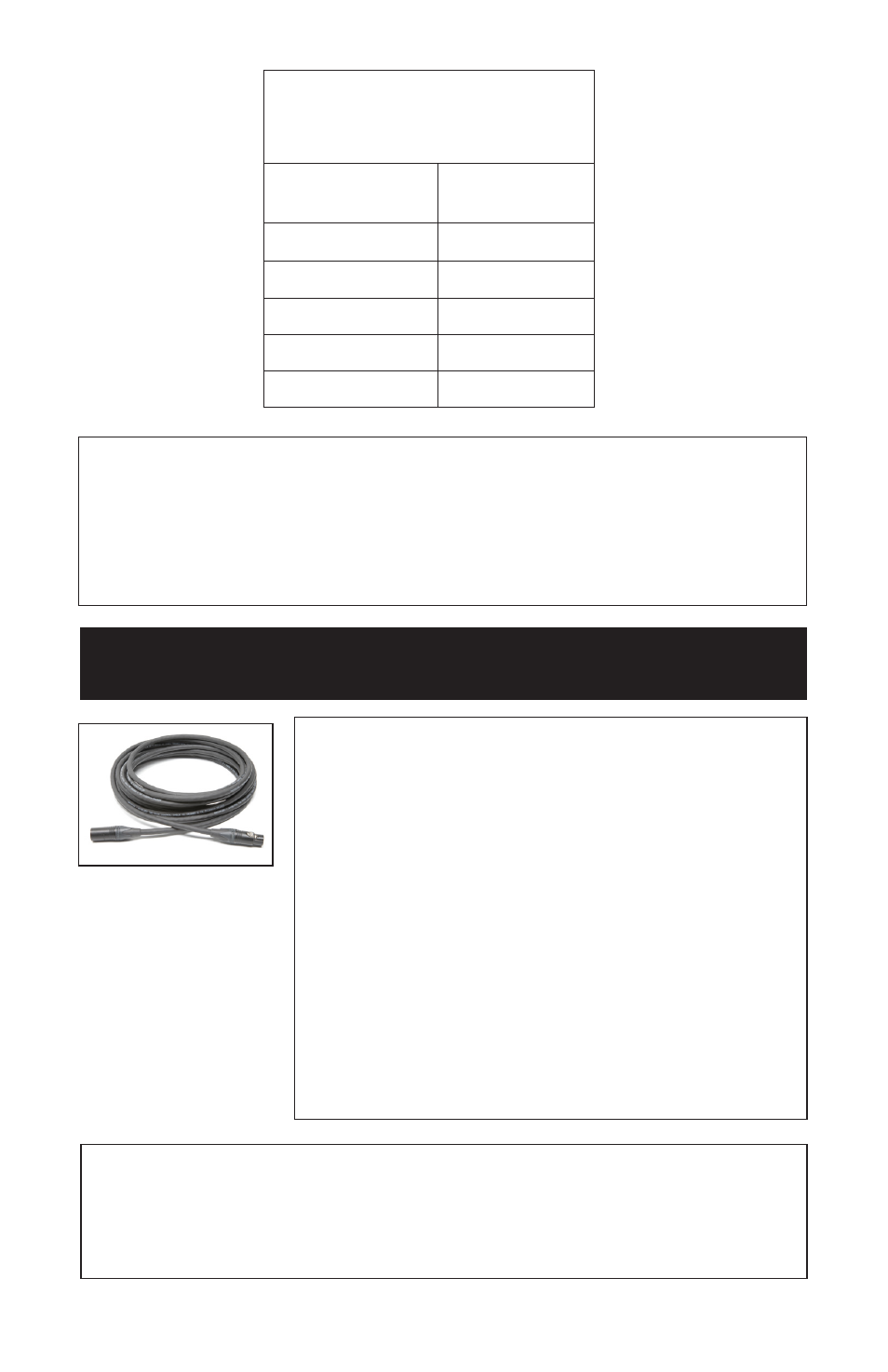

DMX Cables
DMX Cables
The Celeb 400 DMX fixtures use five-pin XLR male and
female connectors to receive DMX signals from the Dimmer
Board and jumper the fixtures in a series. DMX pin-out
wiring follows the USITT DMX512 standard:
Pin 1: Shield
Pin 2: Data –
Pin 3: Date +
Pin 4: Spare –
Pin 5: Spare +
Note: Pin four and five in the fixture are connected internally
as Pin four to four and Pin five to five. Connecting Pin
four and five as the pass-thru allows secondary data to be
passed through other equipment.
Do not use Microphone Cables and other general purpose, two-core cables designed
for audio or signaling use. They are not suitable for DMX512. Problems due to
incorrect cabling may not be immediately apparent. Microphone Cables may appear
to work fine, but systems built with such cables may fail or be prone to random errors.
Cable must comply with EIA-485 (RS485).
Note: The detailed DMX mapping for the Celeb 400 DMX fixture can be downloaded
IMPORTANT!
The dimmer board/light console should have its channel set to LINEAR light output
response. (LINEAR response is the default setting on most dimmer boards.)
