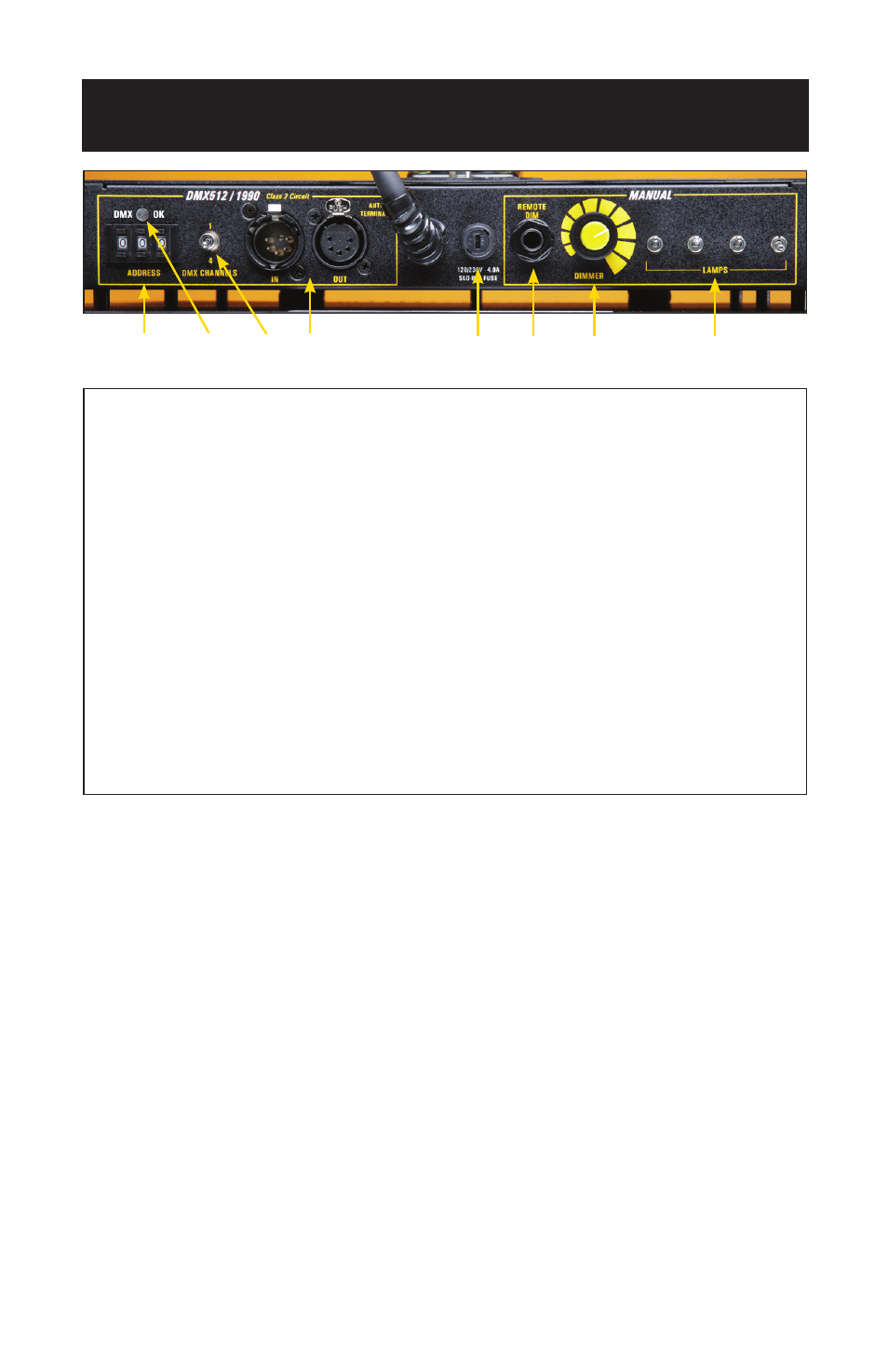

BarFly 450 DMX Control Panel
A) DMX Address: Sets DMX address of fixture.
B) DMX OK: Lights if valid DMX signal is present.
C) DMX Channels: Sets the fixture to use 1 DMX channel to dim all
4 lamps or 4 DMX channels to control lamps individually.
D) DMX-In & DMX-Out: DMX-In receives signals from Dimmer Board.
DMX-Out relays DMX signals through other fixtures or instruments.
Note: Each BarFly 450 fixture has an “AUTO TERMINATE” feature.
The last fixture that does not have an XLR cable attached to the
DMX “Out” port will automatically terminate.
E) Fuse: Provides circuit protection. Note: If fuse is “blown” or “open”,
replace with same type of fuse rating as marked.
F) Remote Dim: Input jack for handheld remote dimmer (DIM-5).
G) Dimmer Knob: Manual dimming control
H) Lamp Switches: Turns individual lamps on manually.
A B C D F H E G
