DMX Operation
DMX Channels

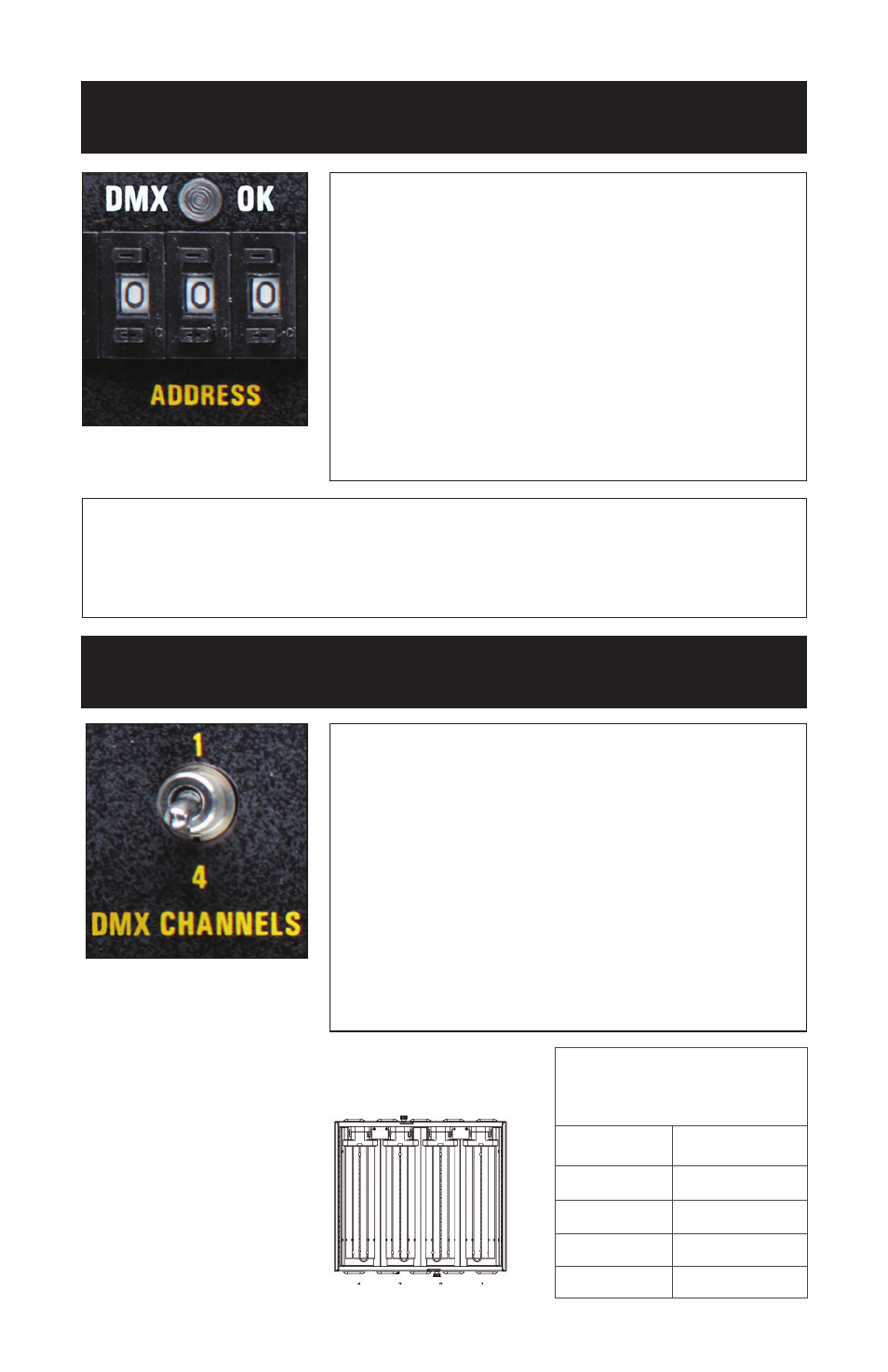

DMX Addressing
Prior to hanging any instruments, set the DMX address
of each fixture.
Push the tabs above or below the number window to
set the address. (Valid addresses range from 001 to
512.) The light above the address block will illuminate
if a DMX signal is present.
Tip: Power is not required to set DMX addresses.
Therefore, DMX addresses can be set for each fixture
prior to hanging.
The BarFly 450 operates on 1 or 4 DMX addresses.
To Control All Lamps: Set fixture to DMX Channel 1
DMX CHANNEL 1 uses one DMX address and
controls/dims all 4 lamps.
To Control Lamps Individually: Set to DMX Channel 4
DMX Channel 4 uses four DMX addresses and
controls/dims 4 lamps individually.
For example, if the base address is set at 001, the
configuration below will provide lamps individually
addressable through DMX512.
IMPORTANT!
The dimmer board/light console should have its channel set to LINEAR light
output response. (LINEAR response is the default setting on most dimmer boards.)
BarFly 450 DMX
Address Sequence
(DMX Channel 4)
Lamp # DMX Address
Lamp 1 1
Lamp 2 2
Lamp 3 3
Lamp 4 4
12
BarFly 450
Lamp Sequence
1 2 3 4
