4

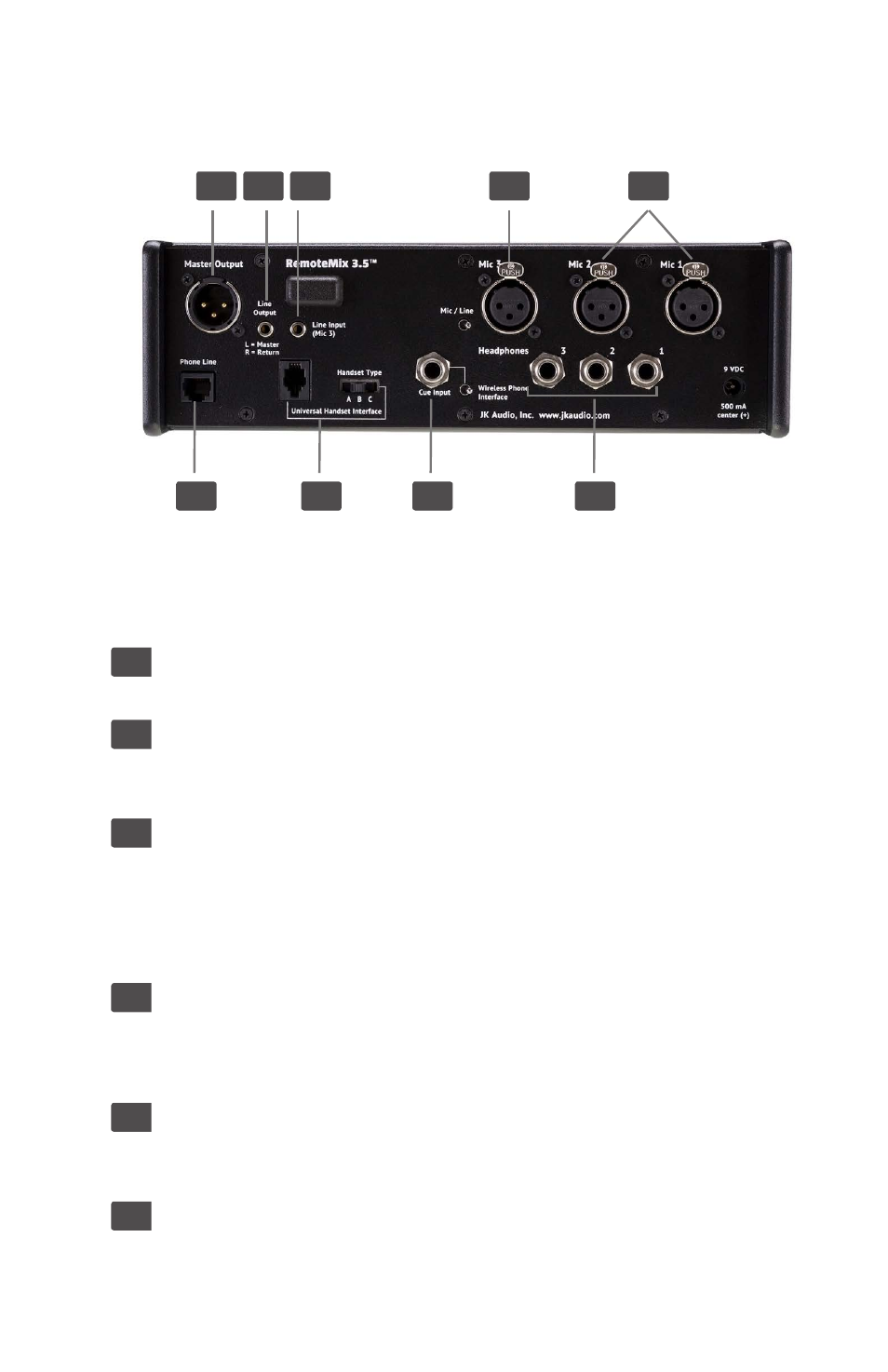

Getting to Know Your RemoteMix 3.5
6 7 8 9
1 2 4 3 5
Inputs & Outputs
1.
Mic Inputs 1 and 2
Balanced XLR jacks with low-noise pre-amplifiers.
2.
Mic Input 3
Balanced XLR jacks with low-noise pre-amplifiers. A selector
switch adds a 40 dB pad for a line level balanced input.
3.
Stereo 3.5 mm Line Level Input
The stereo 3.5 mm line level input can be used instead of or in addition to
the channel 3 XLR input. You can connect either a mono or stereo signal to
this mini jack. If you use a stereo input, both channels will immediately be
summed together. Then the audio from the mini jack and the XLR would be
added together and treated as one mono signal on channel 3
4.
Stereo 3.5mm Line Level Output
Can be connected to your mini disk or other recording device. The
Output> will be on the Left channel and the Receive mix from the phone
line and/or on the Right channel.
5.
The Master Output
A balanced XLR jack that contains the sum of all three input XLRs and the
3.5 mm input. This audio signal has a full 20 Hz to 20 kHz bandwidth.
6.
Headphone Jacks
Headphone output is a mix of local mic and line inputs including the return
from the phone line.
RemoteMix 3.5™ Broadcast Field Mixer
