JK Audio innkeeper 1x/rx User Manual

Page 4

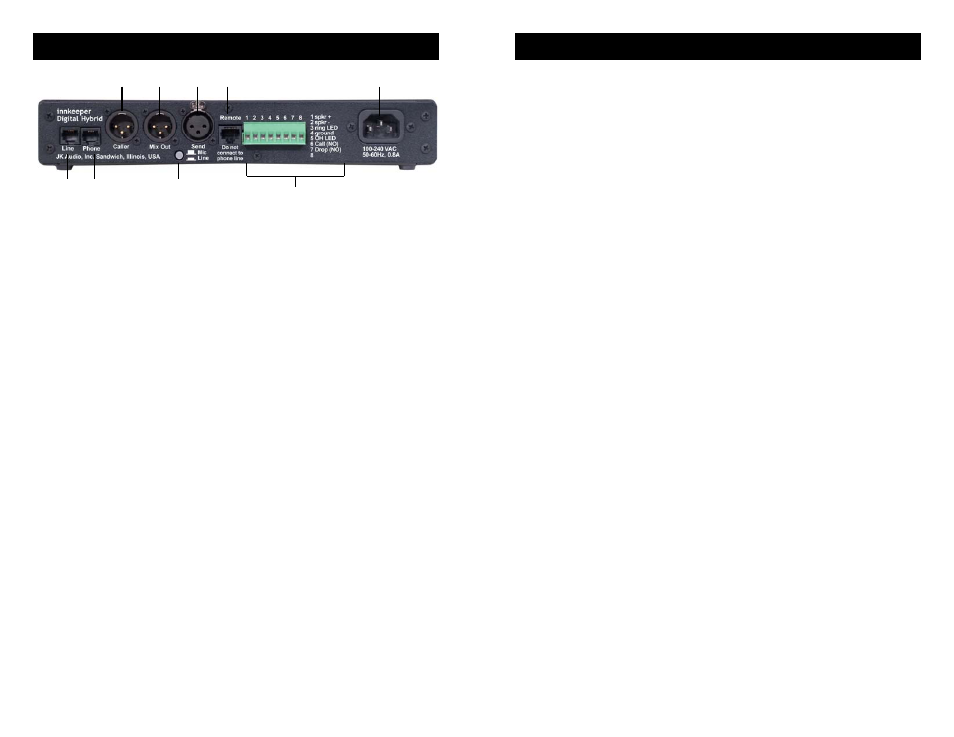

Features—Rear View

17 Caller Output - Male balanced XLR output contains only the

callers voice.

18 Mix Output - Male balanced XLR output contains a mix of send

and receive audio determined by the Send > Mix and Mix < Caller
level controls.

19 Send Input - Female balanced XLR input for signals going into the

phone line. Mic or line level input.

20 Remote Control Jack - 10 pin RJ-50 modular jack for connection

to the RS-232 cable (included), the optional JK Audio RIU-IP re-
mote interface or the optional JK Audio Guest Module 1 Remote
Keypad.

21 AC Power - Universal AC power input for 100-240 Volt, 50-60 Hz

supply current.

22 Phone Line - Connect to a standard, single line, analog telephone

line.

23 Aux. Phone - Connect a single line analog telephone for call setup /

dialing, or producer call screening.

24 Mic / Line switch - Sets the front end sensitivity of the Send XLR

jack. Set to Mic if you intend to plug a dynamic microphone
directly to the Send jack. Set to Line if you are connecting to a mic
mixer. This device does not provide phantom power for a con-
denser type microphone.

25 Remote Terminals - Screw terminals provide connections for a

small speaker, remote LEDs, tape recorder control, or console call
control switches.

17 18 19 20

Inputs

Send:

Balanced Female XLR,1k ohms,

15 mV RMS (-34 dBm nom.)

Mic/Line pad switch, Line = +6 dBu max.

Outputs

Caller:

Balanced Male XLR, 200 ohms,

500 mV RMS, -4 dBu nom, +12 dBu
Max.

Mix Out:

Balanced Male XLR, 200 ohms,

500 mV RMS, -4 dBu nom, +12 dBu
Max.

Headphone:

1/4"

Stereo,

ohms, 250 mW per channel

Speaker:

Screw Terminals, 8 ohms, 1 watt

Remote Jack:

RJ-50

Phone Line Jack:

RJ-11C

Isolation: 1500

VAC

Ringer:

0.5B REN

Frequency Response:

Telephone side 200 Hz - 3600 Hz

Power:

Universal AC supply, 120-240 VAC,

50-60 Hz, 25 watts max.

innkeeper 1x

Size:

1.75" x 7.3" x 10.5" (4.5 x 18.6 x 26.7 cm)

Weight:

4.0

Pounds

innkeeper 1rx

Size:

1.75" x 7.3" x 19" (4.5 x 18.6 x 48.3 cm)

Weight:

5.4

Pounds

Operation (continued)

Specifications
