7
;
;;;
;
;;
;
;;
;;
;
;
;
;
;
;
;;
;;;;
BLACK
RED
+
—
INPUT
;;;
;;;
;;;
;;
BL
AC
K
RE
D
+
—
IN
PU
T
+
–
– +
+
–
+
–
BLACK
RED
+
—
INPUT
Connections
Stereo
Amplifier
or Receiver
Left
Output
Right
Speaker
Right
Output
Check the connections
Make sure that no loose strands of wire touch across terminals. Bridged wires can short
circuit and damage the speakers or components. Tighten any loose connections before
you plug in the receiver or amplifier and turn it on.
Test the connections
To make sure your speakers operate correctly:
1.
Set your receiver or amplifier for MONO (monophonic) and turn it on.
2.
Set the balance control to normal (center position).
3.
Place the speakers less than 6 inches (15 cm) apart, facing each other.
4.
Play some deep bass passages of music through the speakers.
The sound should seem to come from a point between the two speakers. The bass should
be full and natural. If it is not, your connections may be out of phase. To correct the
problem, reverse the connections on the back of one speaker. Then repeat steps 1 - 4.
Left
Speaker

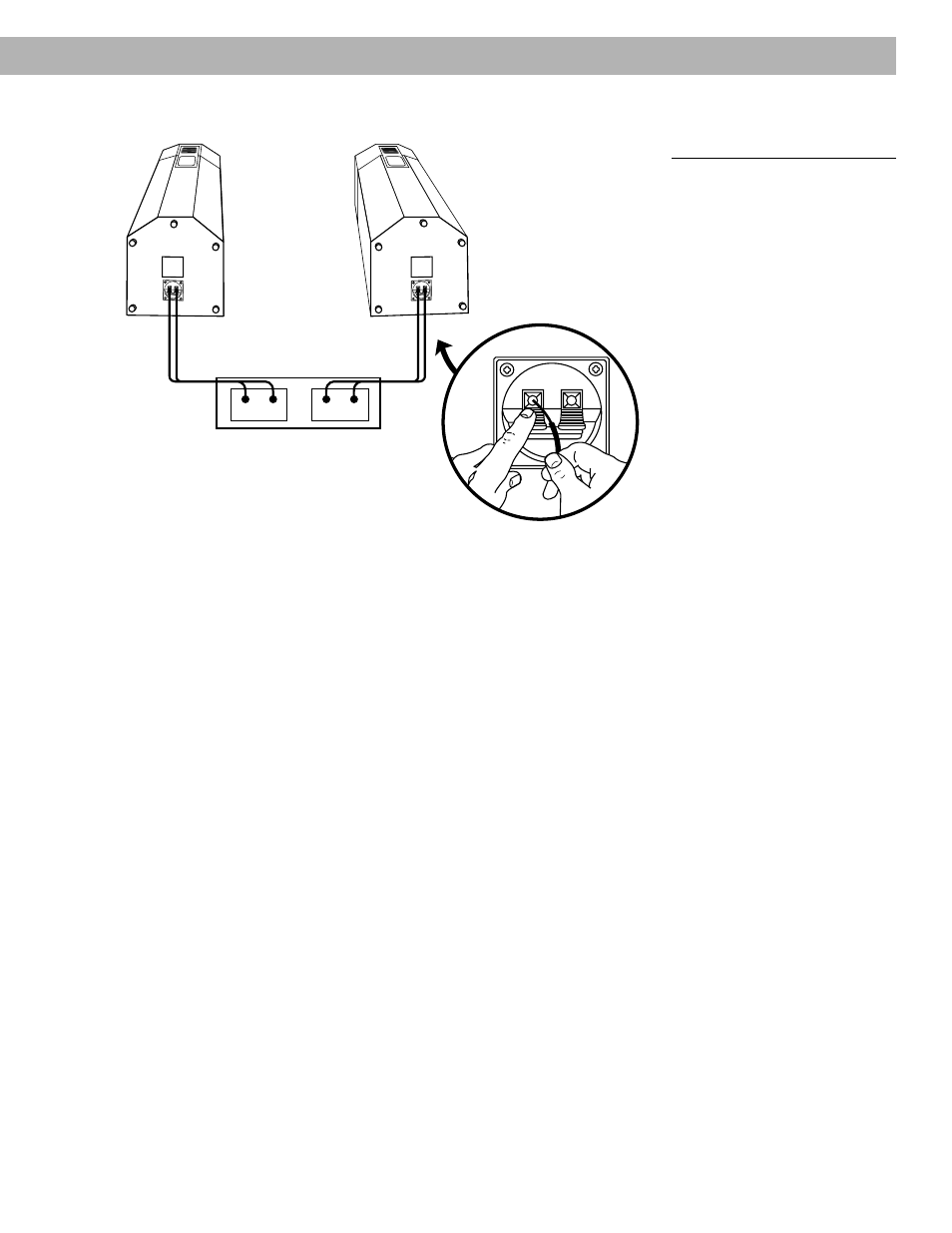

Figure 3
To complete the speaker connec-
tions.
