Page 5-5
640t – Installation and Operating Instructions
m
edia
c
ore
a
dapter

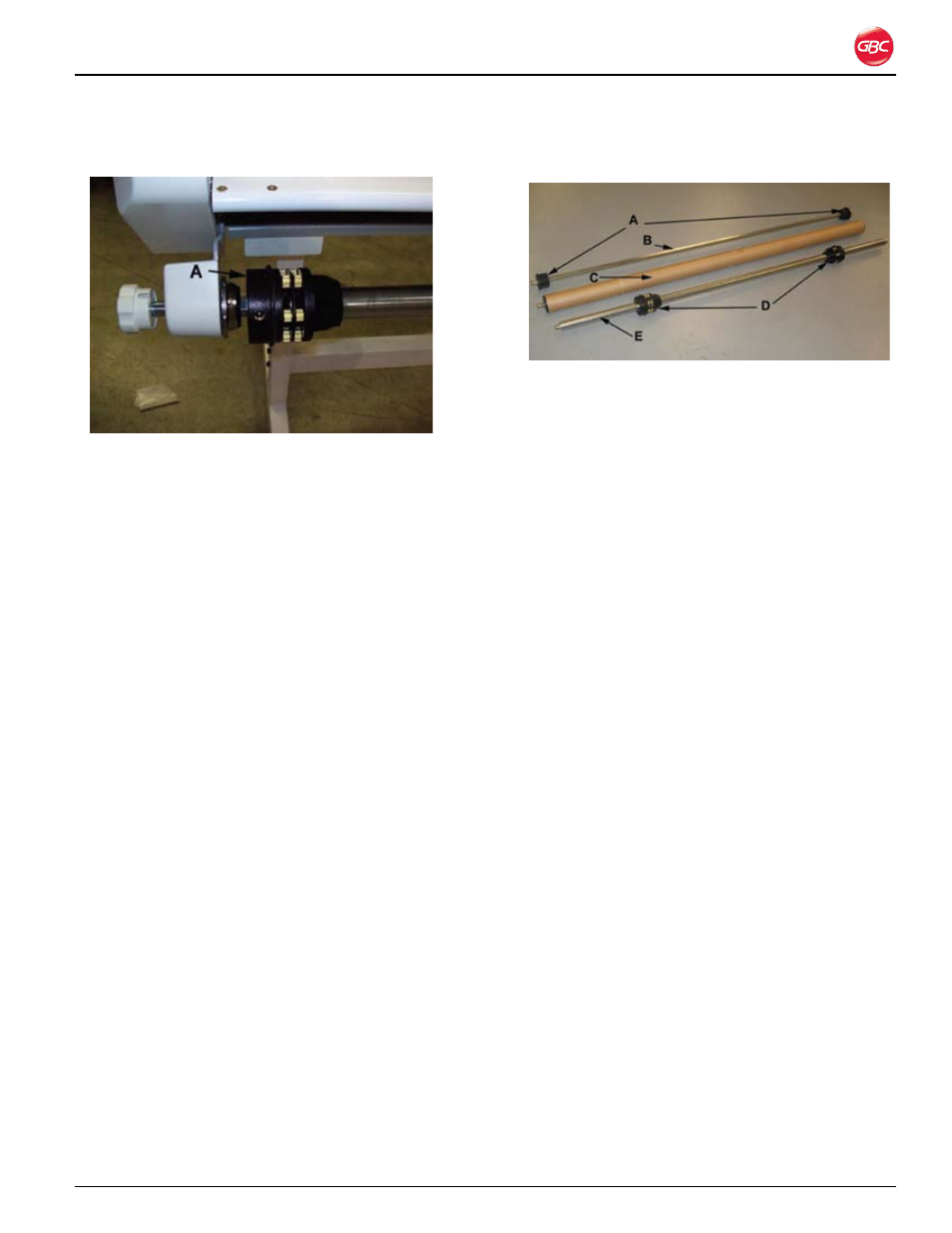

Fig. 5-9. Media Core Adapter.
The Media Core Adapters hold and lock the rolls of
film and release liner on the shafts to prevent side to
side shifting. Grippers on the Core Adapters ensure
proper tension on the film. The Supply Shaft Core
Adaptors lock in place with a set screw. The release
liner take-up Core Adaptors are held in place by
friction.
r
eWinder
Fig. 5-10. Rewinder Components.
a. r
eWinder
c
ore
a
dapters
The Rewinder Core Adapters are held in place
using friction. They adapt to the provided 2-1/4 inch
cardboard tube and most media tubes.
B. r
eWinder
s
haft
The Rewinder Shaft supports the Rewinder Core
Chucks and tube.
c. r
eWinder
c
ardBoard
t
uBe
The Rewinder Cardboard tube carries the release
liner and media.
d. c
ore
a
daptors
The Core Adaptors hold film and media.
e. u
nWind
/s
upply
s
haft
The Unwind/Supply Shaft holds film and media.
