640t – Installation and Operating Instructions
Page 5-4
t
ension
c
ontrols

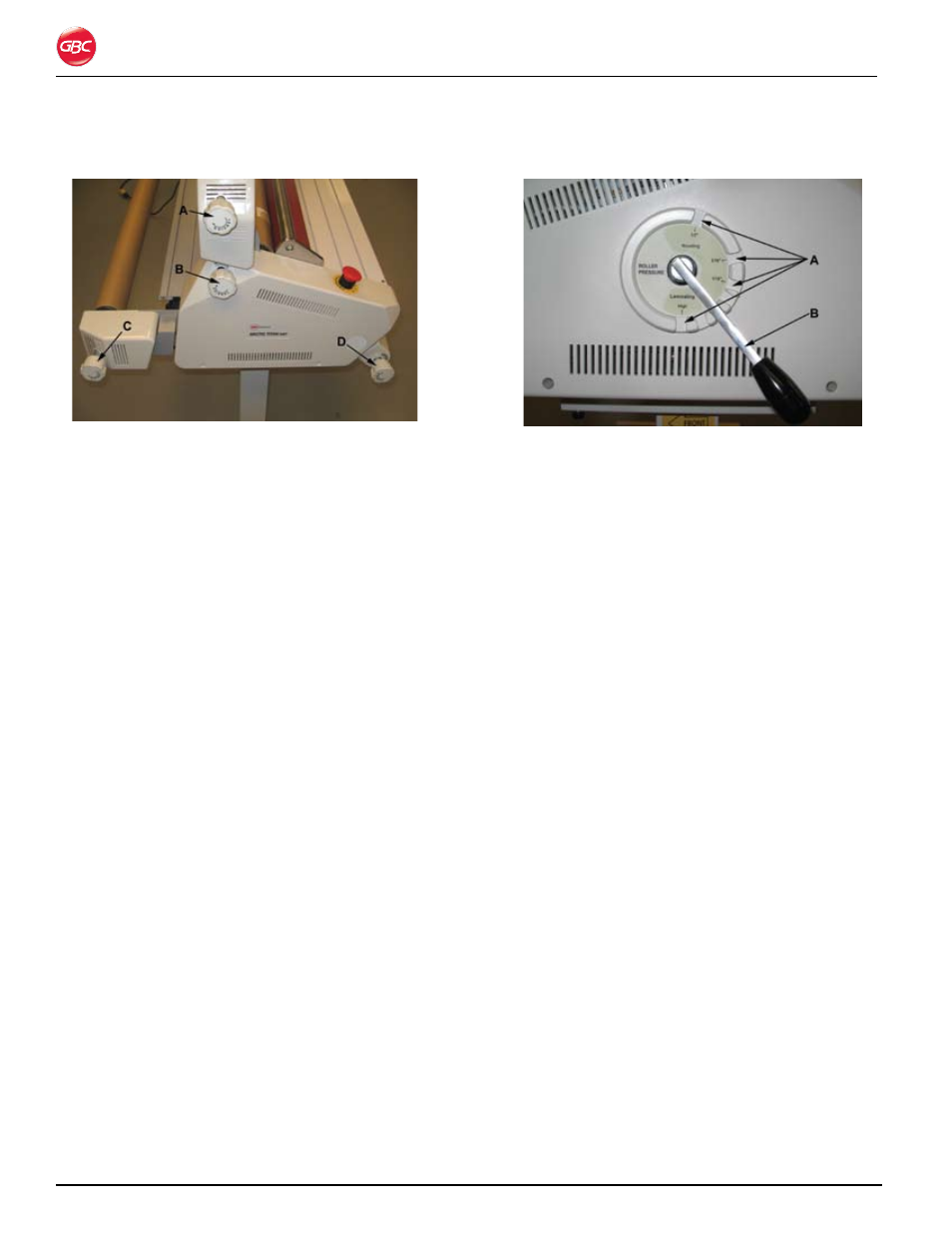

Fig. 5-7. Tension Knobs and Brakes
a. r
elease
l
iner
t
ension
k
noB
Use the Release Liner Tension Knob to increase and
decrease the amount of Pull that is being applied
to the release liner. This prevents the release liner
from being pulled into the laminator or the film from
wrapping around the rewind tube.
B. u
pper
f
ilm
t
ension
k
noB
and
B
rake
The Upper Film Tension Knob and Brake allows the
operator to increase or decrease the film web tension
as needed to reduce curl and wrinkles.
c. m
edia
r
eWinder
t
ension
k
noB
The Media Rewinder Tension Knob allows the
operator to adjust the amount of pull on the finished
media.
d. l
oWer
f
ilm
t
ension
k
noB
and
B
rake
The Lower Film Tension Knob and Brake allows the
operator to increase or decrease the film or media
web tension as needed to reduce curl and wrinkles.
r
oller
p
ressure
h
andle
Fig. 5-8. Roller Pressure Handle.
a. m
ounting
& l
aminating
p
resets
Mounting and Laminating Presets are located on
the side cover. The decal describes the gap and
downward pressure.
B. r
oller
p
ressure
h
andle
The Roller Pressure Handle adjusts the amount of
roller pressure needed for various laminating and
mounting applications. Pull the handle away from the
laminator, rotate it to the desired pressure, and press
it into the desired slot. Three main function settings
are provided.
IMPORTANT: Use a pressure setting that is
appropriate for the material you are laminating or
mounting.
Release – Provides the widest opening of 1/2 in. (1.6
to 12.7 mm) between the pressure rollers and takes
pressure off the rollers. This is used when installing
new rolls of film. When the machine is not in use, put
the handle in this position.
Mounting – Used when bonding to a rigid substrate
such as mounting boards. Thickness range is 1/16 to
1/2 in. (1.6 to 12.7 mm).
Laminating – Used to adhere materials in multiple
substrates. The two positions are low (right) and high
(left) pressure.
