5
EN
Be sure you choose a receiver that uses JST: ZHR-3 micro
connectors. We recommend the Spektrum™ AR6310 DSMX
Nanolite 6-Channel Receiver (SPMAR6310).

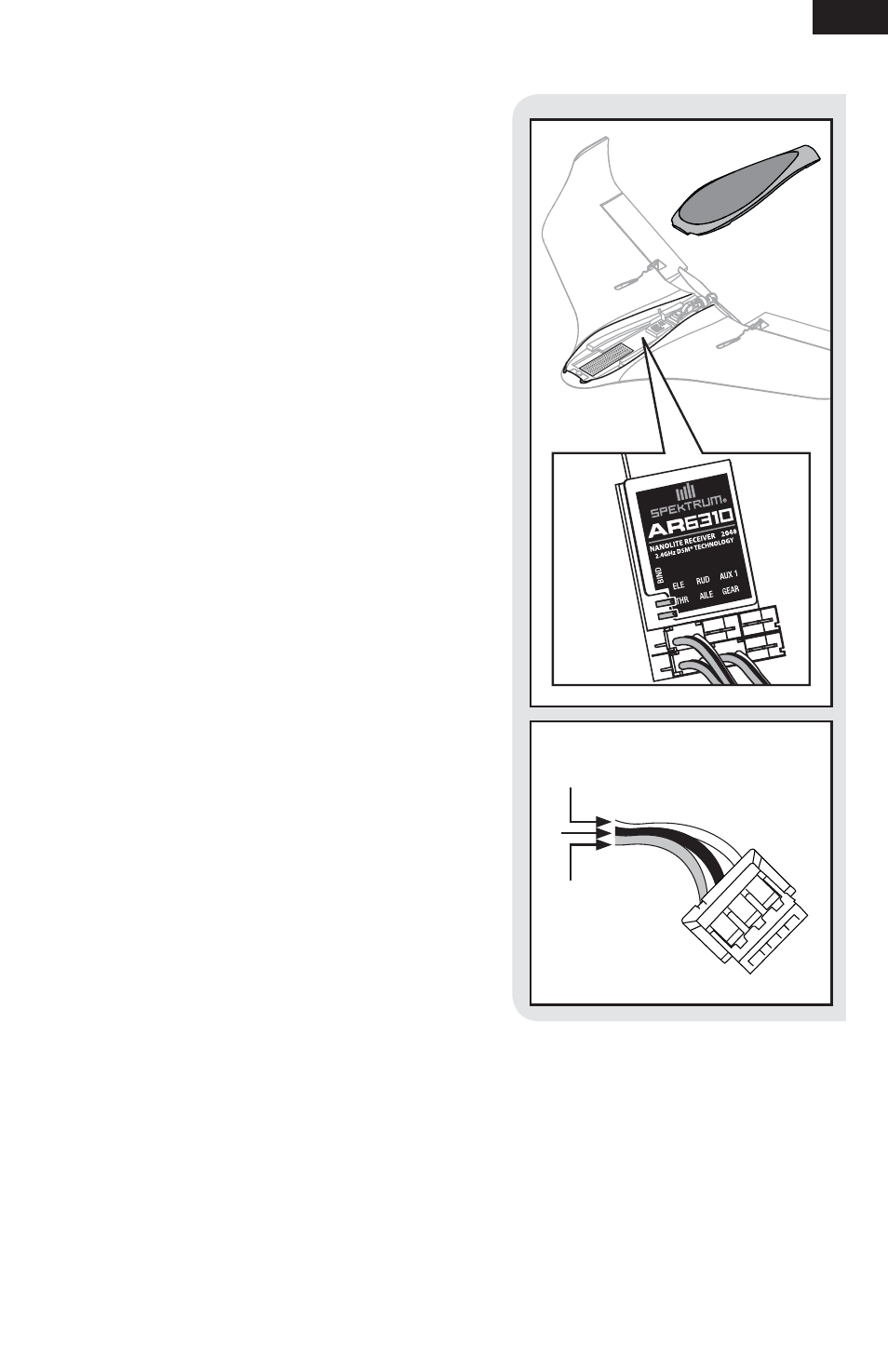

1. Remove the canopy.
2. Install the receiver in the fuselage using the included
double-sided servo tape.
3. Connect the left elevon (when facing the rear of the
aircraft) servo connector to the elevator channel of the
receiver.
4. Connect the right elevon (when facing the rear of the
aircraft) servo connector to the aileron channel of the
receiver.
5. Connect the ESC connector to the throttle channel of
the receiver.
Some JST-type servos have a different polarity than Spektrum
servos. Plug the servo leads into the appropriate servo ports
in the receiver noting the polarity of the servo connector. See
illustration for correct connector polarity.
• (A) Orange Wire: Signal
• (B) Brown Wire (middle wire): Negative
• (C) Red Wire: Positive
Transmitter and Receiver Binding
Refer to your transmitter and receiver manuals for binding
instructions.
Installing a Receiver
A
C
B
