Service of Power Components
Disassembly
CAUTION: Always disconnect the battery
before handling or adjusting the propeller
or motor. Failure to do so could result in
personal injury.

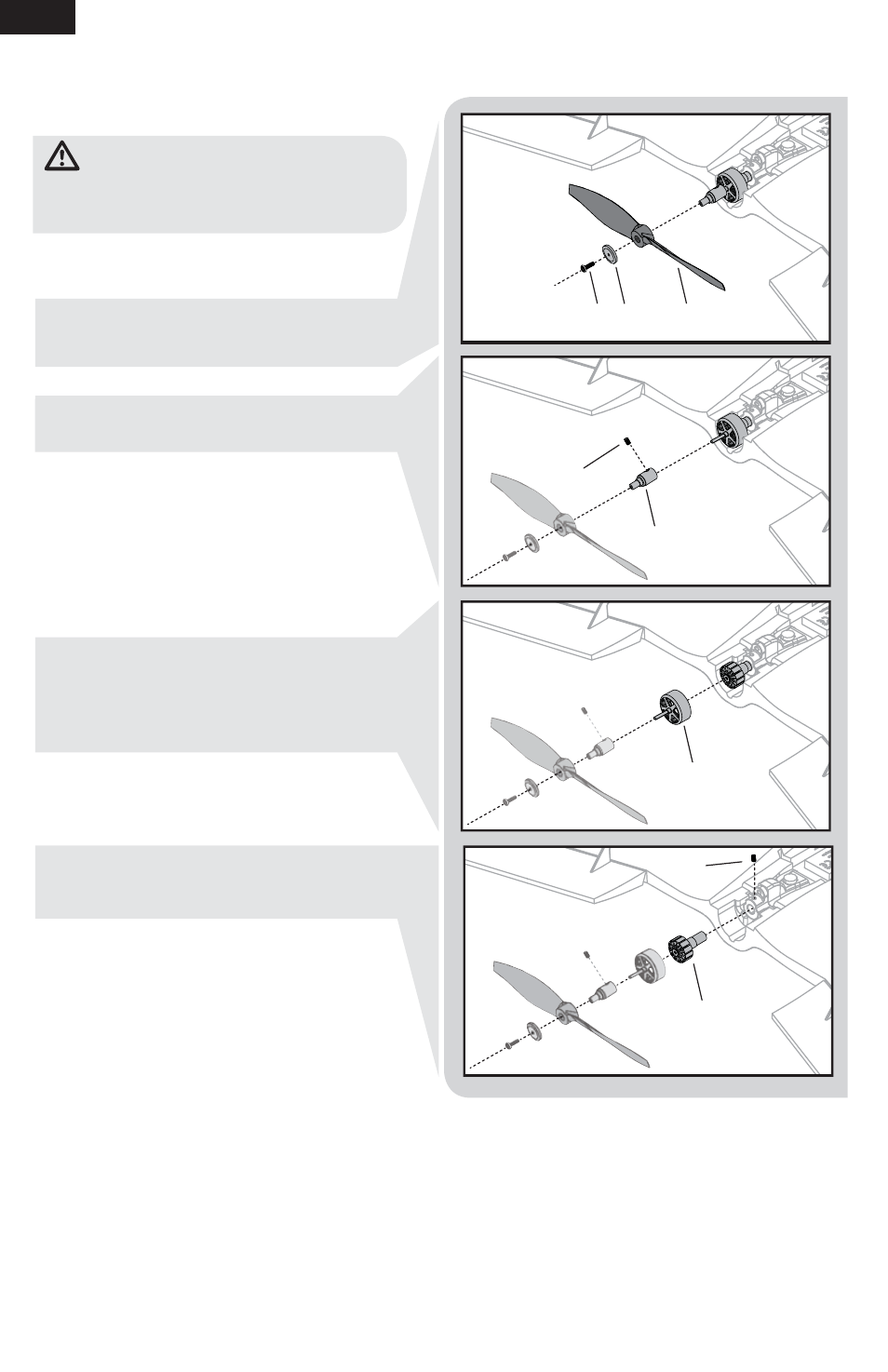

1. Remove the canopy.
2. Carefully remove the propeller screw (A),
washer (B) and propeller (C).
3. Remove the propeller spacer setscrew (D) and
propeller spacer (E) from the motor shaft.
4. The motor housing and shaft (F) are
magnetically secured to the motor. Remove the
motor housing and shaft by pulling them away
from the motor. Repair or replace the motor
housing and shaft as necessary.
5. Remove the top screw (G) from the firewall to
remove the motor (H). The motor magnet may
attract screws to the motor.
6. Disconnect the motor wire connectors from
the ESC.
7. Remove the motor from the firewall.
Assemble in reverse order.
• Connect the motor wire connectors to the ESC so
that the propeller turns clockwise (facing the rear
of the aircraft). If the motor turns in the wrong
direction, switch any 2 motor wires.
• The propeller size numbers (4.5 x 4) must face
forward towards the front of the aircraft for
correct propeller operation.
