Installation/feedwater parameters, Dimensions - weights, Power – Watts PWBWIRON User Manual
Page 2
Installation/Feedwater Parameters
Location: Indoors (Protect from direct sunlight)
Minimum inlet pressure: 30 psig
Maximum operating pressure: 80 psig
Minimum water temperature: 34°F (1°C)
Maximum water temperature: 110°F (43°C)
pH Range 6.0-9.0
Iron Concentration Maximum 10 PPM
Manganese Concentration Maximum 5 PPM
Hydrogen Sulfide Concentration Maximum 3 PPM
C
A
B
D
E

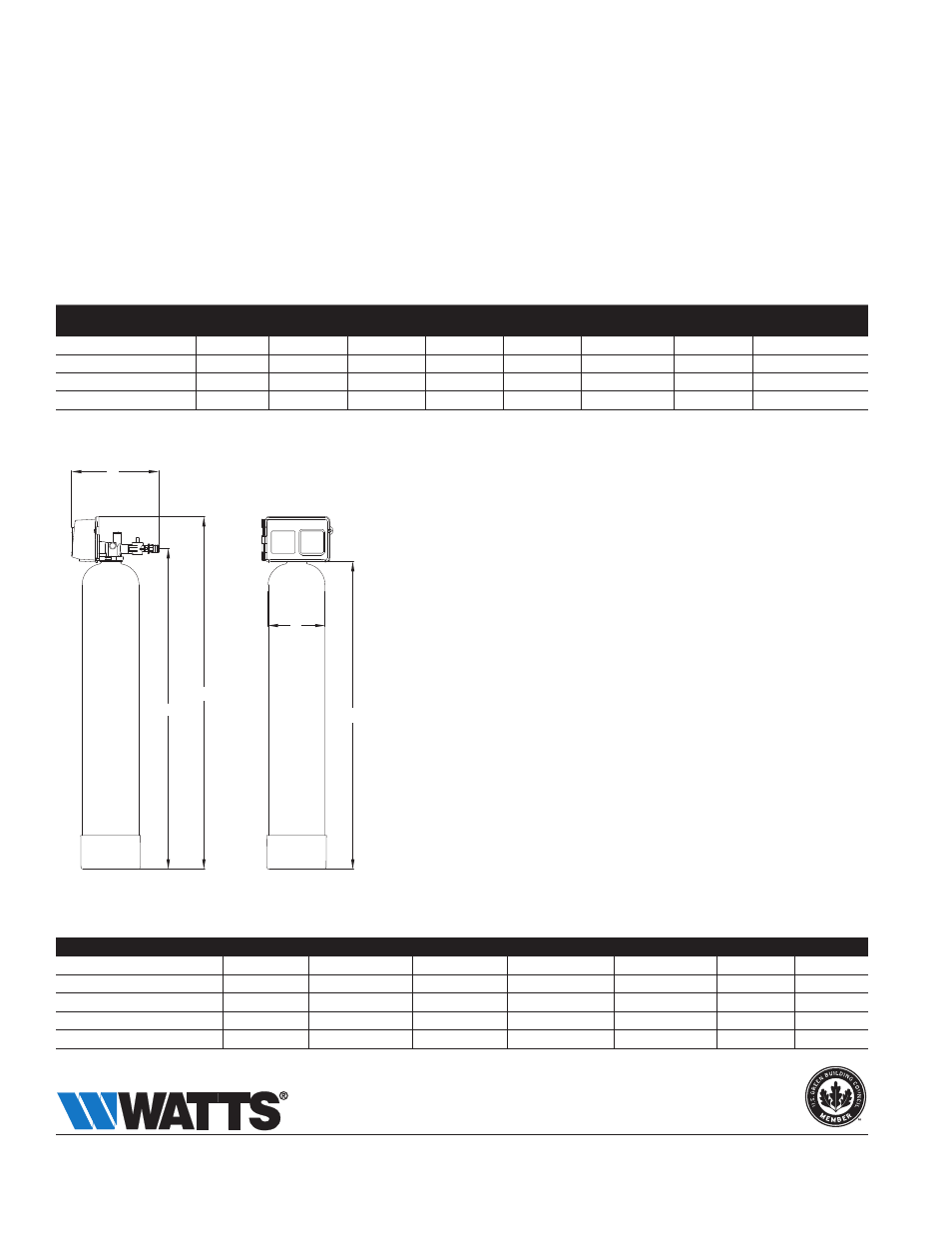

Dimensions - Weights
ES-WQ-PWBWIRON 1225
© 2012 Watts
USA: Tel. (800) 224-1299 • www.watts.com
Canada: Tel. (888) 208-8927 • www.watts.ca
A Watts Water Technologies Company
MoDEl
VAlVE
MINERAl TANK
MEDIA CUBIC
GARNET No.12
SERVICE FloW
PRESSURE DRoP
BACK WASH
FlooR SPACE
SIzE
FooT
(lBS)
(GPM)
(PSI)
(GPM)
(l X W X H)
PWBWIRON1
Time Clock
9" x 48"
1
14
6
<15
7
16" x 15" x 55"
PWBWIRON15
Time Clock
10" x 54"
1.5
14
9
<15
8
16" x 15" x 62"
PWBWIRON2
Time Clock
12" x 52"
2
42
12
<25
12
17" x 15" x 60"
PWBWIRON3
Time Clock
13" x 65"
3
56
18
<25
15
18" x 15" x 74"
PART No.
TANK
IN
oUT
oVERAll HEIGHT
oVERAll DEPTH
SHIPPING WEIGHT
(A&B)
(E)
(E)
(C)
(D)
lbs.
kgs.
PWBWIRON1
9" x 48"
51"
51"
57"
16"
150
68
PWBWIRON15
10" x 54"
57"
57"
63"
16"
207
94
PWBWIRON2
12" x 52"
56"
56"
61"
16"
295
134
PWBWIRON3
13" x 65"
67"
67"
73"
16"
493
224
Power
Voltage: 120VAC
Frequency: 60Hz
Note: Peak service flow rate is for intermittent use only and is not to be interpreted as continuous service flow rate capability. These
systems are designed to treat the domestic water used in a single family dwelling. For irrigation water treatment or higher volume
applications please contact your Watts representative.
