Dimensions and weights – Watts PWBWMZ 3 Cu. Ft. User Manual
Page 2
MODEL NO.
VaLVE
MiNEraL TaNk
SizE
MEDia CubiC FOOT
GraVEL
(LbS)
SErViCE FLOw
(GPM)
PrESSurE DrOP
(PSi)
baCk waSh (GPM)
FLOOr SPaCE
LXwXh
PWBWMZ1
Time Clock
9" X 48"
1
10
9
15
7
16" X 10" X 55"
PWBWMZ15
Time Clock
10" X 54"
1.5
10
10
15
9
16" X 11" X 62"
PWBWMZ2
Time Clock
12" X 52"
2
30
10
15
12
17" X 13" X 60"
PWBWMZ3
Time Clock
13" X 65"
3
40
15
15
15
18" X 14" X 74"
b
a
D
C
E

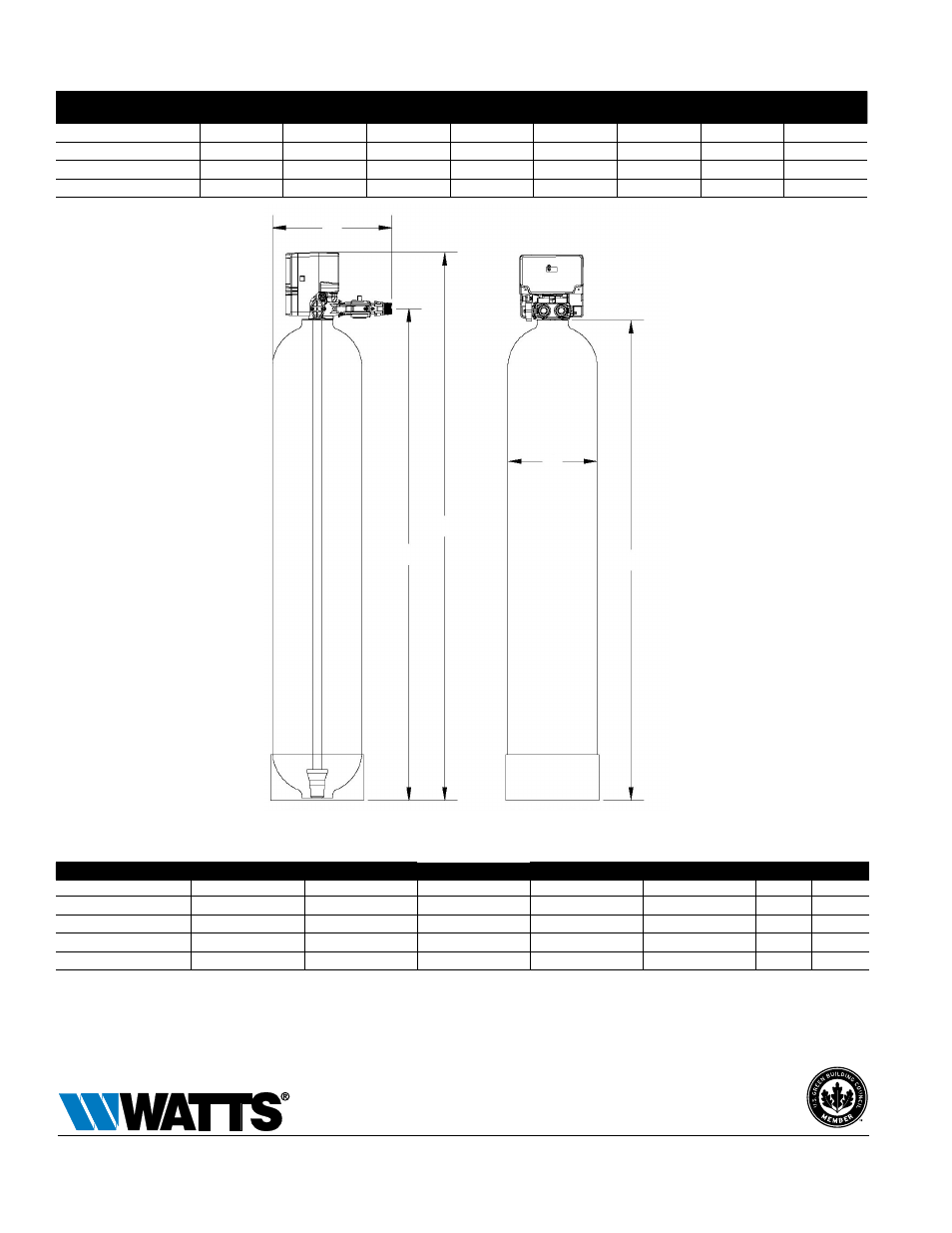

Side View
Back View
Dimensions and Weights
MODEL NO.
TaNk
iN
OuT
OVEraLL hEiGhT
OVEraLL DEPTh
ShiPPiNG wEiGhT
a & b
E
E
C
D
lbs.
kgs.
PWBWMZ1
9" X 48"
50"
50"
56"
14"
98
44
PWBWMZ15
10" X 54"
56"
56"
63"
14"
129
59
PWBWMZ2
12" X 52"
54"
54"
61"
15"
179
81
PWBWMZ3
13" X 65"
67"
67"
73"
15"
253
115
