To Install The Replacement Pump & Brush Belts-Continued

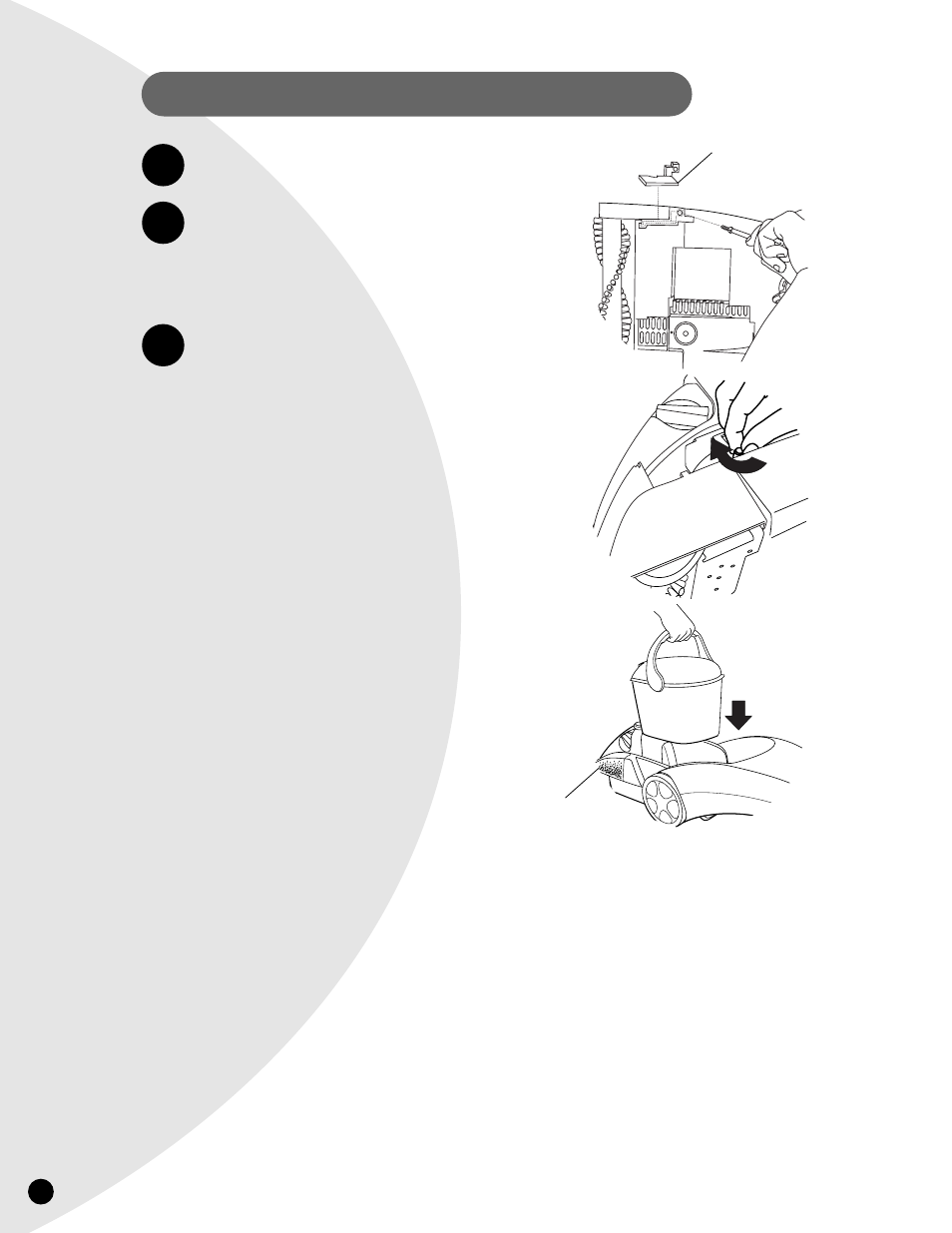

Re-install the red Retainer Plate and Phillips head screw
(see illustration).
Using your finger, gently spin the replacement Pump Belt
on the silver motor shaft (see illustration). If assembled
correctly, the replacement Pump Belt should rotate freely
around the silver motor shaft and drive pulley without
obstruction. The Brush should also rotate freely when the
silver motor shaft is turned.
Turn the machine right side up. Replace the Tank-in-Tank
and Belt Access Door (see illustration).
Assembly is now complete.
If you have any questions, or if you have any trouble
installing your replacement Pump Belt, please call BISSELL
Consumer Services at 1-800-237-7691.
Or visit the BISSELL website
: www.bissell.com
5.
6.
7.
5
6
7
Red Retainer
Plate
Belt Access
Door
