14

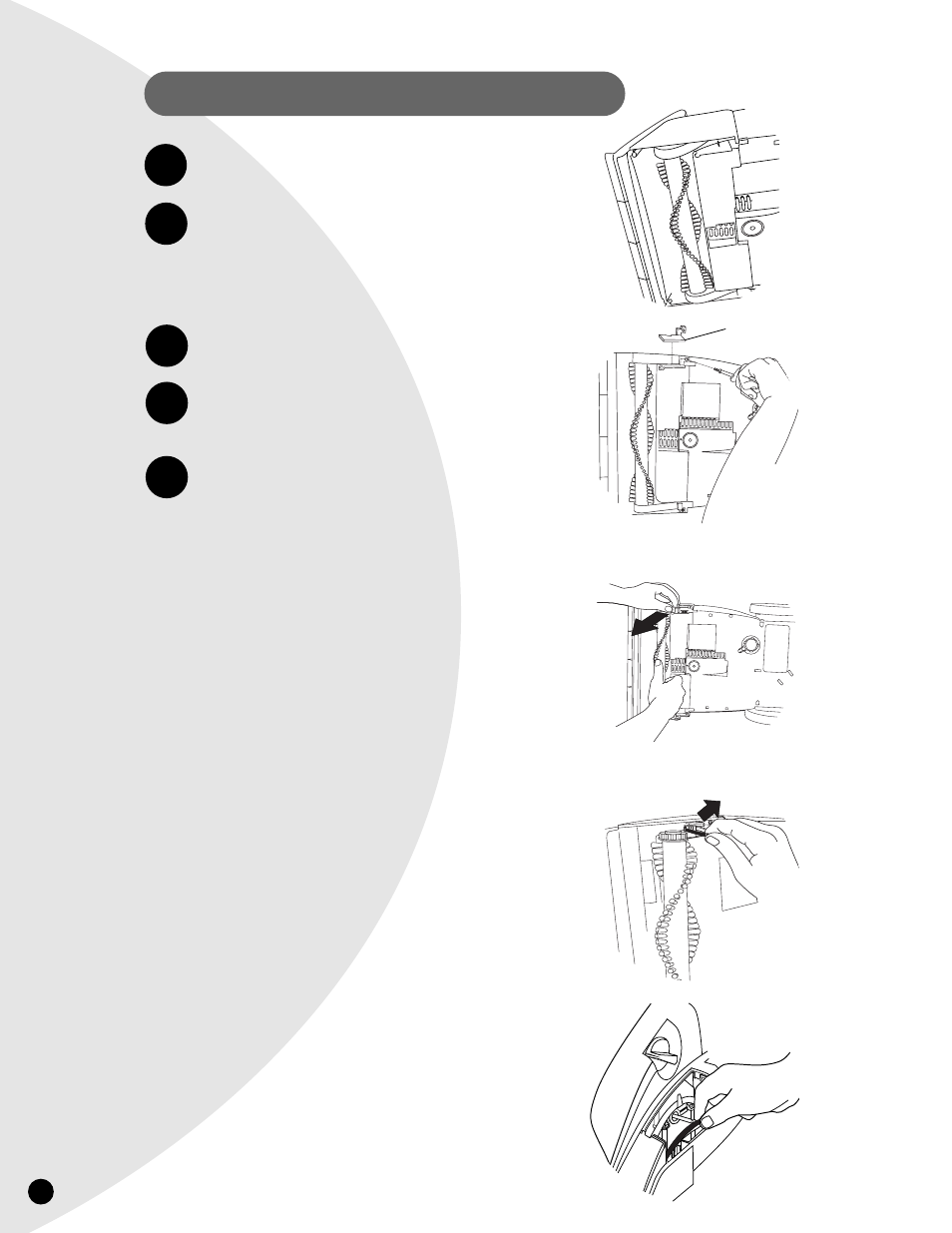

To Remove Broken Pump & Brush Belts-Continued
Turn the machine onto its side so the belt access area is
facing upward (see illustration).
On the bottom of the machine, near the belt access area, is
a red Retainer Plate that holds the black brush arm and
brush in place. Using a Phillips head screwdriver remove
the screw that holds the red Retainer Plate in place. Set red
Retainer Plate and Phillips head screw aside
(see illustration).
Remove the black brush arm that holds the brush in place.
Set the black brush arm aside (see illustration).
Remove the "toothed" Brush Belt from the Brush, then from
the red Pump Pulley. Set the "toothed" Brush Belt and
Brush aside.
Locate and remove the broken Pump Belt.
4.
5
6.
7.
8.
5
4
6
7
8
Red Retainer
Plate
