Blodgett BC14E - Manual (Page 2)

BC-CCNE
SHORT FORM SPECIFICATIONS
Provide Blodgett Combi standard model BC-CCNE consisting of one combination-oven/steamer and one convection oven section in a stacked configuration. Combi oven section shall
have the ability to cook with pressureless steam, hot air, or combination of steam and hot air and have a steam-on-demand feature. Convection oven section shall have the ability to cook
with hot air. The interior of each section shall have the capability of being hosed down for cleaning. Each section shall have a rapid cool down mode. Each section shall be open vented
for waste-air quenching. Combi oven section sshall have a steam generator separate from the cooking compartment. Combi oven section shall have a steam generator which will drain
and flush automatically. Provide start-up inpsection service by a factory authorized service agent.
DIMENSIONS:
Floor space: 34-5/8" D x 40-1/8"W (879.4 x 1019.2mm)
Unit Height:
Per section
33" (838mm)
Total 66" (1676.4mm)
Additional Height:
Low profile casters
4" (101.6mm)
6" adjustable legs 6-7/8" - 8" (174.6-203.2mm)
6" adjustable seismic legs 6-5/8" - 8" (168.3-203.2mm)
OVEN CLEARANCES:
Right Side 1" (25.4mm)
Rear 6" (152.4mm)
Left Side 4" (101.6mm) with casters
12" (304.9mm) without casters
MINIMUM ENTRY CLEARANCE:
Uncrated 33" (838mm)
Crated 42" (1066.8mm)
SHIPPING INFORMATION:
Approx. Weight:
Both sections
1105 lbs (501kg)
Crate size per section:
53" H x 45" W x 42" D (1346.2 x 1143 x 1066.8mm)
POWER SUPPLY (per section):
60 Hz Domestic
208VAC
18.0KW 1 phase (87 amp) or 3 phase (50 amp)
240VAC 19.6KW 1 phase (82 amp) or 3 phase (43 amp)
480VAC 18.0KW 3 phase (22 amp)
50 Hz International
380/220VAC
16.5KW 3 phase (25 amp)
415/240VAC 19.6KW 3 phase (27 amp)
400/230VAC 18.0KW 3 phase (26 amp)
WATER SUPPLY:
Minimum Water Quality - not to exceed 30 parts per million of dissolved
solids. PH should be 7.0 or higher.
BC14E:
40(min)-50(max) PSI
3/4" hose hot (if available) and cold water
2" drain connection Potable water only 122°F (50°C) avg. temperature
CNV14E:
2" drain connection
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions of
components without prior notice
APPROVAL/STAMP
P/N R10164 Rev C (9/05)
BLODGETT COMBI
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401 • Phone: (802) 658-6600 • Fax: (802) 864-0183

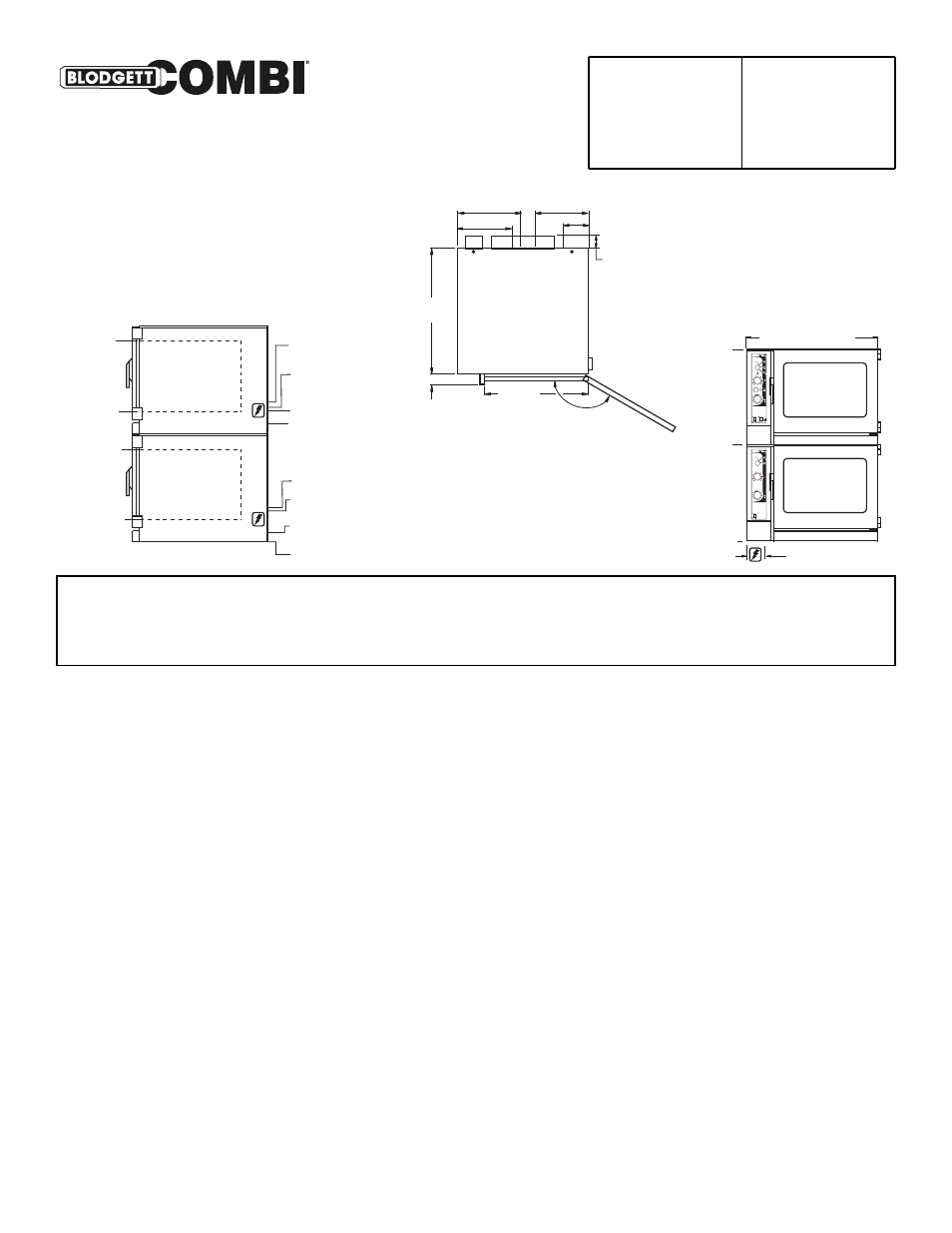

15-3/4” (400MM) 2” DRAIN
17” (431.8MM) COLD WATER FILL SOLENOID
7” (177.8MM)
34-5/8”
(879MM)
31-3/4”
(806MM) 180°
13” (330MM) - 3/8” ID DRIP PAN DRAIN (9.5MM)
20-3/8” (517.6MM) HOT/COLD WATER SOLENOID
COLD WATER SOLENOID (TOP OVEN ONLY)
2” (150.8MM)
4” (101.6MM) ELEC ENTRANCE
41-1/8” (1044.6MM)
0” (0MM)
33” (838MM)
66” (1676.4MM)
28-1/16”
(712.8MM)
8-1/16”
(204.8MM)
TOP RACK
BOTTOM RACK 2-7/8” (73MM)
DRIP PAN DRAIN
0” (0MM)
3-1/2” (88.9MM)
ELEC ENTRANCE
TOP RACK
BOTTOM RACK
61-1/16”
(1551MM)
41-1/16”
(1043MM)
40-1/8” (1019.2MM)
SOLENOIDS
35-7/8” (911.2MM)
DRIP PAN DRAIN
36-1/2” (927MM)
ELEC ENTRANCE
37-1/2” (953MM) DRAIN
4-1/2” (114.3MM) DRAIN
