Figure 4, Suppressor – connection capillaries – Metrohm 930 Compact IC Flex Oven/ChS/Deg User Manual
Page 29
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4 Installation
930 Compact IC Flex Oven/ChS/Deg (2.930.2260)
￭￭￭￭￭￭￭￭
21
Figure 4

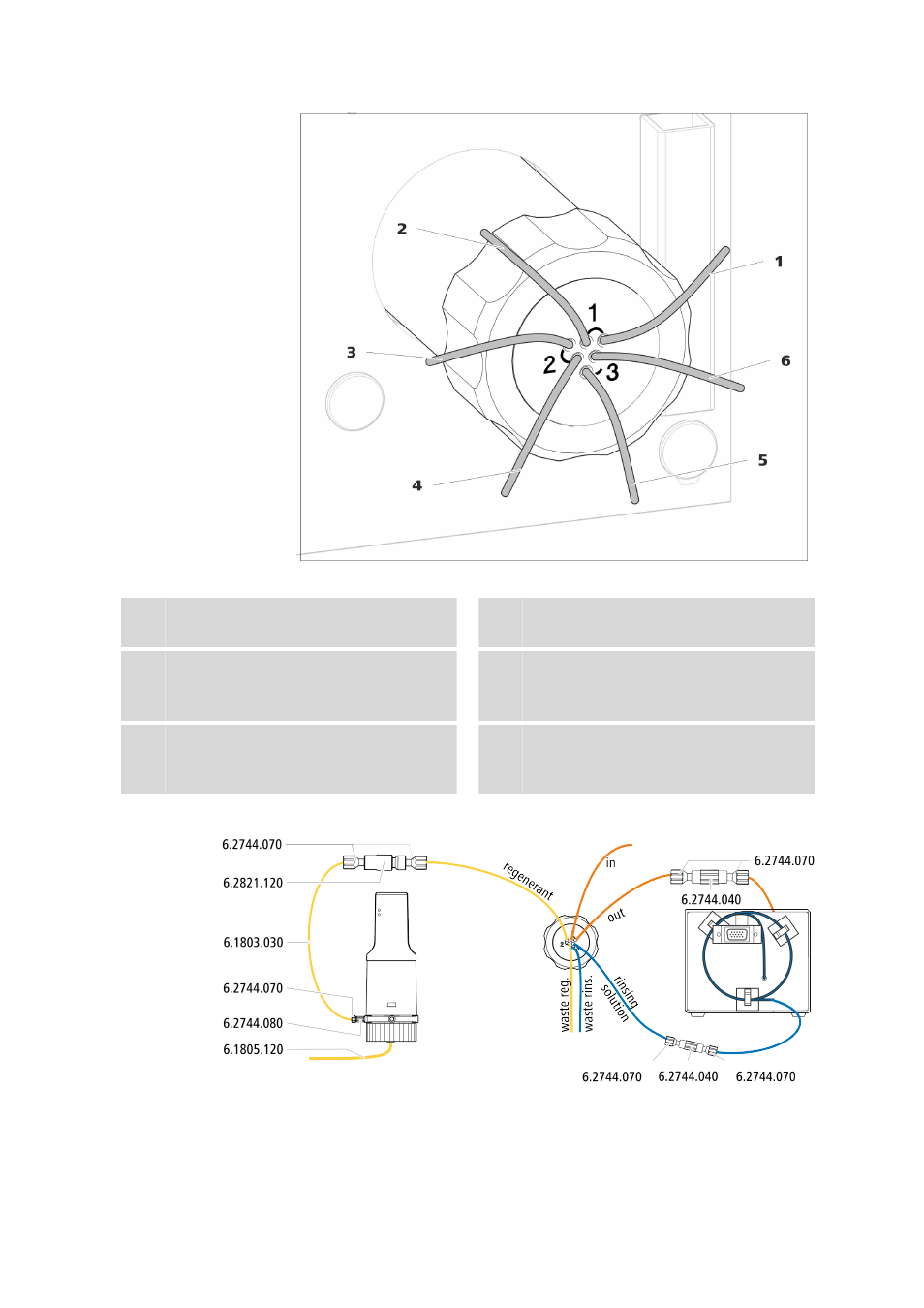

Suppressor – connection capillaries
1
out
Output capillary for the eluent.
2
in
Input capillary for the eluent.
3
regenerant
Input capillary for the regeneration solution.
4
waste reg.
Output capillary for the regeneration solu-
tion; to the waste container.
5
waste rins.
Output capillary for the rinsing solution; to
the waste container.
6
rinsing solution
Input capillary for the rinsing solution.
Recommended installation
