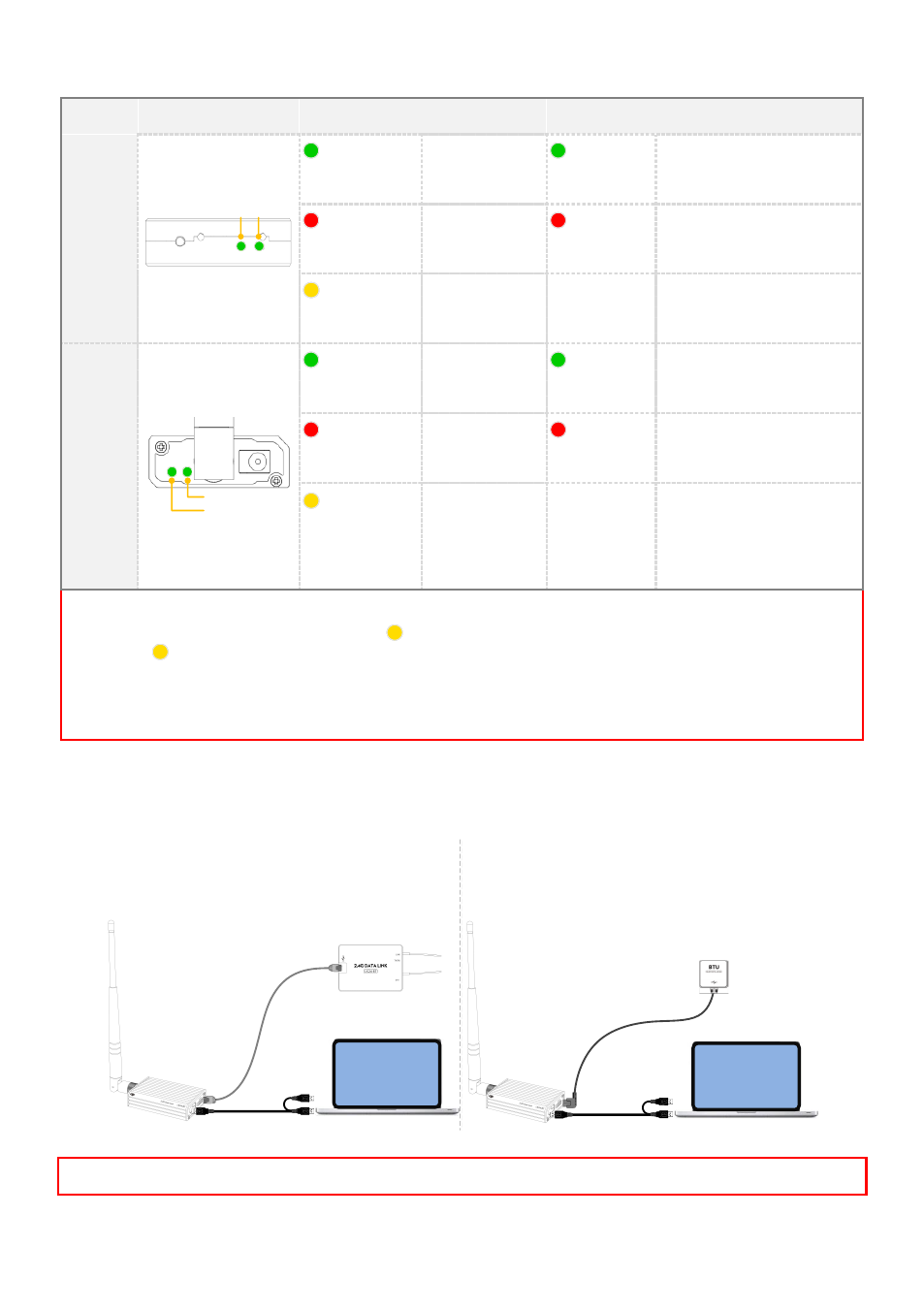

1.4 LED Indicator descriptions
The LED Indicators of the 2.4G Bluetooth Datalink will work after power on, the descriptions are shown below.
LED TX/RX LINK
The Air
end
LINK TX/RX
Green blinks Sending Solid Green The Air end links with the
Ground end successfully
Red blinks Receiving Solid Red The Air end delinks with the
Ground end
Yellow blinks Searching the
Main controller
The
Ground
end TX/RX
LINK
Green blinks Sending Solid Green The Air end links with the
Ground end successfully
Red blinks Receiving Solid Red The Air end delinks with the
Ground end
Yellow blinks Power voltage of
the Ground end
is less than 9.9V
Notes :
(1)
LED Indicators on both ends will blink when powering on, then the TX/RX indicator of the Air end will
blink when searching the Main controller.
(2) The LED Indicators of LINK on both ends should be solid green to indicate that the two ends have linked
successfully.
(3) It’s recommended to check the power voltage of the Ground end regularly when using batteries for
power supply, in order to avoid over-discharging.
1.5 Upgrade
Use the 2.4G Bluetooth Datalink Assistant software to upgrade the 2.4G Bluetooth Datalink and BTU module.
Please refer to the diagram below to connect when upgrading.
· 2.4G Bluetooth
Datalink Assistant
software
To upgrade the Air end
and the Ground end
To upgrade the Ground
end and BTU module
· 2.4G Bluetooth
Datalink Assistant
software
Important : POWER CYCLE the Flight control system and 2.4G Bluetooth Datalink after upgrade.
