Secure the tonearm only slightly using the fixing screws (marked red in the picture 1 and 2)
so you can still move it for exact adjustment. After adjusting the vertical position you should
tighten the fixing screws to place the tonearm in it’s final position.
The right vertical position of the tonearm depends on the height of the pick-
up/cartridge.
Therefore the pick-up-cartridge has to be installed next.
When installing the pick-up/cartridge connect the four coloured cables of the tonearm to the
four coloured connection pins of the pick-up/cartridge.
1 2
The exact setting of the tonearm requires the installation of the pick-
up/cartridge. Please follow the instructions given by the
pick- up manufacturer !
Colour code key of the satisfy-tonearm cables:
Left channel (L+)
→ white
Left channel (L -)
→
blue
Right channel (R+)
→
red
Right channel (R -)
→
green

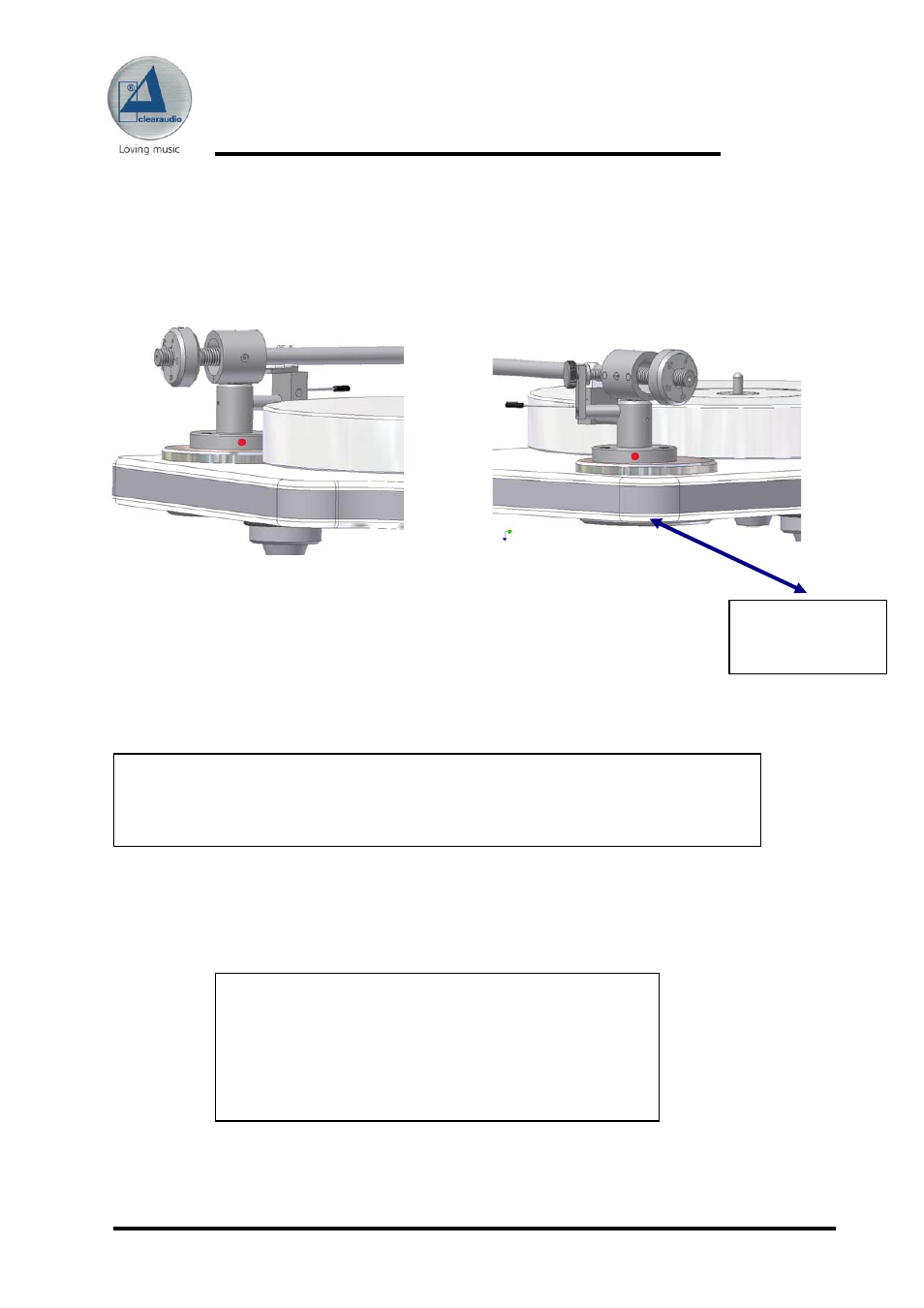

Picture 7: Fixing screw (1) for exact adjustment
Picture 8: Fixing screw (2) for exact adjustment
Drilling for the
ground wire
