21

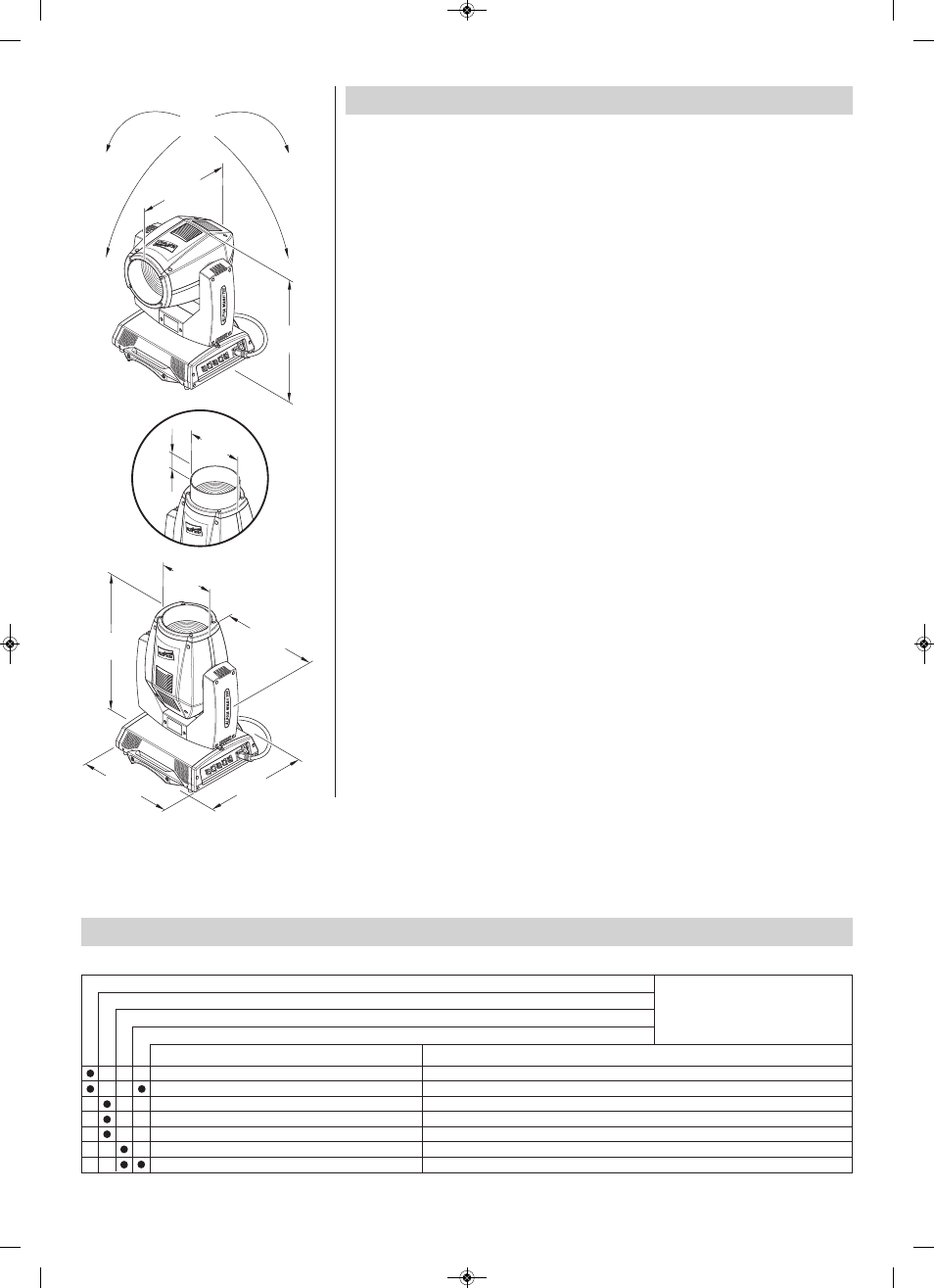

ALPHA WASH 700

50

(1,97")

220

(8,66")

405

(15.94")

385

(15,16")

390

(15,35")

220

(8,66")

575

(22.64")

375

(14.76")

505

(19,88")

410

(16,14")

Power supplies available

100-120V 50/60Hz
200-240V 50/60Hz

Input power

• 1050VA a 230V 50Hz.

Lamp

Discharge lamp.
• Type MSR GOLD 700/2

- Cap PGJX28
- Colour temperature 7200 K
- Luminous flux 50000 lm
- Average life 750 h
- Any working position

Motors

17 stepper motors, operating with microsteps,
totally microprocessor controlled.

Optical unit

• Elliptic reflector with high luminous efficiency

Channels

Max 21 control channels.

Inputs

• DMX 512

Movable body

• Movement by means of two stepper motors, con-

trolled by microprocessor.

• Automatic repositioning of PAN and TILT after

accidental movement not controlled by control
unit.

• Travel:

- PAN = 540°
- TILT = 250°

• Maximum speeds:

- PAN = 3.20 (Normal) / 2.90 (Fast)
- TILT = 1.89 (normal) / 1.75 (Fast)

• Resolution:

- PAN = 2.11°
- PAN FINE = 0.008°
- TILT = 0.98°
- TILT FINE = 0.004°

IP20 protection rating

• Protected against the entry of solid bodies larger

than 12mm (0.47”).

• No protection against the entry of liquids.

CE Marking

In conformity with the European Union Low Voltage
Directive 2006/95/CE and Electromagnetic compa-
tibility Directive 2004/108/CE.

Safety Devices

• Bipolar circuit breaker with thermal protection.
• Automatic break in power supply in case of

overheating or failed operation of cooling system.

Cooling

Forced ventilation with axial fans.

Body

• Aluminium structure with die-cast plastic cover.
• Two side handles for transportation.
• Device locking PAN and TILT mechanisms for

transportation and maintenance.

Working position

Functioning in any position.

Weight

• about 20.60 Kg (45lbs 5ozs).

TECHNICAL INFORMATION

CAUSE AND SOLUTION OF PROBLEMS

THE PROJECTOR WILL NOT SWITCH ON

PROBLEMS

ELECTRONICS NON-OPERATIONAL

DEFECTIVE PROJECTION

REDUCED LUMINOSITY

POSSIBLE CAUSES

CHECKS AND REMEDIES

No mains supply.
Lamp exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses or reflector broken
Dust or grease deposited.

Check the power supply voltage.
Replace the lamp. (See instructions).
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
