System Components, Connections and Controls
The TruColor HS lamphead is controlled by an external power supply.
The lamphead includes a cable-mounted, keyed multi-pin connector for connection to the PSU.
To reduce strain on cable connector use provided cable retainer.
There are 3 replaceable 150w LED boards on the fixture (replacement part # 261-0006)
Two panel removal screws located on each side of the lamp head will release each accessory
rails for access to LED boards and remote phosphor panels.
Both removable accessory rails have a safety “kill switch” that will turn the light off when un-
fastened. For proper operation ensure that accessory rails are securely fastened but not over
tightened.
Cineo highly recommends the use of a safety cable along with proper mounting equipment
when mounting the Cineo products into a ceiling or lighting grid. Reference the Cineo cata-
logue for current TruColor HS lamp head mounting options and light control.
The TruColor HS is rated for indoor use and in a dry environment.

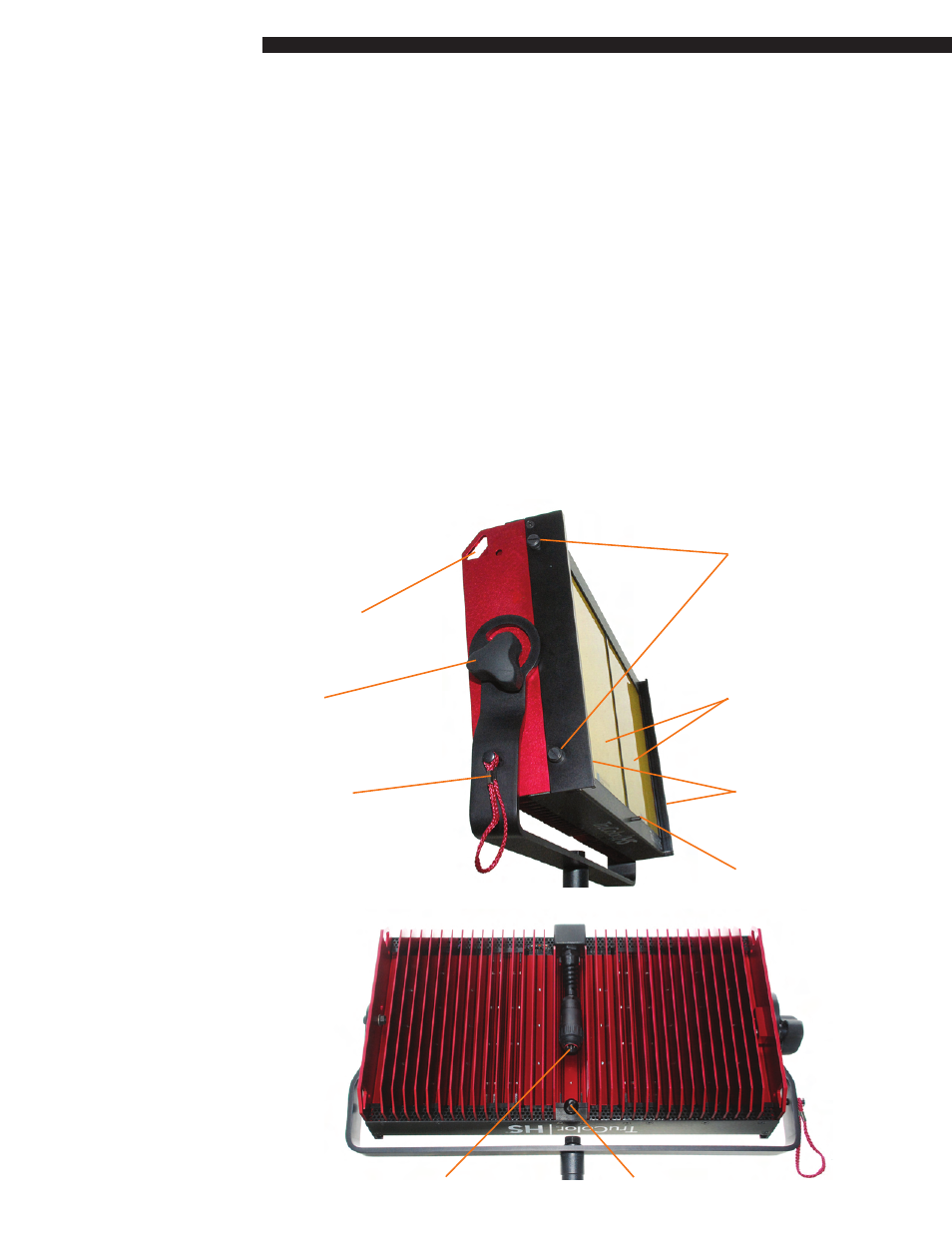

Cable Retainer
Cable Connector
Yoke Lock Phosphor Panels
Accessory Rails
Accessory Lock
Accessory Lock
Panel Removal Screws
Safety Cable
Attachment Point
