5
TruColor Lamphead Cables
Cineo TruColor lamphead cables use a keyed Amphenol 7 pin connection type to control both
power and data between the TruColor HS lamphead and power supply.
Do not connect or disconnect lamphead cable when the PSU power is on.
Maximum rated cable length between lamphead and power supply is 400ft (140m). Please
reference the Cineo TruColor HS catalogue for available cable lengths.
Cineo DX450 Power Supply
All power and system controls for the TruColor LS lampheads are located on the Cineo DX450
power supply.
The DX450 is designed to provide power for either one TruColor HS or up to three TruColor LS
fi xtures. The DX450 is the ideal power source when using the LS in a studio installation where
DMX control is required. Using the optional three-way splitter (p/n 900.0056), three lampheads
are connected to the lamphead connector on the DX450. The DX450 maintains independent
DMX control of the multiple LS lampheads.
The DX450 can be operated via local control or DMX. Ensure the DMX address is set to “000”
to operate in local control. Setting a DMX address between 001 and 998 will automatically
put the DX450 in DMX mode. Regardless of local or DMX control, the dimmer controls light
output from 10% to 100% without color shift.
The DX450 handle is safety rated for mounting hardware. Reference the Cineo catalog for
various mounting options. The DX450 is rated for indoor use in a dry environment.
Power Connections
AC Power In: The IEC power cable connects to the DX450 via this port.
AC Fuse Holder: An AC fuse is located under the fl ip-out panel.
NOTES:
1. Ensure the power cable is disconnected before servicing.
2. Do not connect to a variable supply, such as a dimmer rack or inverter.
3. The power cable should be plugged into the PSU before switching the power ON. The
PSU should be switched OFF before removing the power cable.

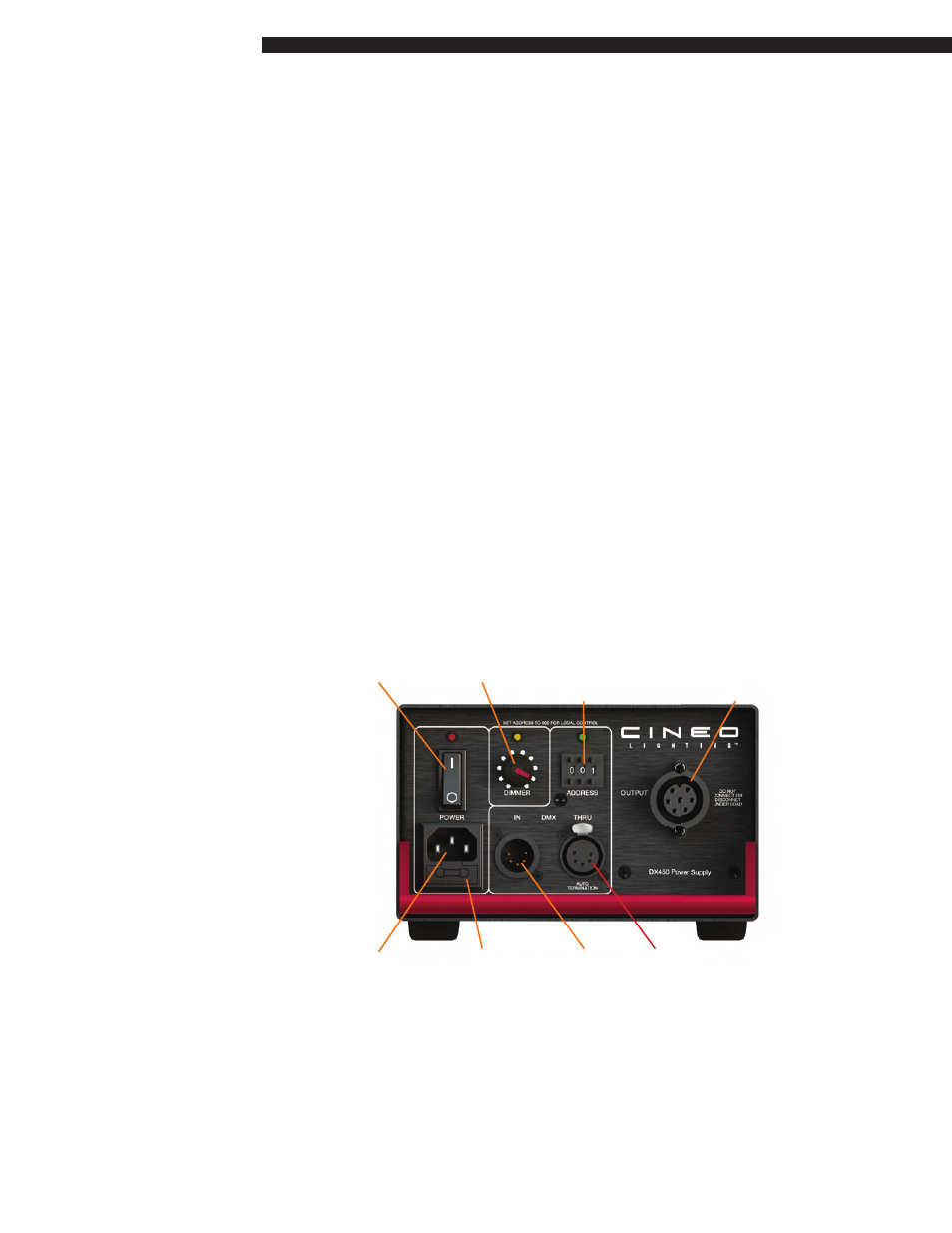

Power Switch
AC Power In AC Power Fuse Holder
Dimmer
DMX In
DMX Address
Select
DMX Thru
Lamp head
Connector
