10 — C
ONSTRUCTION
M
ASTER ®

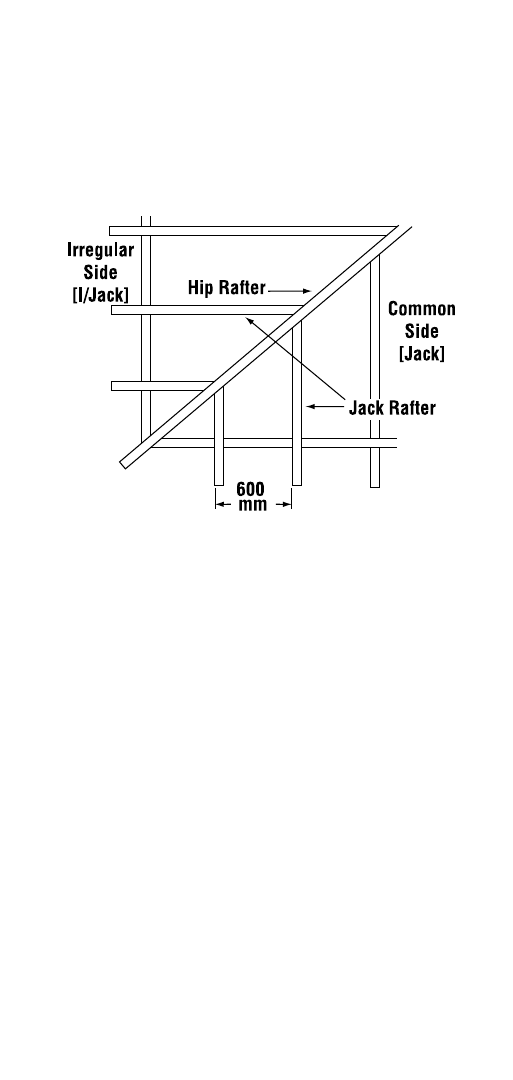

irregular (non-45°) hip/valley rafter
is displayed. Answers will show an
“I” on the display to indicate if it’s
an irregular.
[Conv]
[Hip/V] Irregular Pitch — Stores the irreg-
ular pitch or slope value for calcu-
lating lengths of the irregular
hip/valley and irregular jack rafters.
For instance, to enter a 38° irregu-
lar pitch or slope, press 38 [Conv]
[Hip/V] (or, to enter a ten inch
irregular pitch, enter 10 [Inch]
[Conv] [Hip/Valley]). To recall
the irregular pitch, press [Rcl]
[Conv] [Hip/Valley]. An irregular
pitch is designated with an “I”.
