LETS GET STARTED!

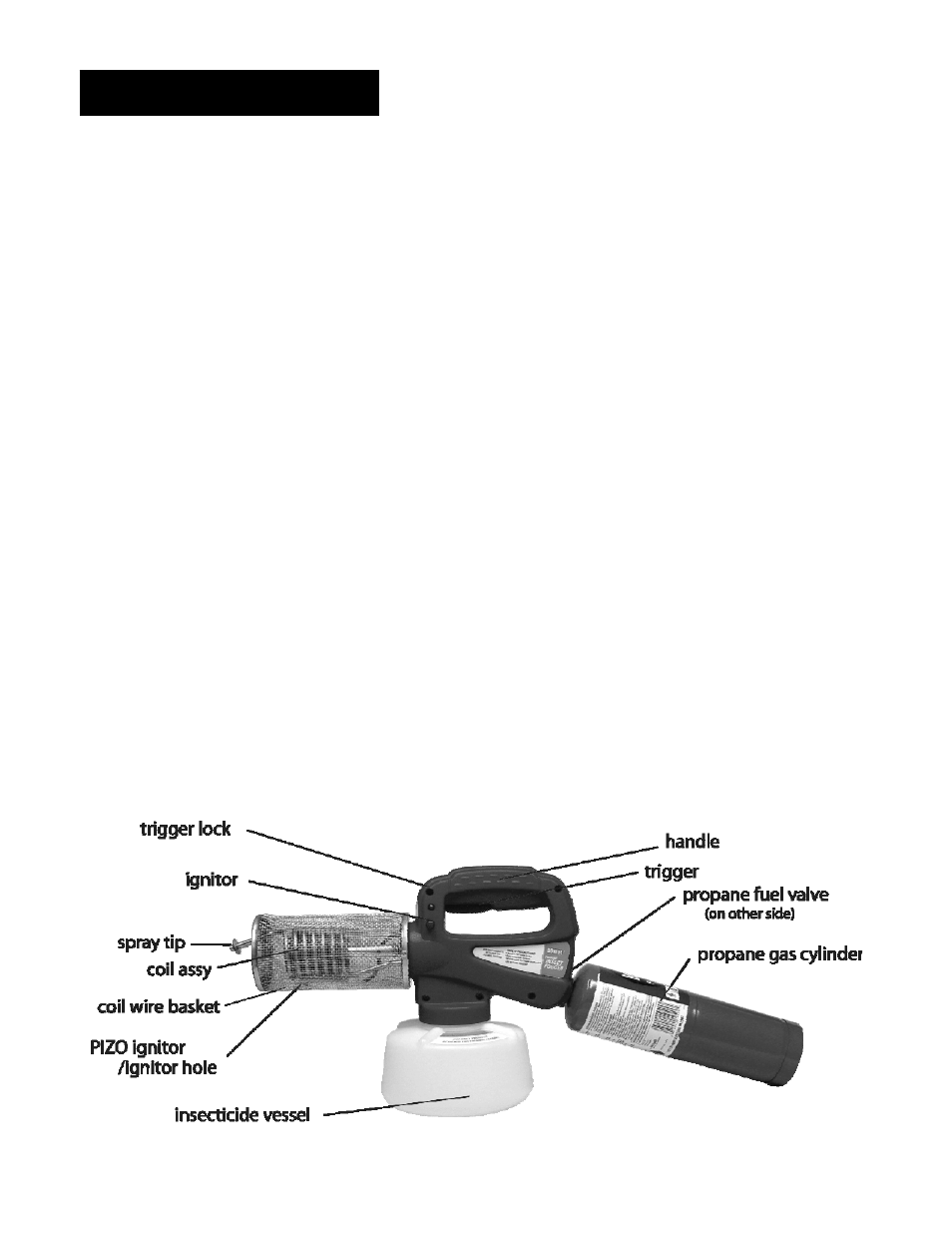

Get familiar with the product and its uses (See diagram).
1. Insecticide Vessel - This container holds your liquid Bonide Insecticide. Use only
products designed for thermal fogging.
2. Handle/Body of the Fogger - This takes the Bonide Insecticide from the Insecticide
Vessel delivering it to the heater coil. Attached to the rear is a propane fuel channel
for a bottle of propane gas (not included). This gives the Fogger the ability to fog
insecticide. Located on the Handle/Body of the Fogger are the following:
3. Black Propane Fuel Valve - This is located on the side of the Handle. The propane
fuel valve turns on the propane to begin the fogging process. Always make sure that
the propane fuel valve is turned clockwise to a stop when storing the Fogger.
4. Handle - Underneath the Handle is a Trigger. This feature controls when the fog is
released from the Fogger. By pumping this Trigger, the insecticide is turned into
fog.
5. Trigger Lock - This button is located on the top front of the Fogger Handle. When
the button is pushed in to the right, the trigger is locked. You will be unable to pull
on the trigger. Always lock the Trigger when the Fogger is not being used and
during igniting.
6. Ignitor - Below the Trigger Lock is the Ignitor. By pushing in the Ignitor, a spark
lights the heater coil to create the heat. To test the Ignitor, go into a dark room and
push in the Ignitor button, without the propane gas cylinder attached. You should
see a spark just below the heater coil. If you do not see a spark the heater coil will
need to be ignited with a lighter or match.
7. Coil - The coil is protected by a wire basket on the end of the Handle opposite the
propane tank. This is the area in which the fog is released. BE CAREFUL, this area
will be HOT. KEEP AWAY FROM YOUR BODY.
