Introduction
MVQUICKAL is a hot swap system to be installed as an interface
between an ALEXA Plus camera and a V-lock battery pack.
The main purpose is to allow battery replacement without any power
interruption to the camera through an intelligent detection of the
battery removal.
Additionally, MVQUICKAL provides an alternative power source of
about 21Wh to be used as a UPS in case of a sudden power failure
or extended power demands during shooting.

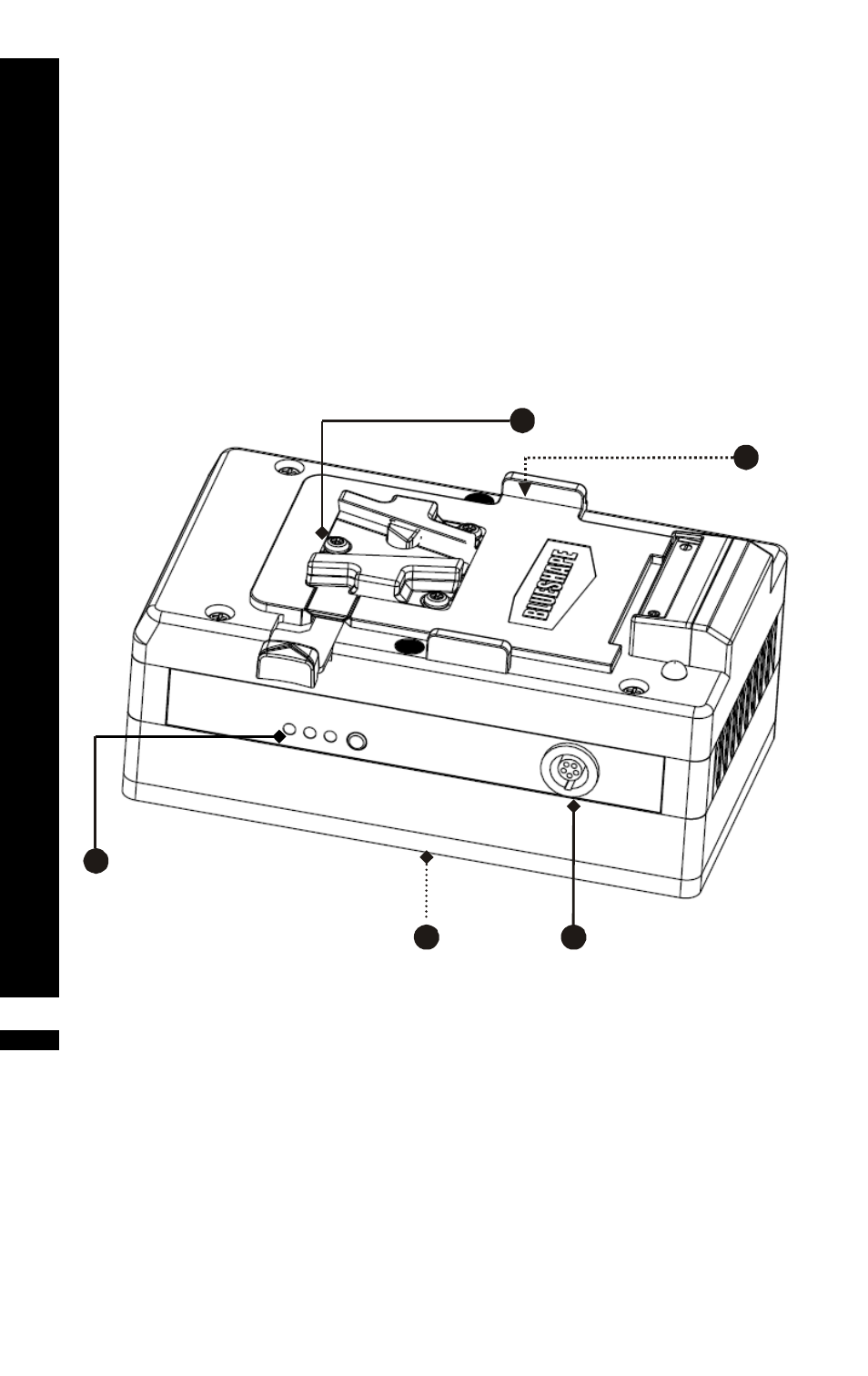

MVQUICKAL graphic description
1. Installation interface for external V-Lock battery
2. D-tap connector (on opposite site, not visible in drawing)
(NOTE: D-tap is not under UPS protection)
3. LED indicators/ switch to show state of charge of internal
battery
4. Output connector (power/ data outlet to ALEXA)
5. Charging socket
1
5
2
4
3
