BLUESHAPE MV-EX1 User Manual
V-mount adapter for sony ex1 instruction manual, Rev 1.0

V-Mount adapter for SONY EX1
Instruction Manual
Rev 1.0
www.blueshape.net
Introduction
The BLUESHAPE code reference for this item is MV-EX1.
Your BLUESHAPE V-Mount adapter has been designed as an
attachment to be fitted in place of the original Sony battery in
the PMW-EX1 and PMW-EX1R XDCAMS.
Below is a step by step guide for a correct installation.
BLUESHAPE MV-EX1 adapter features an improved hooking
device that guarantees a reliable installation, eliminating any
risk of shake of the V-Mount battery during live work
The power to the camera is fed in by a short cable, equipped
with a right-angled DC Jack. This fits in the lateral power inlet
on the camera body.
MV-EX1 V-Mount adapter also features a D-Tap connector as
an auxiliary, 14.8V nominal power source.
Features and Specifications
Allows usage of standard V-lock batteries, directly installed
on the XDCAM
Secure, sturdy installation preserving a correct camera
balance
Significantly extended XDCAM runtime benefits through a
small investment in BLUESHAPE V-lock power systems
Additional 14.8V power source for accessories available
from the “D-tap” connector installed on the side of battery
adapter plate
Dimensions 82(W-excluding metal arm) x 140(H) x 140(D)mm
Weight: 405 grams
Accessories supplied:
1 x MV-EX1
1 x Instruction manual

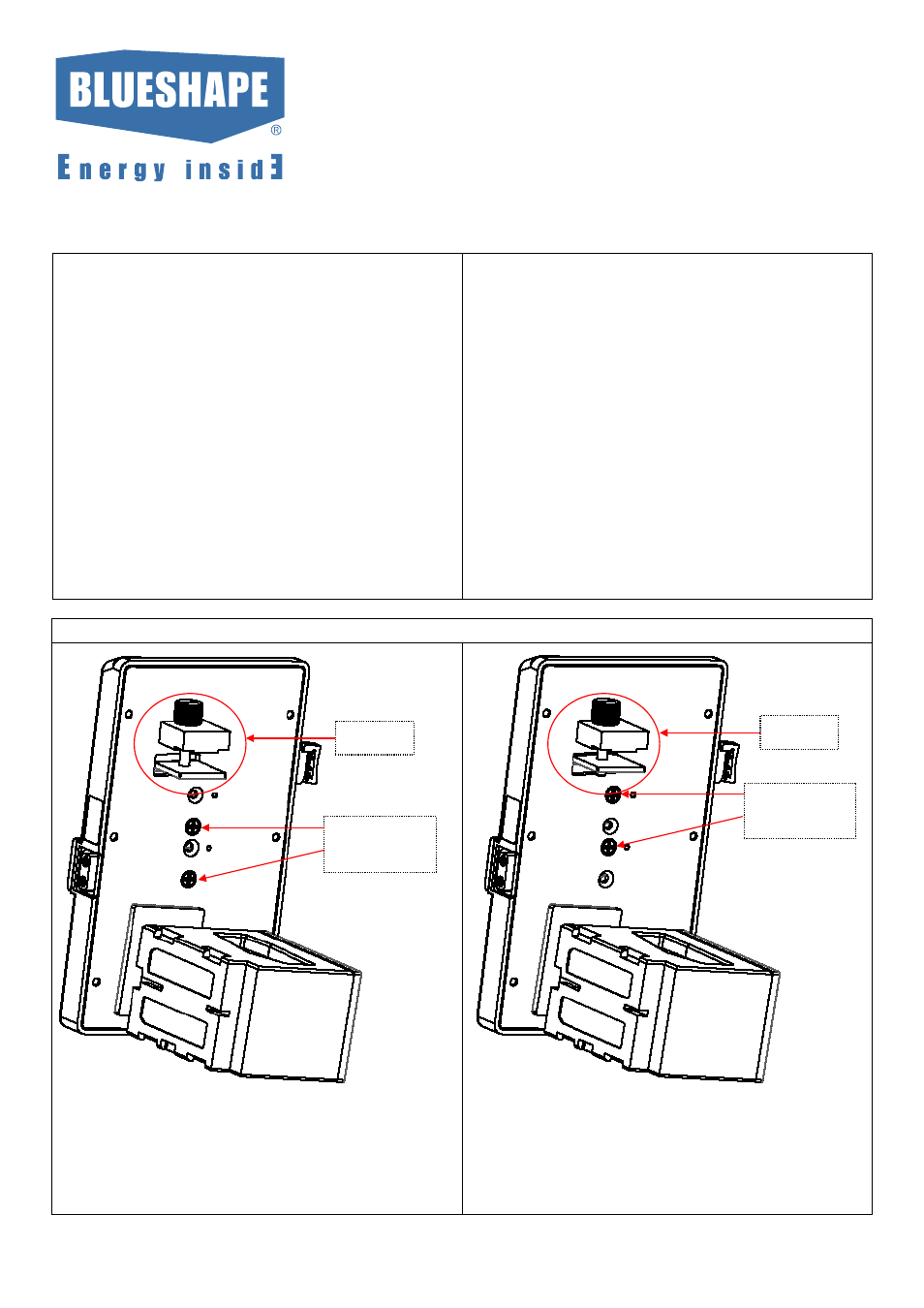

Installation
PMW-EX1
Note: For correct mount on Sony EX1 the clamp arrangement must be
screwed as shown. (Use 2 countersunk M3X8 screws)
PMW-EX1R
Note: For correct mount on Sony EX1R the clamp arrangement must be
screwed as shown. (Use 2 countersunk M3X8 screws)
Settings for
Sony EX1
Clamp
Settings for
Sony EX1R
Clamp
