4. OPERATING ADJUSTMENTS
The Control Panel

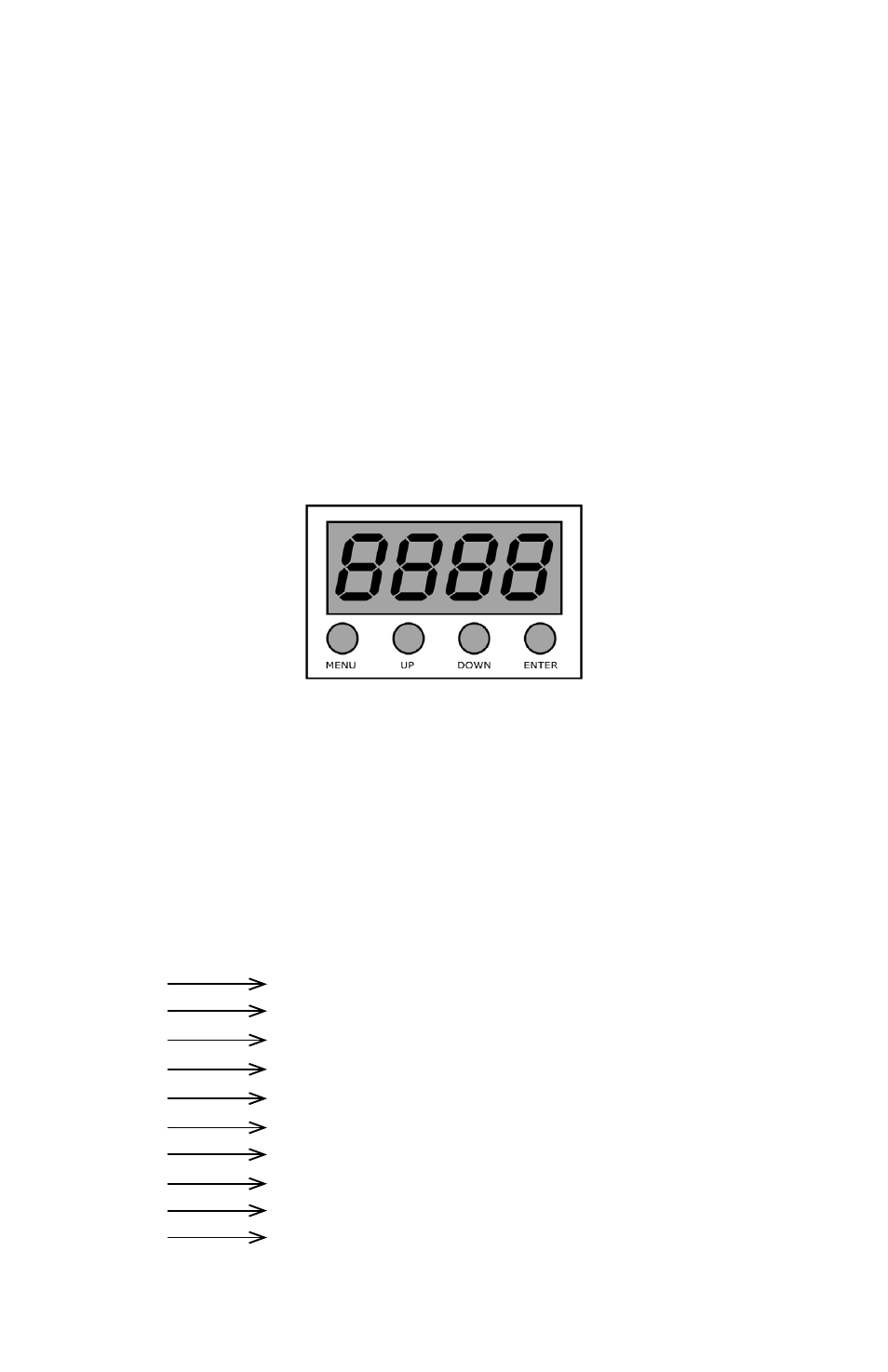

All the goodies and different modes possible with the Puck™ CSI Xtreme are accessed by
using the control panel on the rear of the fixture. There are 4 control buttons below the
LED display which allow you to navigate through the various control panel menus.
Is used to navigate to the previous higher-level menu item.
Scrolls through menu items and numbers in ascending order.
Scrolls through menu items and numbers in descending order.
Is used to select and confirm/store the current selection.
The Control Panel LED Display shows the menu items you select from the menu map
below. When a menu function is selected, the display will show immediately the first
available option for the selected menu function. To select a menu item, press .
Press the
and buttons to navigate the menu options. Press the button
to select the menu function currently displayed, or to enable a menu option. To return to
the previous option or menu without changing the value, press the
Control Panel Menu Structure
d --- d001 - d512
4 channel mode / choose DMX address
A --- A001 - A512
8 channel mode / choose DMX address
FF -- FF01 - FF99
Fade mode
r --- r001 - r255
1st LED group intensity
G --- G001 - G255
2st LED group intensity
b --- b001 - b255
3st LED group intensity
U --- U001 - U255
4th LED group intensity
dEoo --
Auto run mode
SoUd --
Sound active mode
SLAV --
Sets fixture to run in slave mode
