Gobo Replacement
1) Remove the gobo cover by removing the two screws on the top of the fi xture head.
2) Remove the slot-n-lock gobo from the gobo wheel by lifting up slightly and sliding it out.
3) Using a small tool, pry the tension ring from the gobo holder.
4) Remove the old gobo.
5) Insert the new gobo, and replace in the reverse steps of removal.

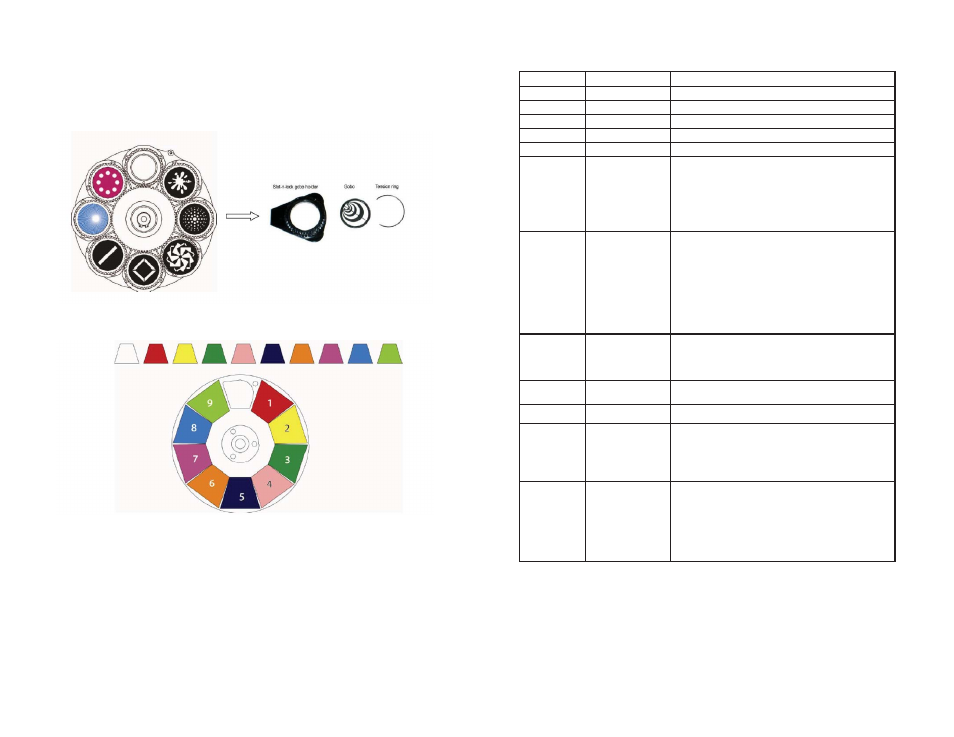

Color Wheel Reference
Page 14
Polaris Manual Rev. A Copyright (c) 2010 Blizzard Lighting, LLC
DMX Channel Values (12 Channel Mode)
Channel Channel Value Does...
1 000 <-> 255 Pan
2 000 <-> 255 Pan Fine
3 000 <-> 255 Tilt
4 000 <-> 255 Tilt Fine
5 000 <-> 255 Pan/Tilt Speed (Normal to Slow)
6
000 <-> 014
015 <-> 029
030 <-> 044
045 <-> 059
060 <-> 074
075 <-> 089
090 <-> 104
105 <-> 119
120 <-> 134
135 <-> 149
150 <-> 255
Color
Open
Red
Yellow
Green
Pink
Blue
Orange
Magenta
Light Blue
Light Green
Color Scroll (Slow <-> Fast)
7
000 <-> 009
010 <-> 019
020 <-> 029
030 <-> 039
040 <-> 049
050 <-> 059
060 <-> 069
070 <-> 079
080 <-> 099
100 <-> 119
120 <-> 139
140 <-> 159
160 <-> 179
180 <-> 199
200 <-> 219
220 <-> 255
Gobo
Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo Shake 1
Gobo Shake 2
Gobo Shake 3
Gobo Shake 4
Gobo Shake 5
Gobo Shake 6
Gobo Shake 7
Gobo Wheel Spin (Slow <-> Fast)
8
000 <-> 002
003 <-> 006
007 <-> 128
129 <-> 132
133 <-> 136
137 <-> 255
Gobo Rotation
No function
Clockwise (slowest)
Clockwise (Slow <-> Fast)
No function
Counter-clockwise (Slowest)
Counter-clockwise (Slow <-> Fast)
9 000 <-> 127
128 <-> 255
Prism
No function
Prism
10 000 <-> 255
Dimmer
0 <-> 100%
11
000 <-> 031
032 <-> 063
064 <-> 095
096 <-> 127
128 <-> 159
160 <-> 191
192 <-> 223
224 <-> 255
Strobe
Closed
Open
Strobe (Slow <-> Fast)
Open
Pulse Strobe (Slow <-> Fast)
Open
Random Strobe (Slow <-> Fast)
Open
12
000 <-> 019
020 <-> 039
040 <-> 059
060 <-> 079
080 <-> 099
100 <-> 119
120 <-> 139
140 <-> 159
160 <-> 179
180 <-> 199
200 <-> 219
220 <-> 255
Control (Hold Each for 5 Seconds to Set)
No function
Pan/tilt move-in-black activate
Pan/tilt move-in-black deactivate
Auto 1
Auto 2
Sound Active 1
Sound Active 2
Custom Program
Test
No function
Reset
No function
