2. MEET THE POLARIS™ SPOT
CONTROL FEATURES
9 or 12-channel DMX LED moving yoke •
Pan: 530º / Tilt: 270º •
Color wheel: 9 colors + white •
Rainbow color spin at variable speeds •
Rotating gobo wheel with gobo shake •
7 interchangeable, slot-n-lock gobos + open •
Gobo wheel spin at variable speeds •
3-facet prism •
Variable electronic strobe •
Variable electronic dimmer (0 – 100%) •
Remote fi xture reset •
255 user-programmable steps without DMX controller •
Move-in-black for pan/tilt •
Built-in automated programs •
Built-in sound activated programs •
ADDITIONAL FEATURES
1 High-powered, 30 W (1500 mA) LED •
User-selectable pan/tilt ranges •
Automatic pan/tilt correction •
Reset to factory settings option •
User-selectable basic or advanced operating modes •
DMX Quick Reference (12-Channel Mode)
Channel What It Does
1 Pan
2 Pan Fine (16-Bit)
3 Tilt
4 Tilt Fine (16-Bit)
5 Pan/Tilt Speed
6 Color
7 Gobo
8 Gobo Rotate
9 Prism
10 Dimmer
11 Strobe
12 Control Features
Page 6
Polaris Manual Rev. A Copyright (c) 2010 Blizzard Lighting, LLC
DMX Quick Reference (9-Channel Mode)
Channel What It Does
1 Pan
2 Tilt
3 Color
4 Gobo
5 Gobo Rotate
6 Prism
7 Dimmer
8 Strobe
9 Control Features

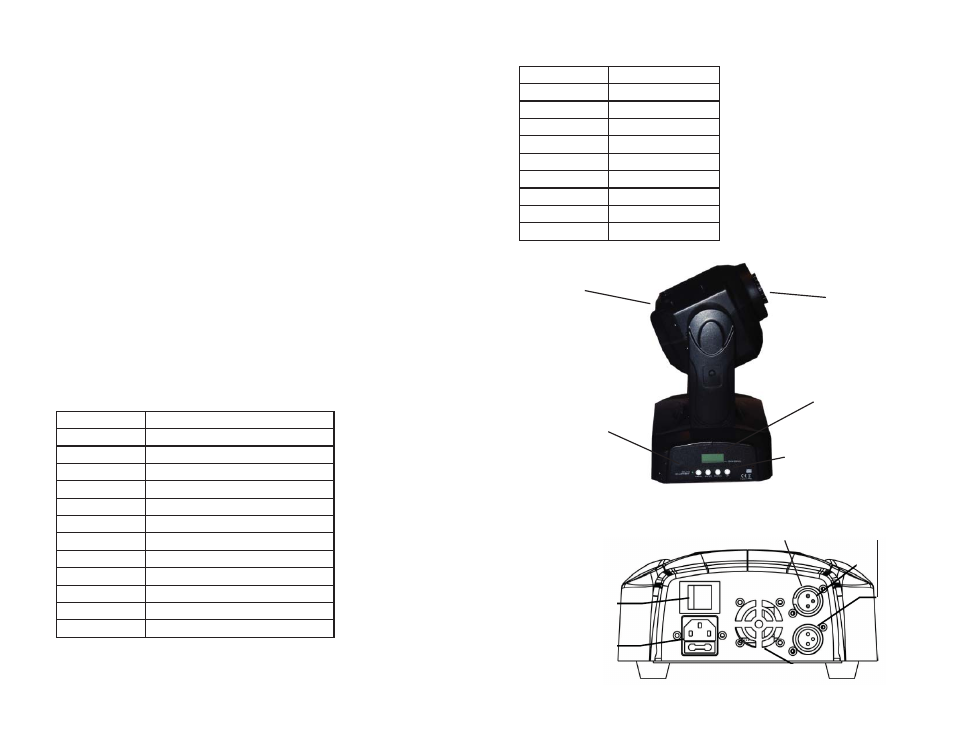

Figure 1: The Polaris Pin-Up Picture
Lens/Focus
Control Panel
LCD
Readout
Head
Figure 2: The Rear Connections
Power Switch
Fuse Cover
DMX In DMX Out
Sound Sensitivity
Adjustment
Fan Guard
