EIC5000 Electronic Indicator Control – Upper Helm
INSTALLATION AND OPERATION INSTRUCTIONS
READ INSTRUCTIONS COMPLETELY BEFORE
BEGINNING INSTALLATION
Step 1 Follow EIC5000 Installation Instructions to install system and Lower Helm EIC
Display.
Step 2 Mounting the Upper Helm EIC Display
Using the template, mark the location for your Upper Helm EIC Display and locate the
centers of the holes. Use a 2-1/8" holesaw to cut the center hole and 3/16" drill for
the four mounting stud holes. Use a small bead of sealant around the perimeter of the
display to seal. Using the 4 nylon thumb nuts secure the display (use care to avoid
overtightening).

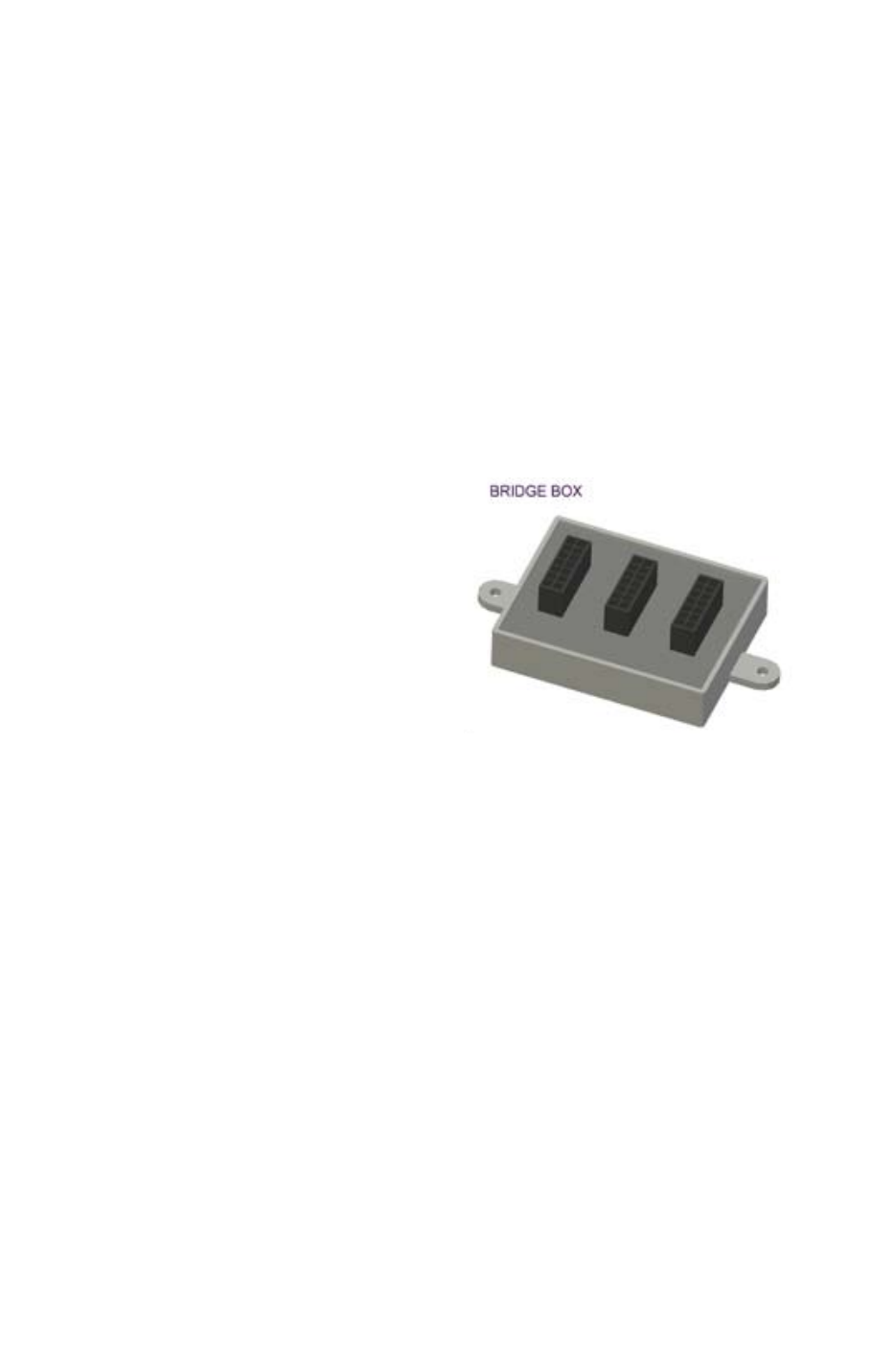

Step 3 Mounting the Bridge Box
Mount the Bridge Box within 4 feet of the
Lower Helm EIC Display.
Step 4 Running the EIC Wire Harness from
Bridge Box to the EIC Relay Module
If you already have a Lower Helm EIC Display
installed, simply unplug the blue EIC Wire
Harness from the back of that Lower Helm
EIC Display and plug it into ANY of the three
connectors on the Bridge Box.
If this is a new installation, plug the blue EIC Wire Harness directly, connecting the EIC
Relay Module to any of the three connectors on the Bridge Box.
Step 5 Running the EIC Bridge Wire Harness to the Bridge Box
Plug the EIC Bridge Wire Harness into the back of the Upper Helm EIC Display, run it
down to the Bridge Box and plug it into ANY of the three connectors.
Step 6 Running the EIC 4-foot Wire Harness from the Lower Helm EIC Display to
the Bridge Box
Plug the 4-foot Wire Harness into the back of the Lower Helm EIC Display and plug into
the remaining connector on the Bridge Box.
Step 7 Connecting the EIC Display Wiring
The orange and purple wires at the Upper Helm EIC Display are NOT connected to any
power source. (They are connected at the Lower Helm EIC Display.)
Calibration
Refer to the EIC5000 Installation Instructions and calibrate system ONLY at the Lower
Helm EIC Display.
