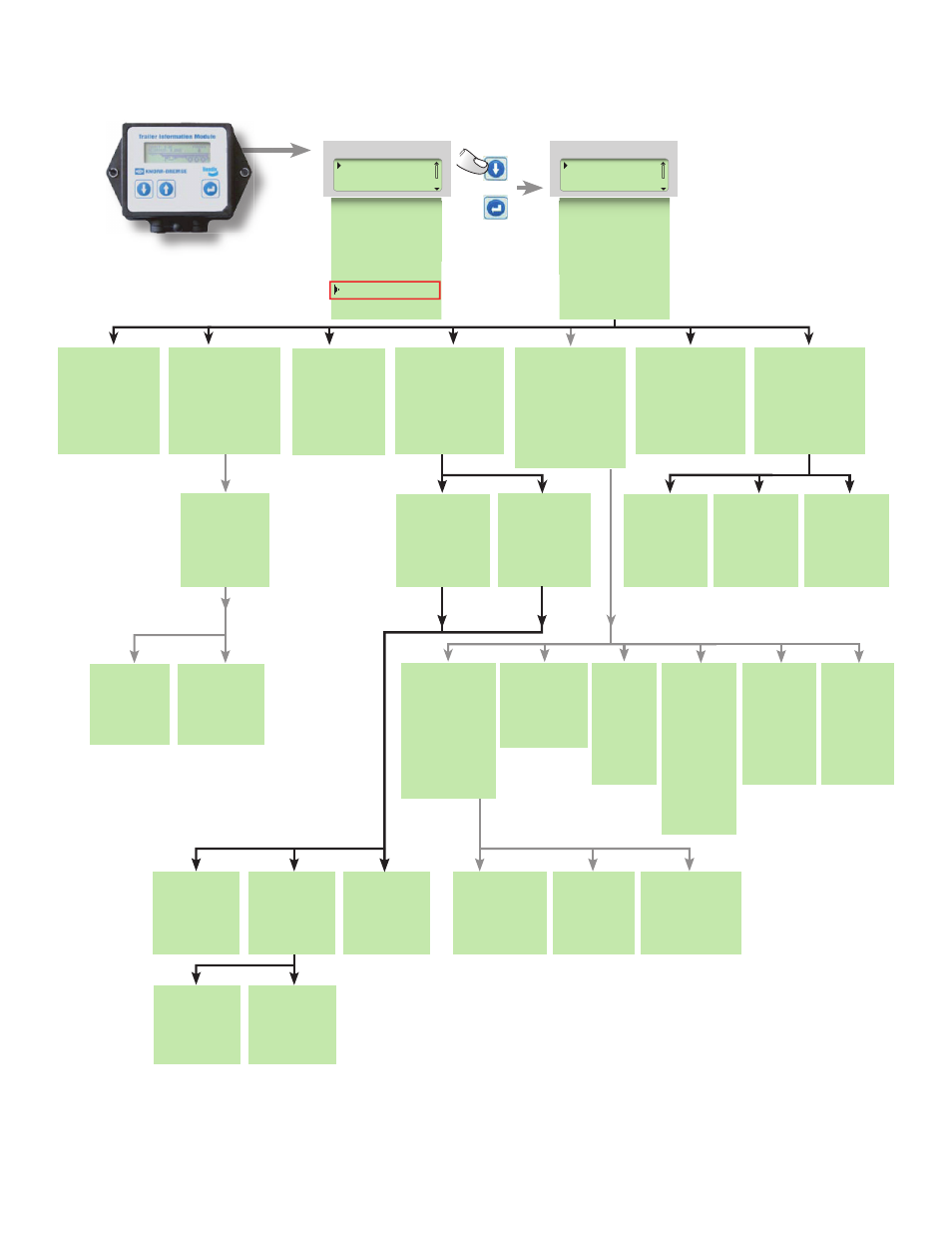

Initial Menu Main Menu
MENU OVERVIEW
Set Next Service
Date Based
Distance Based
Exit
Info Total
ABS Events
RSP Interventions
Brake History
System Powering
Exit
Info Period
Period mi:
ABS Events:
RSP Interventions
Brake History
System Powering
Reset Period Data
Exit
Set LCD Contrast
LCD Contrast:
Save & Exit
Exit
Manufacturing Info
Part num:
K001966XXXXXX
SW:
Serial:
ManufDate:
Exit
1
ODO: 0mi
Load Rear: lb
Inst. Test Missing 2
TPMS Info 3
Main Menu
Exit
Stored DTCs
Distance & Serv.
System Config
Operating Info
System Info
ECU Info
TIM Info
Exit
Stored DTCs
Active DTCs :
Inactive DTCs :
Clear DTCs
Exit
Distance & Serv.
ODO: mi
Trip: mi
Reset Trip
Srv Date:
Srv mi:
Set Next Service
Exit
Operating Info
Info Total
Info Period
Exit
ECU Info
Part num:
SW:
Exit
System Info
TPMS Setup 3
Load Info
Pressure Info
Tilt Angle:
Wheel Speeds
Air Gap Speeds
TIM Info
Lang.:
Set LCD Contrast
Manufacturing Info
Exit
+
Repeat until
“Main Menu”
ODO: Omi
Load Rear: lb
Inst. Test Missing
Trailer Information Module
Stored DTCs
Distance & Serv.
Operating Info
System Info
Trailer Information Module
System Config.
ABS Config.:
ECU Orient.:
RSP:
Exit
Installation Test
Exit
Language
English (US)
N.Am. French
N.Am. Spanish
Exit
Date Based
Year:
Month:
Day:
Save & Exit
Exit
Distance Based
Srv mi:
Save & Exit
Exit
RSP Intervention
Test Puls:
Step 1:
Step 2:
Step 3:
Exit
Brake History
Appl vs Dem Values
Over Pressures
Exit
System Powering
ConstPower:
Stop Lamp:
Exit
Load Info
Front Axle Group 4
Bogie Load: 4
Rear Axle Group
Exit
Over Pressures
Dem >130psi:
Res >130psi:
Exit
Appl vs Dem Values
<22psi:
22-36psi:
36-58psi:
>58psi:
Exit
Pressure Info
Dem P4:
Dem CAN:
Susp P42:
Pcyl P21:
Pcyl P22:
Res P1:
Exit
Installation Test
Start Inst. Test
Install Check
Reserv. Press
S-A Sensor: 4
S-E Sensor: 4
S-C Sensor:
S-D Sensor:
S-F Sensor: 4
S-B Sensor: 4
Demand Press:
Tilt Angle:
Exit
TPMS Setup 3
Enter conf. Mode 6
Learn Sensor 5
Delete Sensor 5
Vehicle param. 5
Axle param. 5
Altitude comp: 5
Change password 5
Leave conf. Mode 5
Exit
Enter conf. Mode 6
Password:
Match password
Exit
Vehicle param. 5
FAL% CIP:
SAL % CIP:
Over Temp:
Exit
Change password 5
Password:
New passw.:
Save new passw.
Exit
Menu choices in green are not available in BATTERY MODE
1 Displayed only if active faults are available
2 Displayed only if installation test is missing
3 Displayed only if Tire Pressure Monitoring System (TPMS) is configured
4 Displayed only if included by vehicle ABS configuration
5 Displayed only if TPMS configuration mode entered
6 Displayed only if TPMS configuration mode not entered
Wheel Speeds
S-A Sensor: 4
S-E Sensor: 4
S-C Sensor:
S-D Sensor:
S-F Sensor: 4
S-B Sensor: 4
Exit
Airgap Speeds
S-A Sensor: 4
S-E Sensor: 4
S-C Sensor:
S-D Sensor:
S-F Sensor: 4
S-B Sensor: 4
Exit
