or
ODO: 127mi
Load Rear: 58420lb
Inst. Test Missing
DISCLAIMER
For information
only! Press any key
to continue.
SUPPLY: 11.9V 58368LB
ODO: 127MI
Bendix TIM ™
TABS-6 ™
Advanced ABS
Inst. Test Missing
TPMS Info
Main Menu
Exit
or
or or
or
DISCLAIMER
For information
only! Press any key
to continue
DTCs >
ODO: 127mi
Main Menu
Exit
or
or or
or or
BATTERY MODE
For information
only! Values are
read from memory!
Initial Menu
Initial Menu
Initial Menu
Main Menu
Stored DTCs
Distance & Serv.
Operating Info
ECU Info
Main Menu
+
Stored DTCs
Distance & Serv.
Operating Info
System Info
Scroll until
“Main Menu”
Scroll until “Main Menu”
TPMS symbol
(where used)
Bendix TIM ™
TABS-6 ™
Advanced ABS

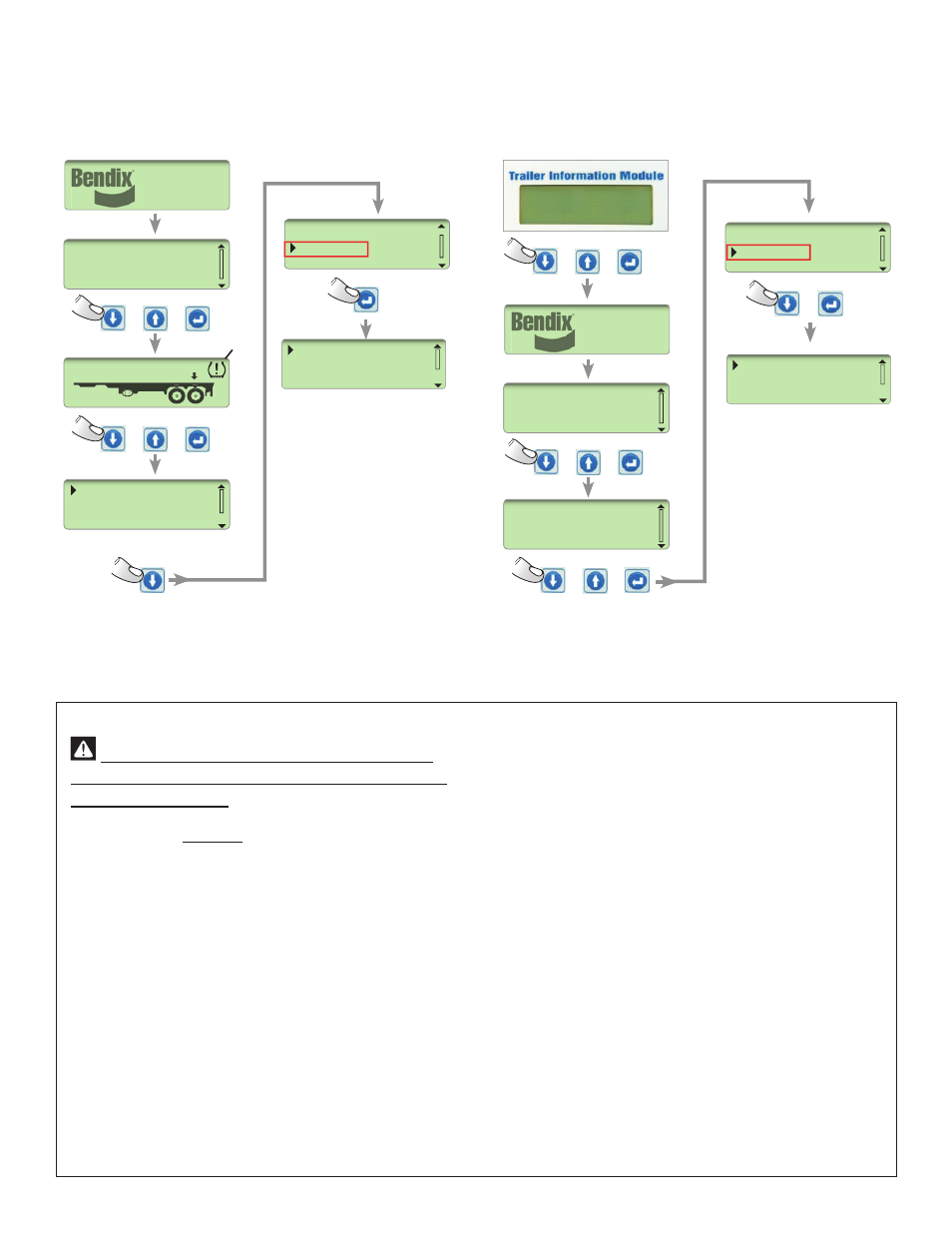

DISPLAYS
With the ignition “ON”
The display is automatically activated. All menus are
available.
With the ignition “OFF”
The display is off, push any navigation button for one second to
activate the display. Only limited menus are available.
SAFE MAINTENANCE PRACTICES
WARNING! PLEASE READ AND FOLLOW
THESE INSTRUCTIONS TO AVOID PERSONAL
INJURY OR DEATH:
When working on or around a vehicle, the following general precautions
should be observed at all times:
1. Park the vehicle on a level surface, apply the parking brakes, and
always block the wheels. Always wear safety glasses. Where
specifically directed, the parking brakes may have to be released,
and/or spring brakes caged, and this will require that the vehicle be
prevented from moving by other means for the duration of these tests/
procedures.
2. Stop the engine and remove ignition key when working under or
around the vehicle. When working in the engine compartment, the
engine should be shut off and the ignition key should be removed.
Where circumstances require that the engine be in operation,
EXTREME CAUTION should be used to prevent personal injury
resulting from contact with moving, rotating, leaking, heated or
electrically charged components.
3. Do not attempt to install, remove, disassemble or assemble a
component until you have read and thoroughly understand the
recommended procedures. Use only the proper tools and observe
all precautions pertaining to use of those tools.
4. If the work is being performed on the vehicle’s air brake system,
or any auxiliary pressurized air systems, make certain to drain the
air pressure from all reservoirs before beginning ANY work on the
vehicle. If the vehicle is equipped with a Bendix ® AD‑IS ® air dryer
system or a dryer reservoir module, be sure to drain the purge
reservoir.
5. Following the vehicle manufacturer’s recommended procedures,
deactivate the electrical system in a manner that safely removes all
electrical power from the vehicle.
6. Never exceed manufacturer’s recommended pressures.
7. Never connect or disconnect a hose or line containing pressure; it
may whip. Never remove a component or plug unless you are certain
all system pressure has been depleted.
8. Use only genuine Bendix ® brand replacement parts, components
and kits. Replacement hardware, tubing, hose, fittings, etc. must
be of equivalent size, type and strength as original equipment and
be designed specifically for such applications and systems.
9. Components with stripped threads or damaged parts should be
replaced rather than repaired. Do not attempt repairs requiring
machining or welding unless specifically stated and approved by the
vehicle and component manufacturer.
10. Prior to returning the vehicle to service, make certain all components
and systems are restored to their proper operating condition.
11. For vehicles with Automatic Traction Control (ATC), the ATC function
must be disabled (ATC indicator lamp should be ON) prior to
performing any vehicle maintenance where one or more wheels on
a drive axle are lifted off the ground and moving.
