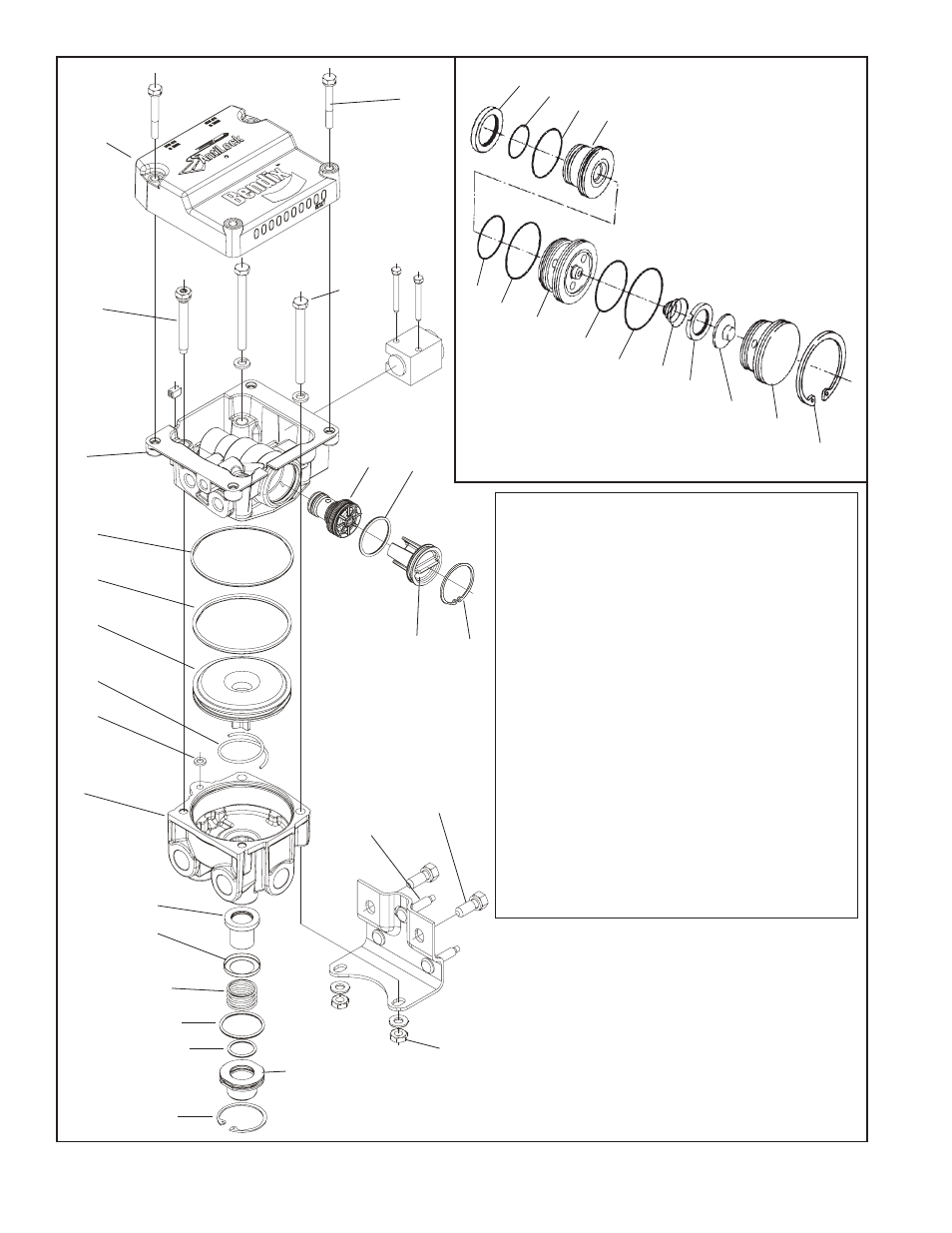

FIGURE 9 - ANTILOCK TRACTION ASSEMBLY EXPLODED VIEW
24
23
22
26
25
27
28
29
30
31
32
33
34
35
PRIOR INTERNAL
COMPONENT
CONFIGURATION
Key Description
1 ECU
Control
2 Bolts (4)
3 Cover
4 Base
5 Retaining
Ring
6 Exhaust Cover
7 O-Ring
8 O-Ring
9 Valve Spring
10 Valve Retainer
11 Valve Assembly
12 Cap Screws (2)
13 Nuts and Washers (2)
14 Lock
Washers (2)
15 Bracket
16 Cap Screws (2)
17 O-Ring
18 O-Ring
Key Description
19 Relay
Piston
20 Piston Spring (if used)
21 O-Ring
22 Retaining Ring
23 Check Valve*
24 O-Ring
25 Inlet
Seat*
26 Check Valve Seat
27 O-Ring
28 Check
Valve
29 Spring Seat
30 Spring
31 Inlet
Seat
32 O-Ring
33 O-Ring
34 O-Ring
35 Alternate
Plug*
36 Bolts (2)
* Note: For new style ATR-1 ™ valves either
both items 23 - 25, or item 35 will be present.
4
3
5
6
7
8
9
10
11
18
19
21
20
35 22
14
13
17
2
1
16
34
Assembly
of items
29-35
12
15
