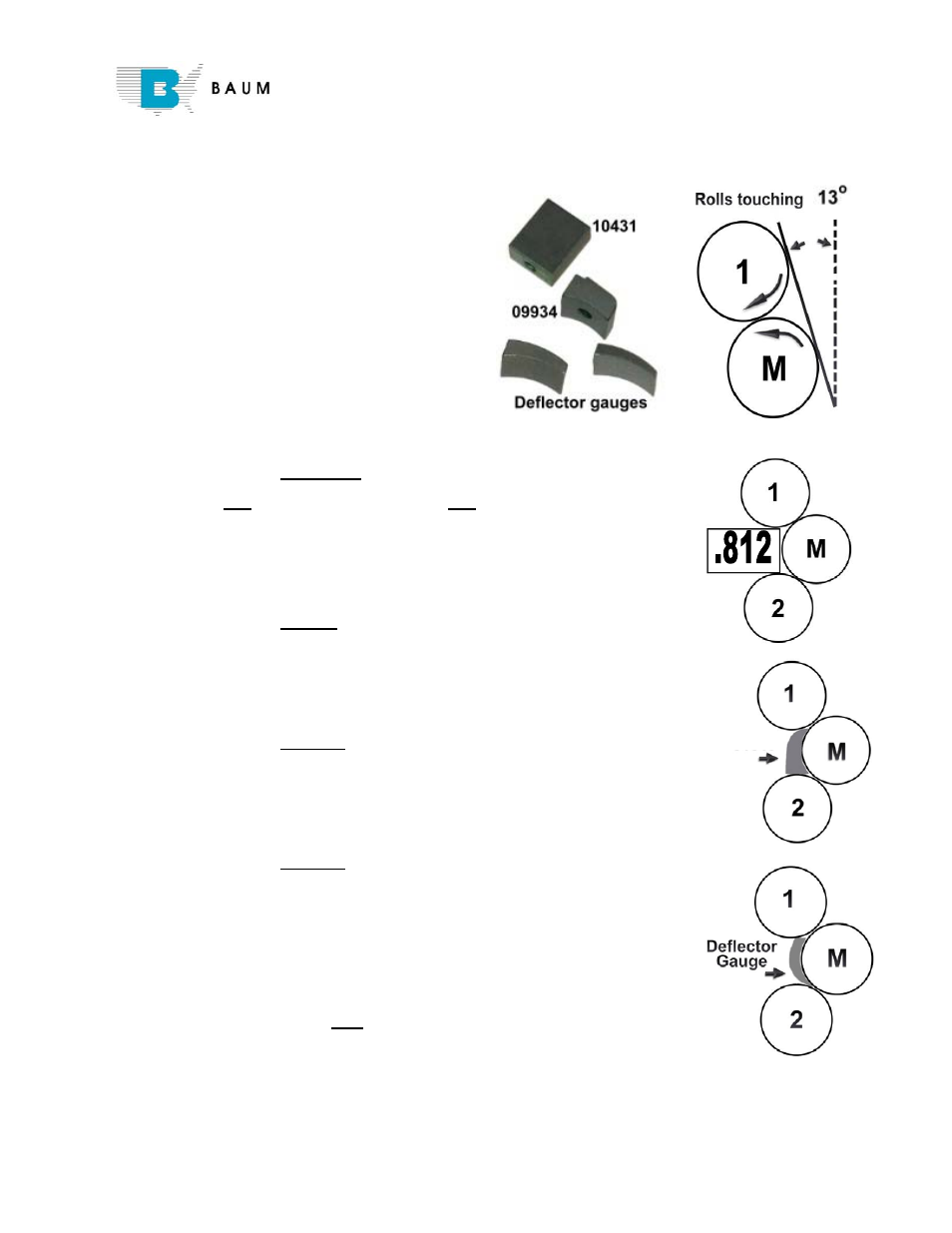

APPENDIX C - Roll, Pan & Deflector Settings

700 Series with Fabricated Fold Pans

ROLL GAUGE .812 Part Nbr 10431

PLATE GAUGE Part Nbr 09934

DEFLECTOR GAUGE
Part Nbr: For Parallel & 8 page 92020
For 16 & 32 page 91643

FOLD PAN SETTINGS

DEFLECTOR SETTINGS

PARALLEL

‘ A ‘

#1 Fold Pan

.015

#1 Deflector

.015

#2 Fold Pan

.015

#2 Deflector

.015

#3 Fold Pan

.025

#3 Deflector

.015

#4 Fold Pan

.025

#4 Deflector

.015

8-PAGE

#1 Fold Pan

.020

#1 Deflector

.015

#2 Fold Pan

.020

#2 Deflector

.015

#3 Fold Pan

#3 Deflector

.030

#4 Fold Pan

#4 Deflector

.035

16-PAGE

#1 Fold Pan

.020

#1 Deflector

.020

#2 Fold Pan

.020

#2 Deflector

.020

#3 Fold Pan

#3 Deflector

.035

#4 Fold Pan

#4 Deflector

.045

32-PAGE

#1 Fold Pan

.020

#1 Deflector

.020

#2 Fold Pan

.020

#2 Deflector

.020

End play in Rolls .10

To ADJUST Fold Pans – Use Rail Ecc.

Front Ecc. - In & Out plus Up & Down

Rear Ecc. - Up & Down only

** End of Appendix C **
