Appendix c - roll, pan & deflector settings, 700 series with fabricated fold pans, Plate gauge part nbr 09934 – Baumfolder Rebuilding a 200 – 700 series folder User Manual

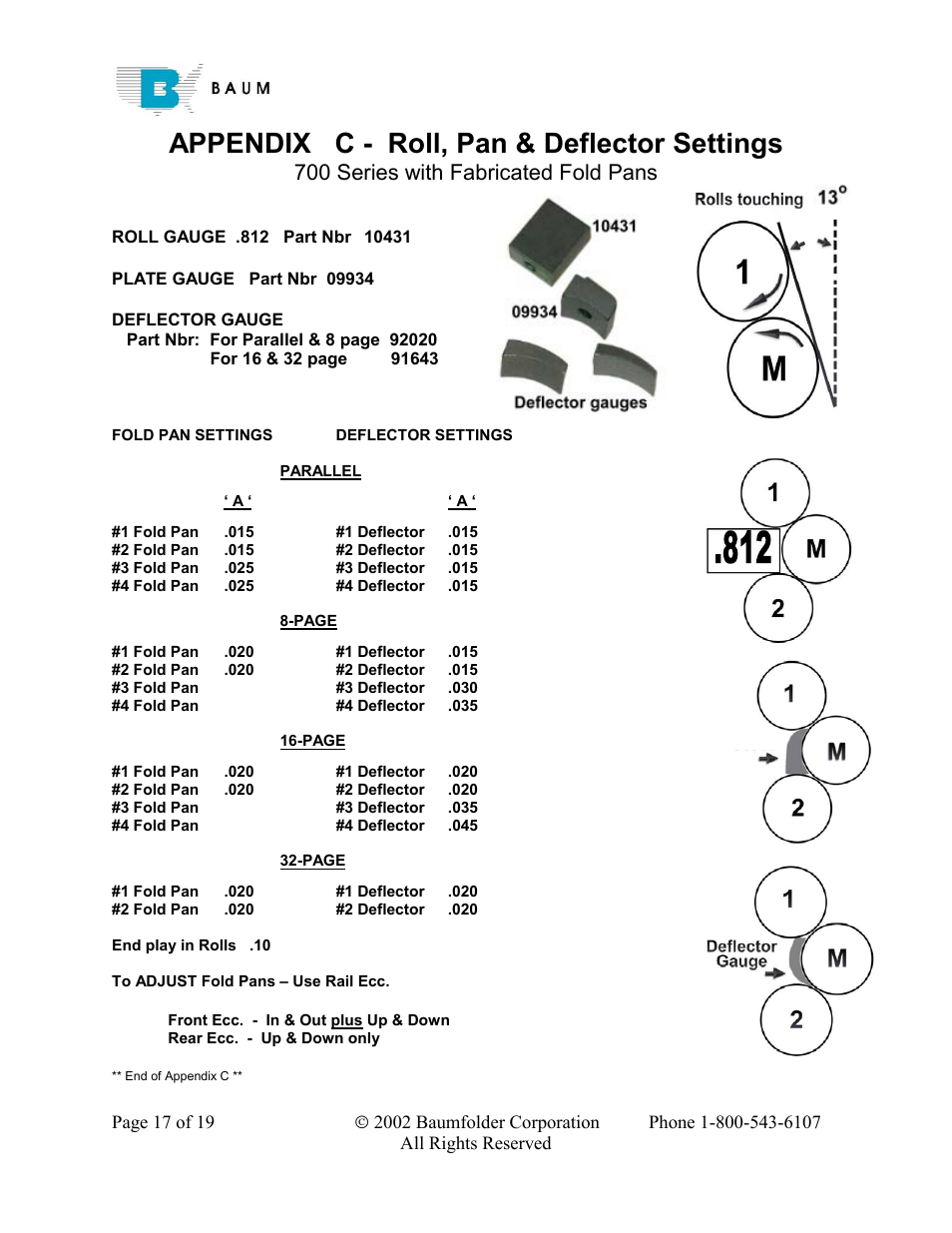

Page 17: Deflector gauge, Fold pan settingsdeflector settings
