Deflector gauge, Part nbr:for parallel 91640, Fold pan settingsdeflector settings – Baumfolder Rebuilding a 200 – 700 series folder User Manual

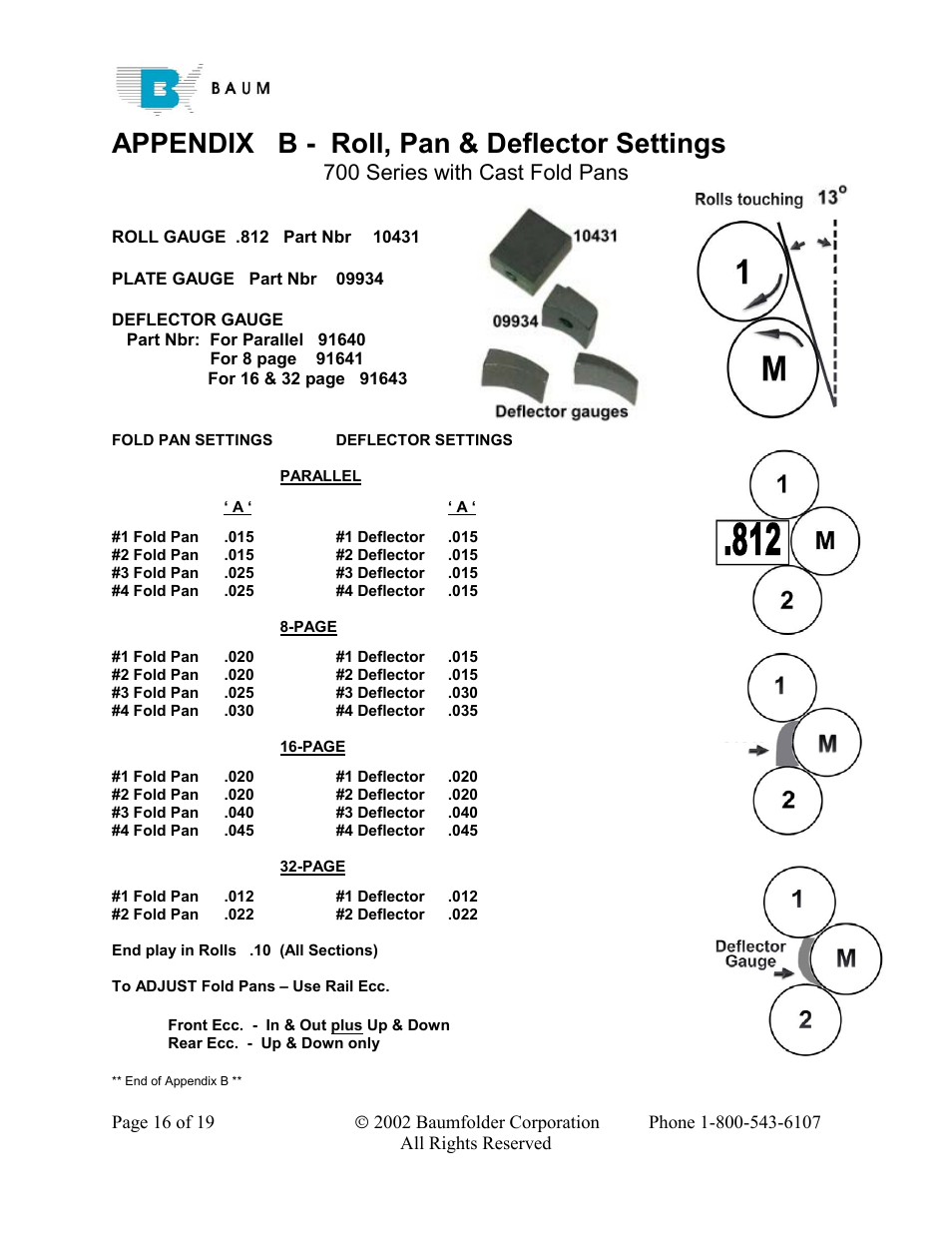

Page 16: Appendix b - roll, pan & deflector settings, 700 series with cast fold pans
