Baumfolder Flexifold: 2st Station (up to) User Manual

Page 19

PAGE 19

TP10432A-EN

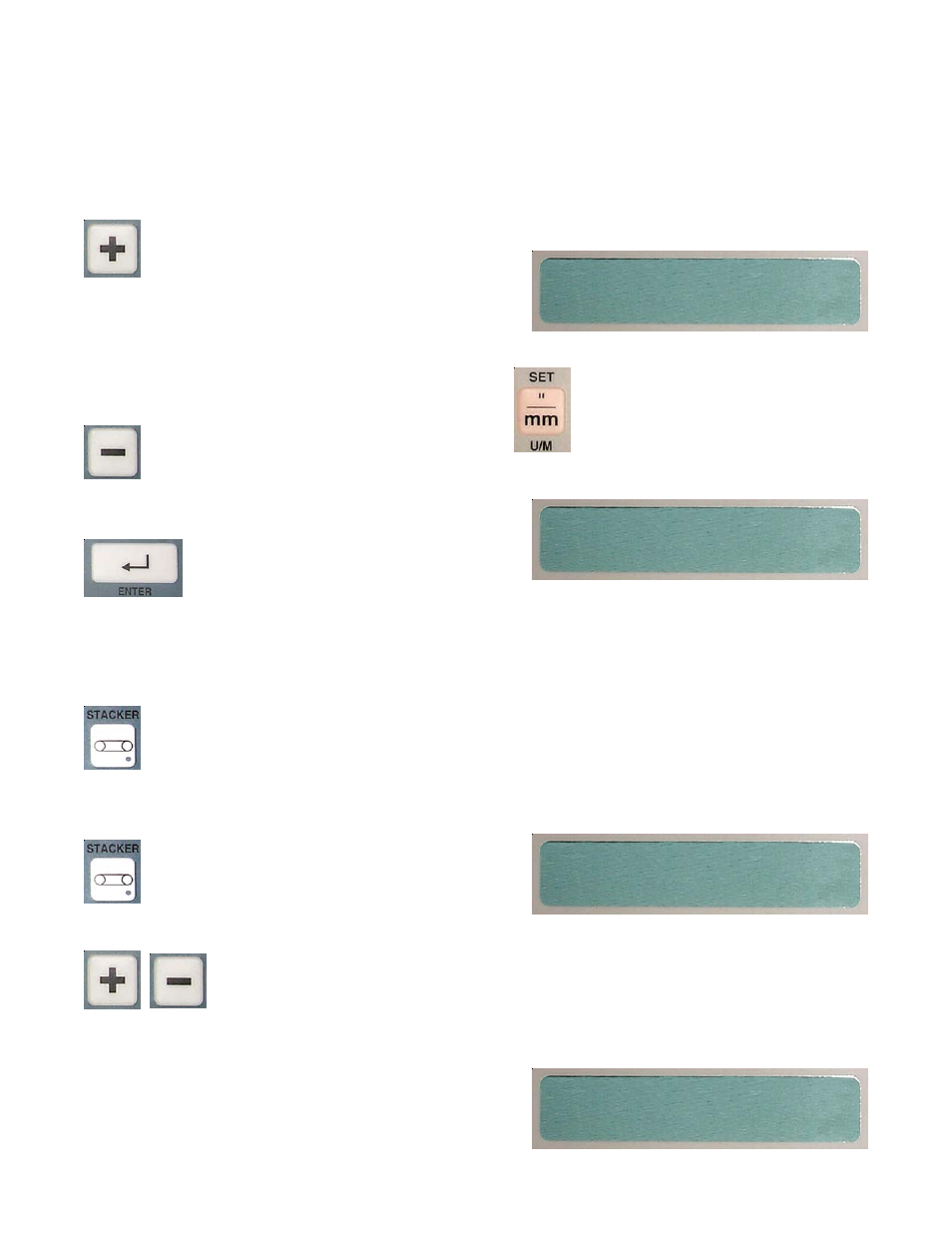

Pressing the “+” button once will increment the plate

stop 0.25mm. Holding it down for more than 2 seconds will
increment the plate stop continuously at slow speed.
Holding the “+” button down for more than 5 seconds will
increment the plate stop continuously at high speed until
you release the button or the plate stop hits the home
position switch.

Pressing the “-” button once will decrement the plate

stop position 0.25mm. Holding it down for more than 2
seconds will decrement the plate stop position at slow
speed. Holding the “-” button down for more than 5
seconds will decrement the plate stop position at high speed
until you release the button, or the plate stop hits the deflect
position switch.

Pressing the “ENTER” button will return you to

normal operation.

11.5 Stacker wheels

The stacker wheels can be set at any time from the

operating mode by pressing the “STACKER” button.

For example if you need to make an adjustment to the

stacker wheels, press the “STACKER” button during
operation.

Next use the “+” and “-” buttons to move the stacker

wheels into position.

Pressing the “+” button will increment the stacker

wheels continuously at slow speed. Holding the “+” button
down for more than 2 seconds will increment the stacker
wheels continuously at high speed until you release the
button, or the stacker wheels reach their outer limit. The
system will track the stacker wheel location and if they reach
the stop, the drive will be disabled and a message will be

NOTE: To change from English to Metric, press the

“U/M” button. Now all the dimensions will
be in metric. Thesetting will remain until this
procedure is repeated.

NOTE: If a button is not pressed within

2 minutes the machine will return
to the operating mode.

TOTAL COUNT #######

DELIVERY 101.00mm

CHANGE WITH +/-

STACKER WHEELS

AT MAXIMUM LIMIT

DEFLECT POSITION
