NOTE: If a button is not pressed within

2 minutes the machine will return
to the operating mode.

11.3 Speed

The speed of the machine can be changed by pressing

the “SPEED” button while the main drive motor is running
or stopped.

Using the “+” and “-” buttons, to adjust the speed.

The “+” button will increase the speed gradually, as

long as the button is depressed. Once the folder reaches it's
maximum speed a message will be displayed until the
ENTER button is pressed.

The “-” button will decrease the speed gradually, as

long as the button is depressed.

Once the folder reaches it's minimum speed a message

will be displayed until the “ENTER” button is pressed.

Full speed range travel of the motor takes 10 seconds.

Press the “ENTER” button to return to normal operation.

11.4 Fold Plates

The fold plate can be set at any time from the operat-

ing mode by pressing the “PLATE” button that corresponds
to the fold plate which needs to be adjusted.

For example if you need to make an adjustment to the

number 2 fold plate you would press the “PLATE 2”
button.

Next use the “+” and “-” buttons to move the stop into

position. Once either button is pressed the display will
change to display the actual location of the plate stop.

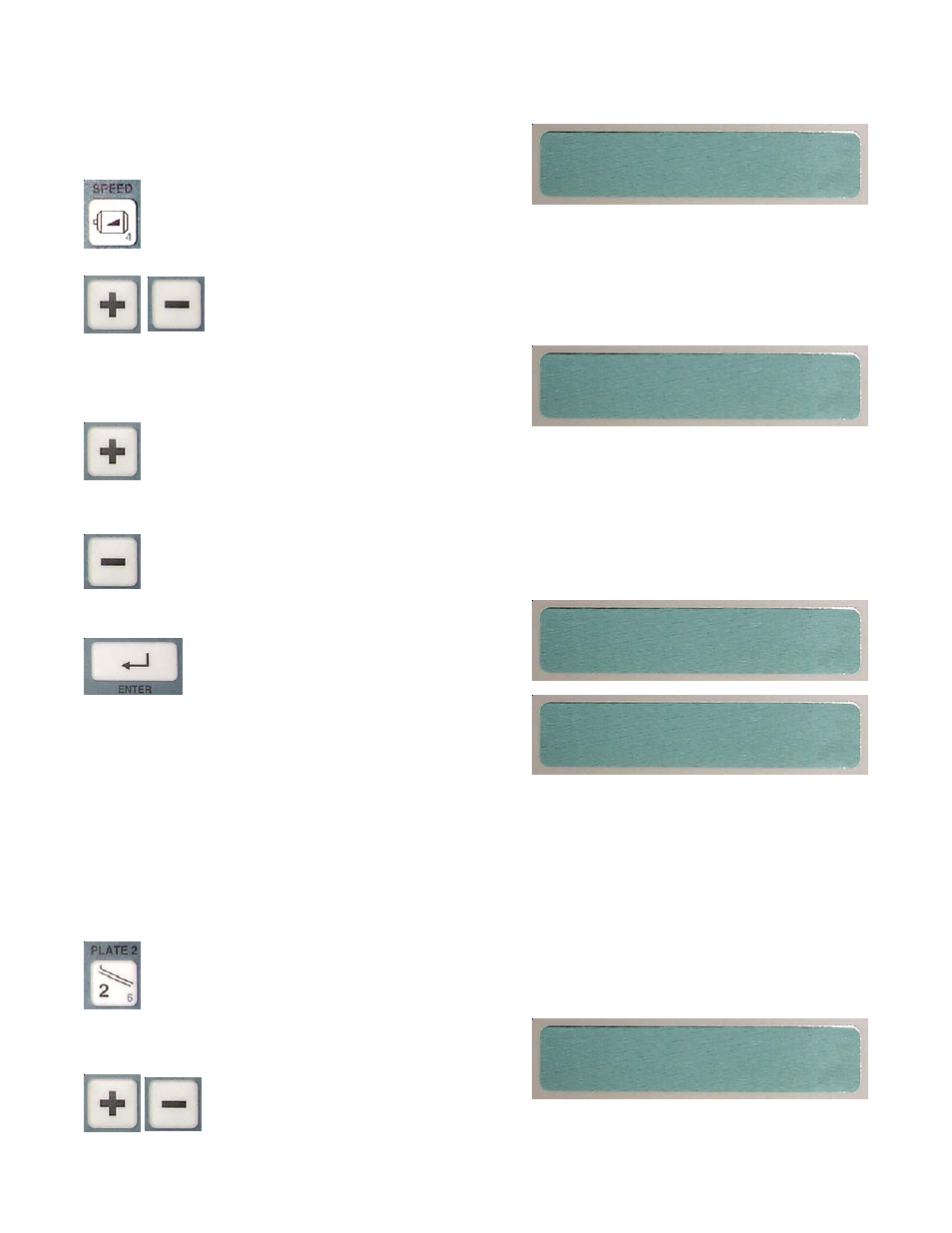

SPEED 60%

CHANGE WITH +/-

MAXIMUM SPEED

MAXIMUM SPEED
CHANGE WITH +/-

CHANGE WITH +/-

MINIMUM SPEED

CHANGE WITH +/-

TOTAL COUNT #######

PAN 2 STOP 125.00mm

CHANGE WITH +/-
