8.8

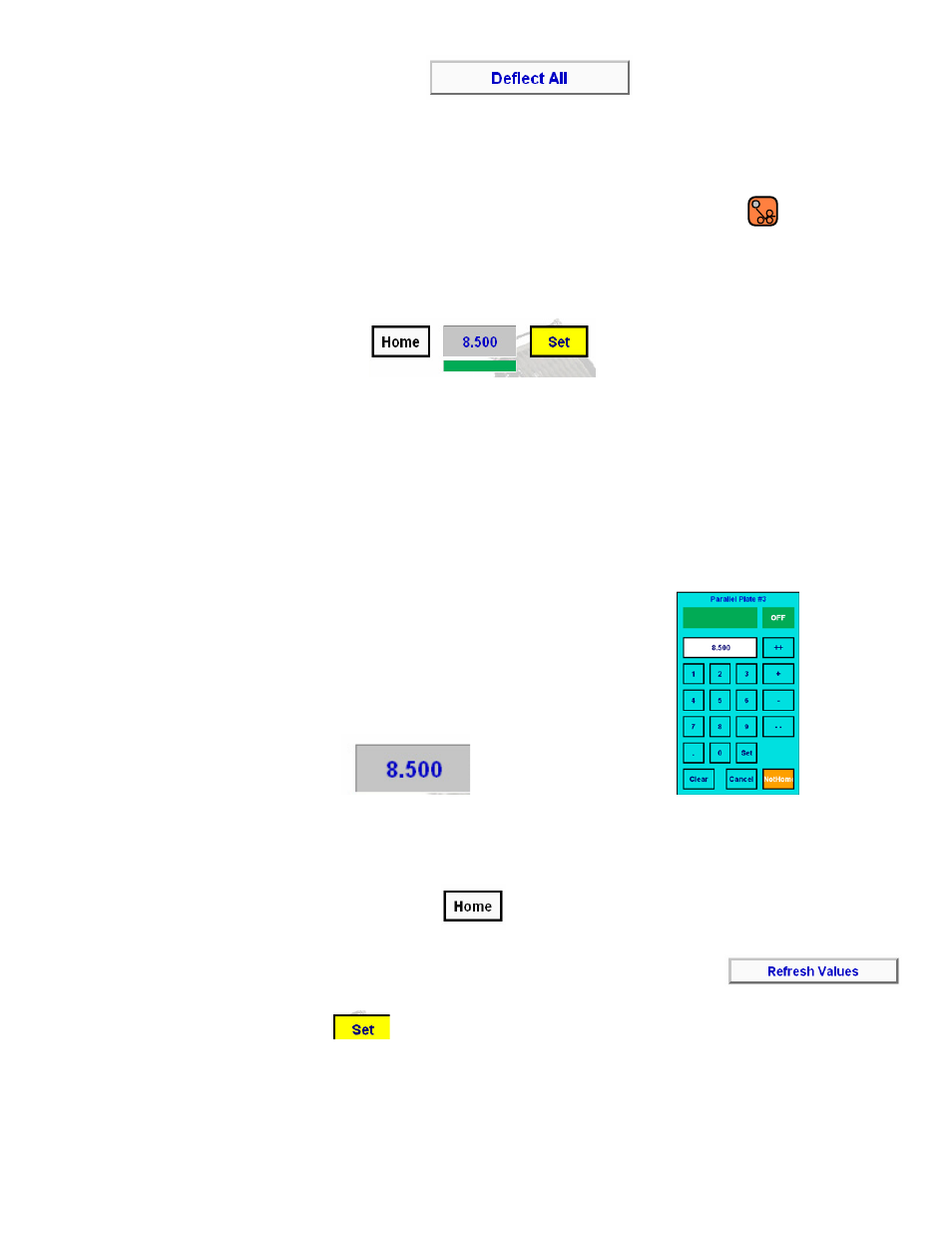

Then press the “Deflect All” button,
NOTE: FOLDER DRIVE MOTOR
MUST BE OFF AT THIS TIME
.
8.9
Set folder speed to 6 on the dial.
8.10 Set folder mode to single sheet mode by pressing the single sheet mode button
on the folder
control panel.
8.11 Press “Home” button for pan to be calibrated. The pan will move to the home position.
8.12 Press “Set” button for pan to be calibrated. The pan will move its calibration position. This indicator
will change to yellow when the plate is moving and back to green when it is in position.
8.13 Start folder and run three sheets.
8.14 Check to see if the sheets are folded square. If so continue to step 8.14 if not make the proper
adjustments to square the fold and repeat steps 8.10 thru 8.13.
8.15 Verify the 11 X 17 is folded exactly in half, if it is jump to step 8.20. If not touch the position
display box for that pan
and a pendant will popup
Use the
keypad or the + or – buttons to correct the fold. You can enter a new value and touch set or touch
the +, ++, - or – to adjust the fold. Run three more sheets and repeat this step until the paper is
folded exactly in half.
8.16 Press the “Home” button for that pan.
8.17 After the pan reaches it’s home position touch the “Refresh Values” button,
8.18 Press the “Set” button.
8.19 Pan will now move into position.
8.20 Run three more sheets and verify the signiture is folded exactly in half, if so continue to step 8.21. If
not repeat steps 8.15 thru 8.20.
