Mounting the wall bracket
The Socket Unit can be mounted on
the enclosed wall bracket in either a
horisontal or vertical position.
We recommend that you follow this
procedure when you mount the wall
bracket:
– Use the wall bracket to mark the
placement of the holes to be drilled in
the wall.

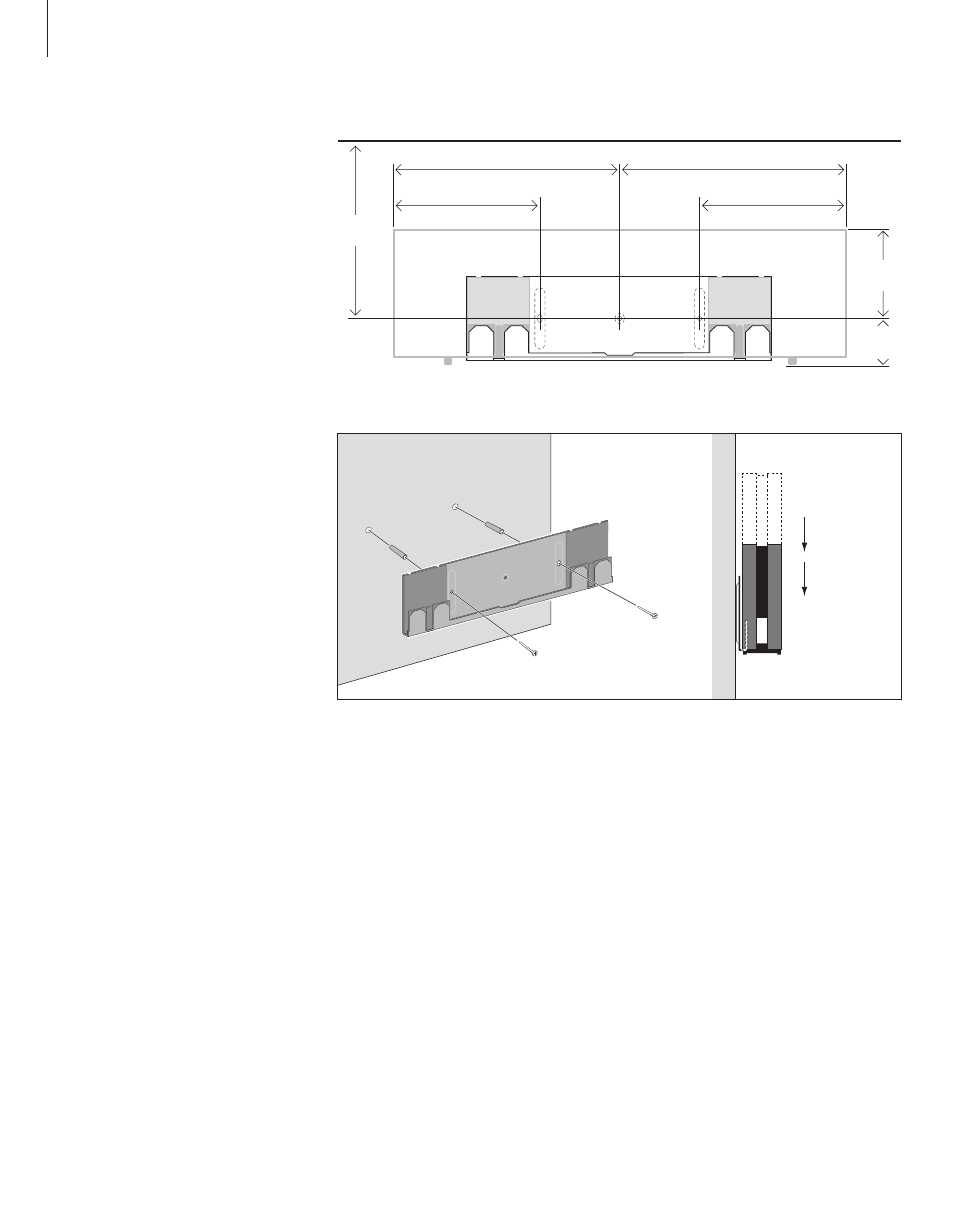

The dimensional sketch on this page
shows the placement of the Socket unit
compared to the wall bracket
– Mount the wall bracket on the wall
– Mount the Socket unit on the wall
bracket. If you place the unit close to
the floor, we suggest that you connect
all cables before mounting the Socket
unit on the bracket
See the special notice about light partition
walls on the next page.
Should questions arise concerning screws
or fasteners, please contact your Bang &
Olufsen retailer.
Mounting the wall bracket: Two screws/
fasteners with a minimum load rating of 6 kg
(13 lbs.) each must be used.
Fastening the Socket Unit to the Wall bracket:
Slide the Socket unit down into place on the wall
bracket. Make sure that the socket unit is pushed
all the way down to engage the two lock
mechanisms.
27 cm
10.6"
5.5 cm
2.2"
17.5 cm
6.9"
17.5 cm
6.9"
27 cm
10.6"
10 cm
3.9"
20 cm
8"
