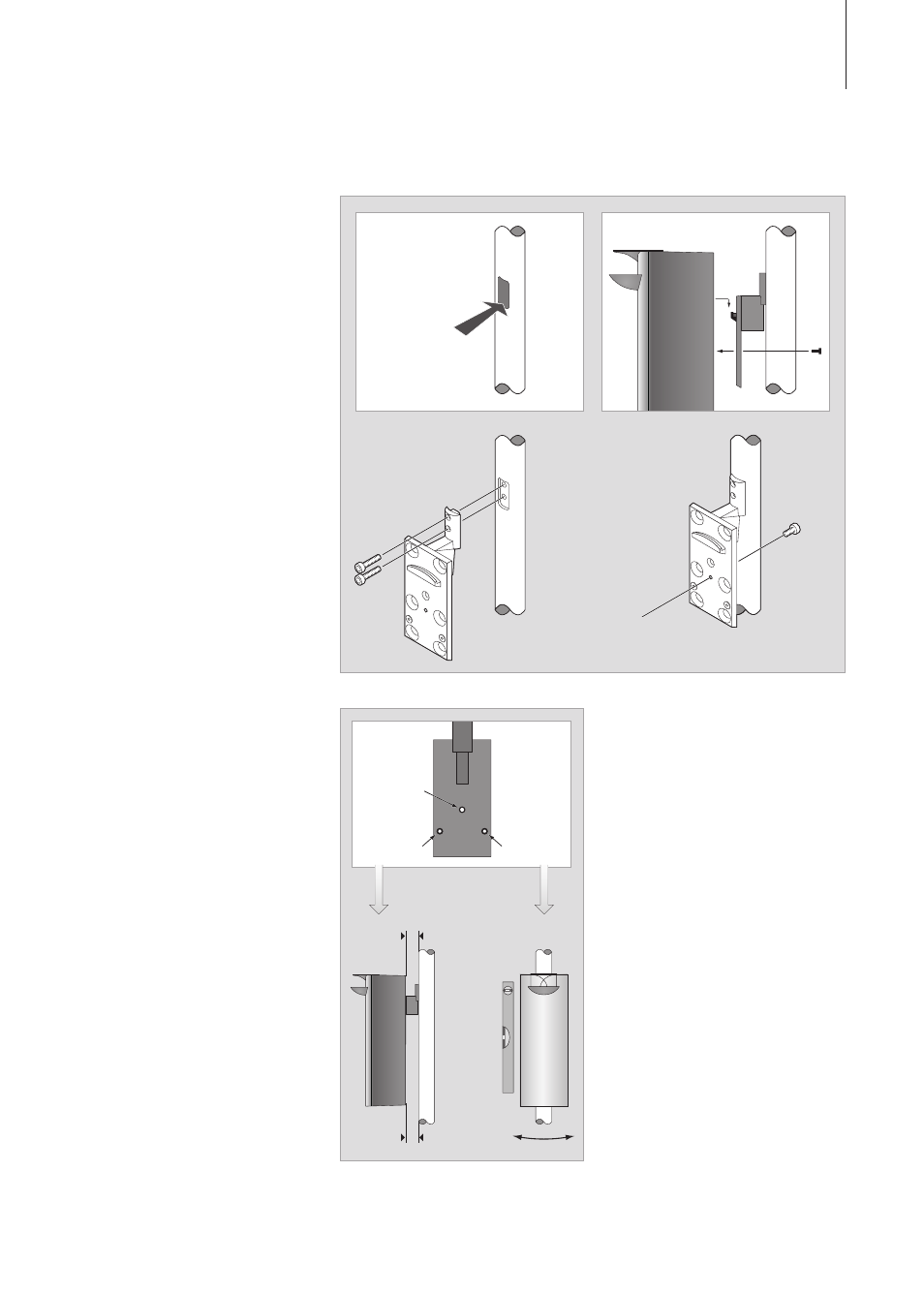

Here is shown how to fasten
the loud speaker with a ‘type 1
bracket’ to a Bang & Olufsen
‘single-column’ stand (or wall
bracket). Use the same procedure
if you wish to fasten the loud-
speaker to a Bang & Olufsen
‘double-column’ Stand – with a
‘type 2 bracket’.
a Remove the small cover (if any)
on the stand. Press the cover as
shown, and it will come loose.
b Fasten the bracket to the stand or
wall bracket. Use the two longest
screws (M5 × 25 mm) – four
screws for a ‘type 2 bracket’.
c Fasten the loudspeaker to the
bracket. Use the short screw
(M5 × 8 mm). However, do not
fully tighten it until you have made
the adjustments mentioned to the
right (d). Adjustments: Use the two screws
(d) to align the loudspeaker with
the stand or wall bracket. Then
position the loud speaker so that the
side is vertical, and finally tighten
the screw (c).
b
c
c
d
c
d
a
5
d c
