Set up the loudspeaker
We recommend that you follow
this procedure:
– Disconnect your Bang & Olufsen
system from the mains.
– Mount the loudspeaker to the
Bang & Olufsen stand or wall
bracket as explained on the next
page.
– Connect the loudspeaker as
explained in ‘Cable connections’
(pp. 6–7).
– Set the POSITION switch to the
correct setting. This is explained
in ‘Adapt the loudspeaker to
your room’ (pp. 8–9).
– Connect the entire system to the
mains again.

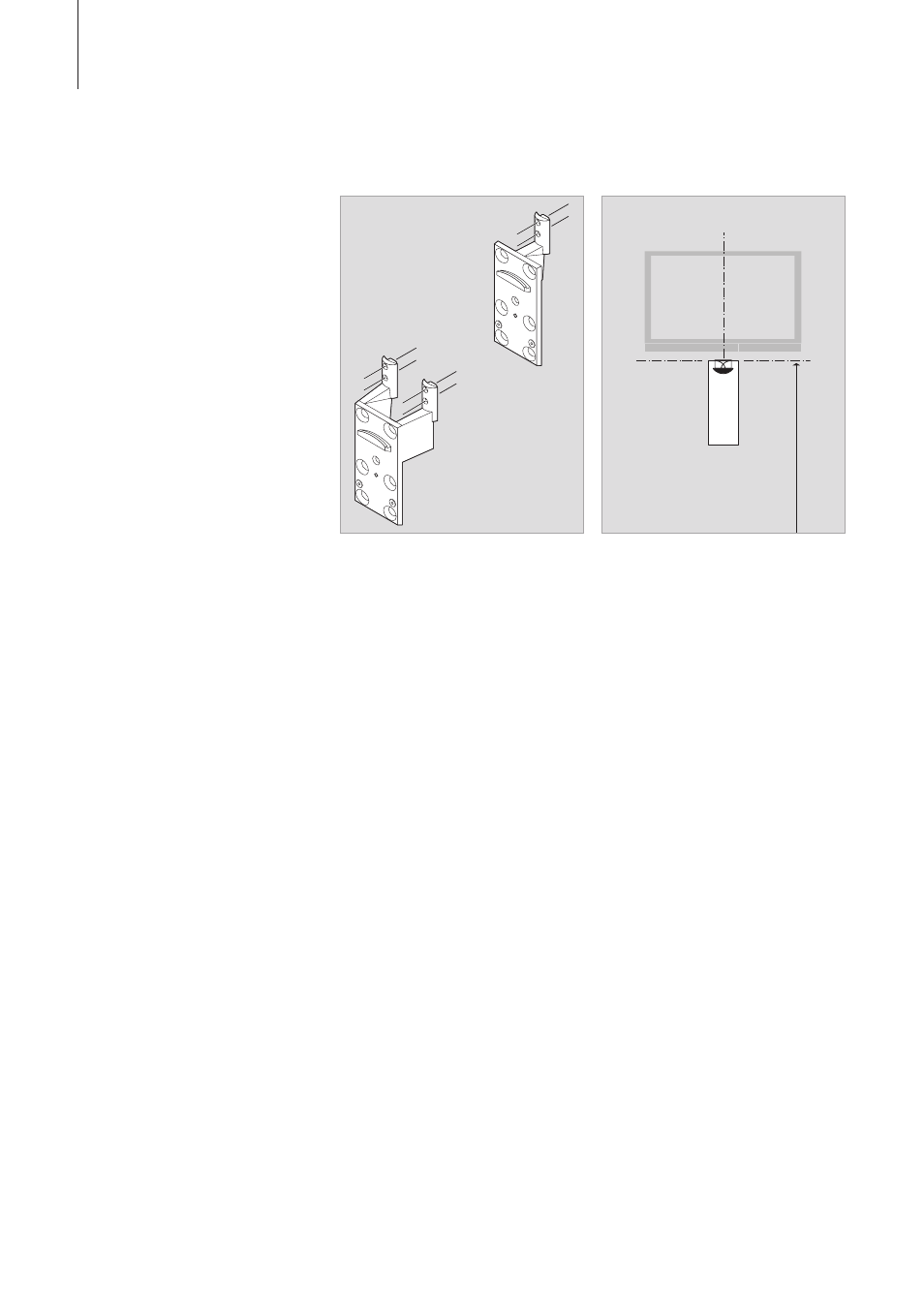

BeoLab 7-4 brackets: The loud-
speaker must be fastened to one of
the brackets shown here, and on a
suitable Bang & Olufsen stand or
wall bracket.
Use the ‘type 1 bracket’ when the
loud speaker will be fastened to one
of the ‘single-column’ Bang &
Olufsen stands or wall brackets.
Use the ‘type 2 bracket’ when the
loud speaker will be fastened to one
of the ‘double-column’ Bang &
Olufsen stands.
Placement: The loud speaker must
be placed centred below the
screen. Always place the loud-
speaker in an upright position!
If the loudspeaker is mounted on the
wall, for example in a BeoVision 4
setup, we recommend that you
place the loud speaker 5–15 cm
(~ 2–6") below the screen, and no
more than 98 cm (~ 35") above the
floor.
4
‘Type 1 bracket’
‘Type 2 bracket’
