Bernard Q200 - Manual (Page 2)

©2007 Bernard Printed in U.S.A.
AM P
1
2
3
4
5
6
13
9
9 9
10 10 10
11
12
15
16
16
21
22
23
11
14
7
8
17
18
19
20
24
25
26

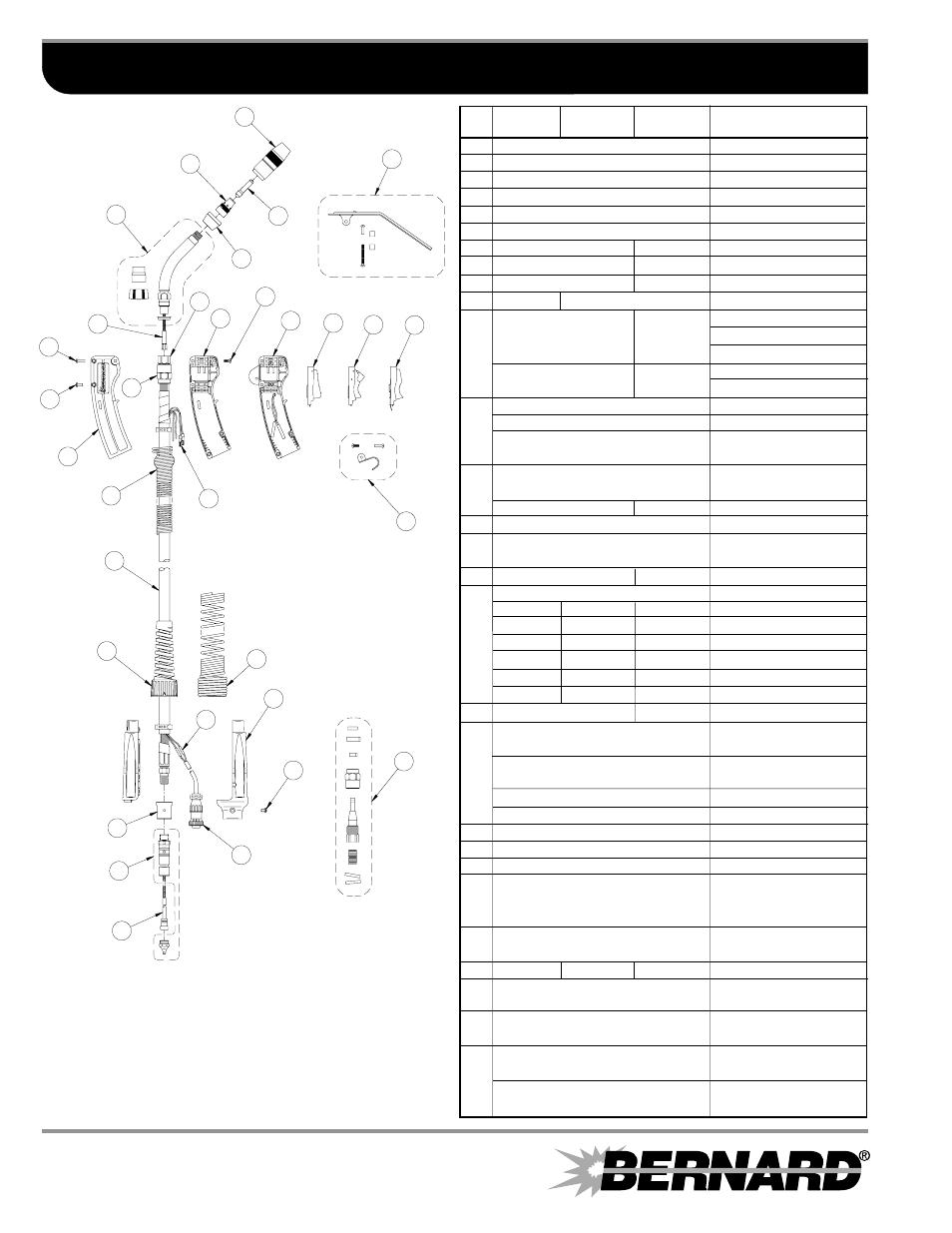

Replacement Parts List
*1880155 & 1880198 Handle Kits include halves, screws & posts. DSA-1
Handle Kits include halves, screws, posts, toggle switch and guard.
**Patent Pending
†1982, 1983Q & 1984Q Rear Cone Nut Repair Kits include jacket clamp,
conduit clamp, cone nut, end fitting, nipple, spacer & butt connectors.
ITEM Q200 Q300 Q400
# PART # PART # PART # DESCRIPTION
1 See Centerfire Spec Sheet Nozzle Assy
2 See Centerfire Spec Sheet Contact Tip
3 See Centerfire Spec Sheet Gas Diffuser
4 See Centerfire Spec Sheet Cap
5 See Neck Spec Sheet Neck
6 See Jump Liner Spec Sheet Jump Liner
7 4213B 4313B Stay-Tite™ End Fitting
8 4305 1540003 Stay-Tite™ Cone Nut
NS 4991 1520017 Conduit Clamp (2 Req'd)
NS 4823 4939 Jacket Clamp (2 Req'd)
9 1880155 1880198 Handle Kit, Standard Trigger*
Handle Kit, Locking Trigger*
Handle Kit, Dual Pull Trigger*
N/A DSA-1 Handle Kit, D/S, Std. Trigger*
Handle Kit, D/S, Locking Trigger*
10 5662 Trigger, Standard
5662L** Trigger, Locking
2690001 Trigger, Dual Pull, 3 Wire
(With Insulated Terminals)
11 4207 Post Fastener (1 Req'd - Q200
& Q300) (5 Req'd - Q400)
2030004 N/A Post Fastener, Short (4 Req'd)
12 4209 Handle Screw (5 Req'd)
13 2660001 Terminal, Quick Disconnect
(2 Req'd)
14 N/A 2520042 Handle Spring
15 Replacement Cable With Fittings
1060120 1060108 1060114 8' (2.44 m)
1060121 1060109 1060115 10' (3.05 m)
1060122 1060110 1060116 12' (3.66 m)
1060123 1060111 1060117 15' (4.57 m)
1060124 1060112 1060118 20' (6.10 m)
1060125 1060113 1060119 25' (7.62 m)
16 2520033 2520041 Strain Relief
17 Rigid Strain Relief Kit
(Includes: Top & Bottom Halves)
2520073 Strain Relief with Installed Gas
Pin (Bernard Direct Plug)
2520069 Strain Relief (Euro Direct Plug)
2520066 Strain Relief (All Other DP's)
18 4932 Butt Connector (2 Req'd)
19 See Direct Plug Spec Sheet Direct Plug Components
20 See Liner Spec Sheet Liner
21 1880012 Heat Shield Kit (Includes:
Heat Shield, Screws, Posts,
& Spacers)
22 1790002 Hang Up Hook Kit
(Includes: Hook, Screw, & Post)
23 1982 1983Q 1984Q Rear Stay-Tite™ Repair Kit†
24 1010027 Adapter Block (Not Req'd on
Bernard or Euro Direct Plug)
25 W11127-002 Screw, Strain Relief (Not Req'd
on Bernard Direct Plug)
26 GN2021 Electrical Plug - Non D/S (Not
Req'd on Bernard or Euro DP)
20006A Electrical Plug - D/S (Not Req'd
on Bernard or Euro Direct Plug)
