Cable connections
POSITION switch
This switch has three settings: FREE,
WALL, and CORNER. Which setting to
use is explained in ‘Adapt BeoLab
3
to your room’ (pp. 8–10).
SETUP switch
This switch has three settings:
RIGHT, LEFT, and LINE.
Set the switch to RIGHT or LEFT,
when connecting loudspeakers in
a Bang & Olufsen system. Set the
switch to LINE when connecting
loudspeakers in a non­Bang &
Olufsen system.
POWER LINK and LINE socket
Use this socket to connect the
loudspeaker to your system…
…To a Bang & Olufsen system:
Use a Bang & Olufsen Power Link
cable to connect the loudspeaker
to your system. Remember to set
the SETUP switch to RIGHT and
LEFT (the right and left sound
channel), respectively.
…To a non-Bang & Olufsen
system:
Use a special adapter with an
ordinary phono/RCA plug in one
end, and a DIN­plug in the other
(optional accessory, available from
your Bang & Olufsen retailer).
Remember to set the SETUP switch
to LINE.
The LINE signal must be a volume­
controlled line­level signal not
exceeding 3 V
RMS
.
The loudspeaker can be used
with Bang & Olufsen audio,
video and link systems. It may
also be used with non-Bang &
Olufsen systems.
A
1
2
6

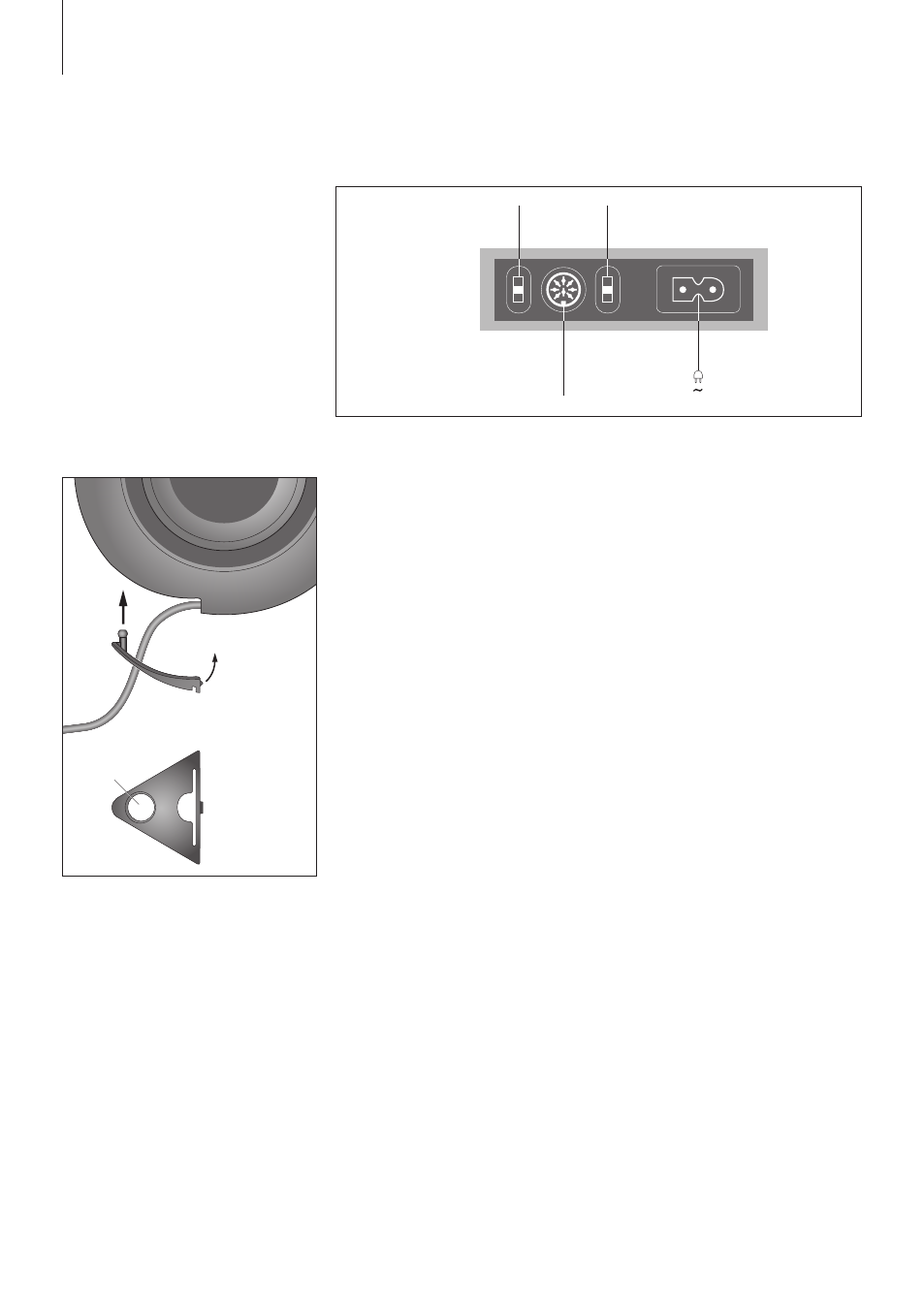

Cover for socket panel: Run the
two cables through the hole (A),
before you connect them to the
loudspeaker.
POSITION switch SETUP switch
POWER LINK and
LINE socket
The socket panel is located on the bottom part of the loudspeaker.
