Adapt the subwoofer to your setup
Setting the EXT. and INT. BASS
MANAGEMENT switch
Depending on your setup, you
have to make settings for the bass
management.
– Set the switch to ‘EXT. BASS
MANAGEMENT’ if the
subwoofer is connected to a
subwoofer socket on a product
and no speakers are connected
to the subwoofer.
– Set the switch to ‘INT. BASS
MANAGEMENT’ if other
speakers are connected directly
to the subwoofer.
Setting the POS. switch
Use the position switch to filter out
the natural bass change obtained if
the subwoofer is placed, for example,
in a corner, as compared to a more
freestanding position.
The setting of the POS. switch is
based on the number of surfaces
the subwoofer is in close proximity
of (within approx. 50 cm).
The POS. switch has three
settings:
POS.1: Use this setting if the
subwoofer is close to one
surface (freestanding in a room
or on a wall). Shown by light
grey areas in the illustration.
POS.2: Use this setting if the
subwoofer is placed close to two
surfaces (placed on the floor close
to a wall). Shown by medium
grey areas in the illustration.
POS.3: Use this setting if the
subwoofer is placed close to
three surfaces (in a corner).
Shown by the dark grey areas in
the illustration.
The positions mentioned are
guide lines only. You may set the
POS. switch to any of the three
positions depending on your
sound preference.

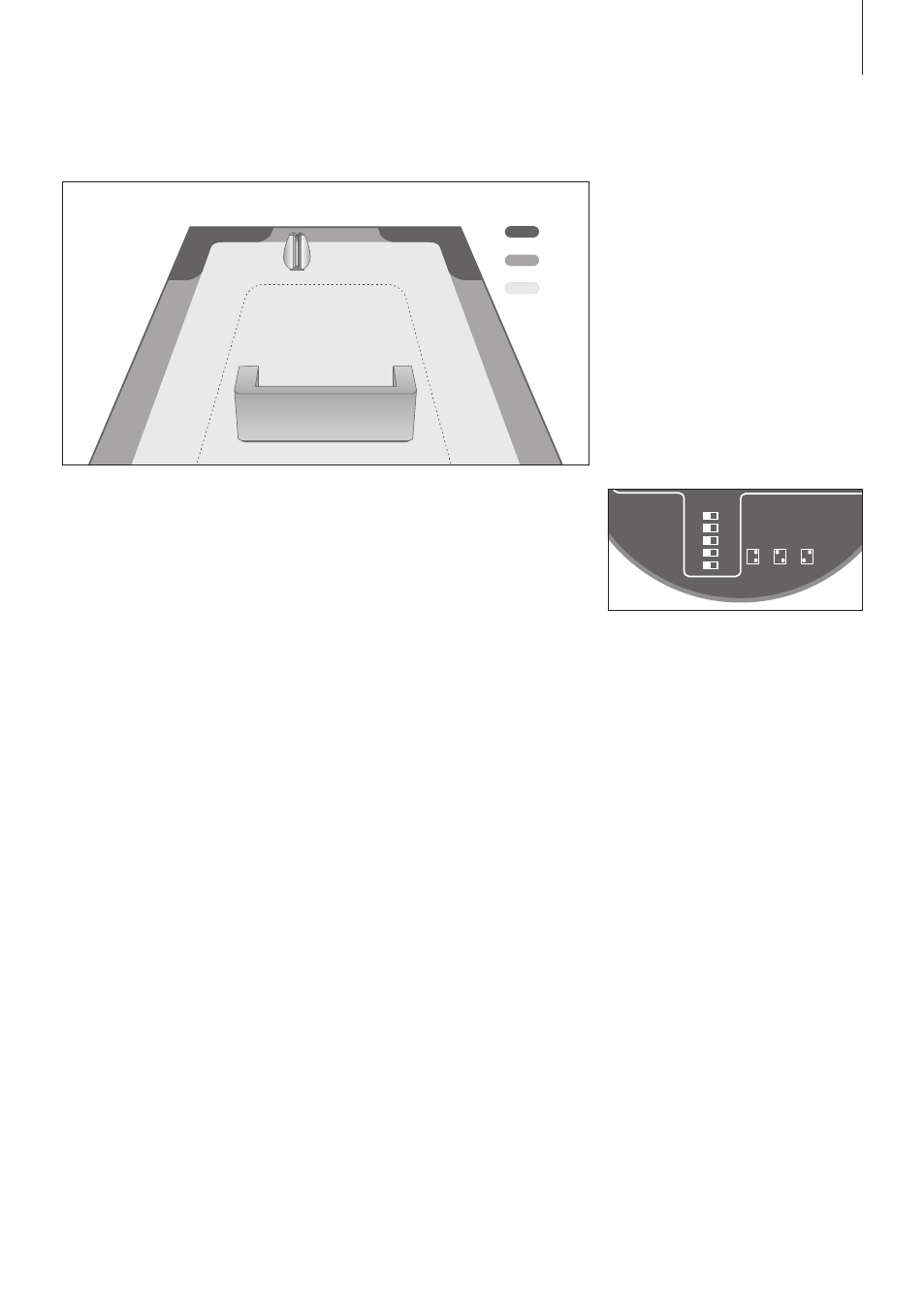

POS. 3
POS. 2
POS. 1
POWER LINK IN
POS.
POS.
EXT.
- dB
LINE
POWER LINK OUT
INT. BASS MANAGEMENT
POWER LINK
0dB
POS.2 POS.3 POS.1
9
Never place the subwoofer
behind your listening position.
We recommend that you avoid
placing any of your loudspeakers
in the area inside the thin
dotted line.
Set the POS. switch depending
on your setup.
