3. Hardware Installation

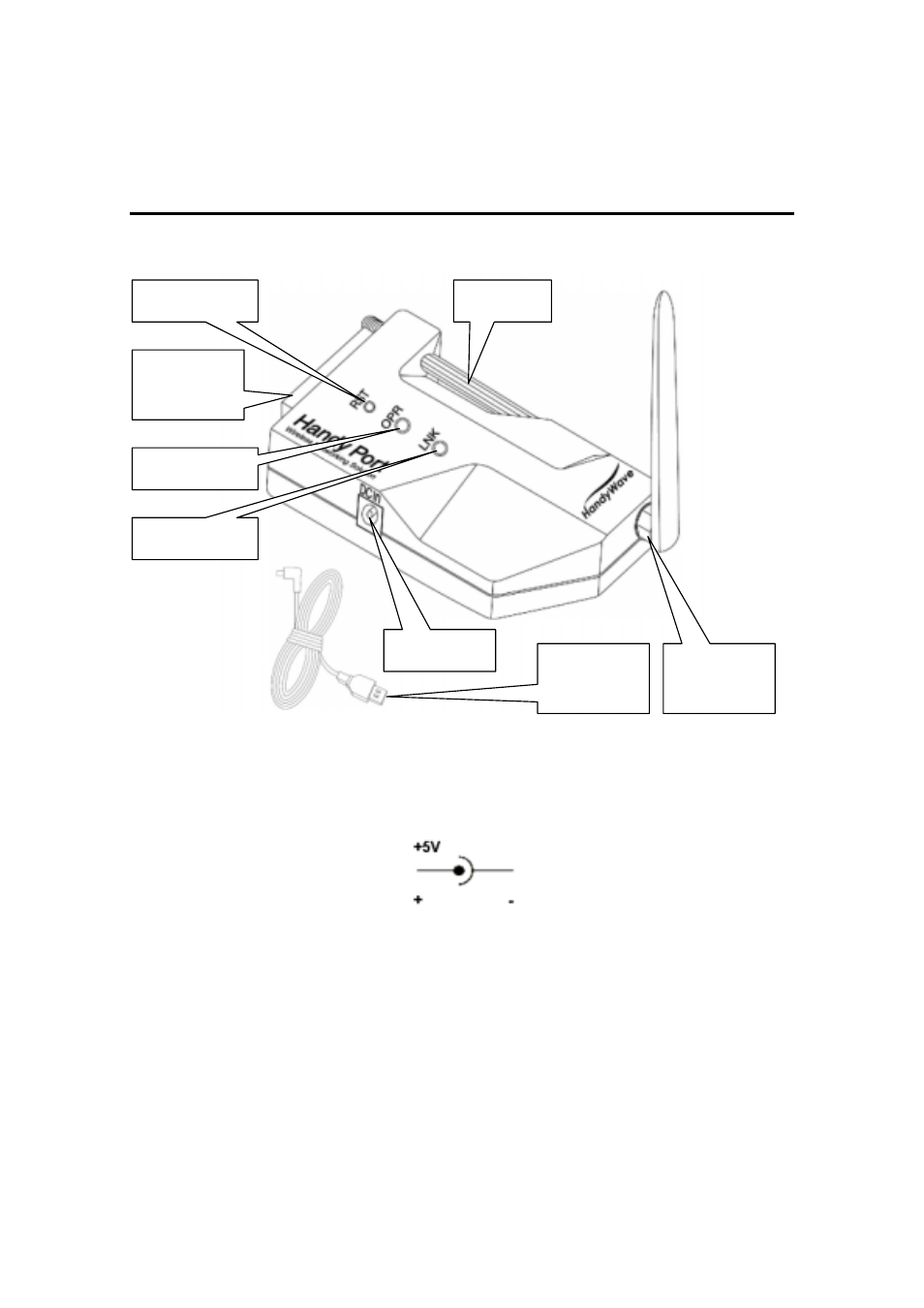

3.1. Hardware Description

3.2. Power Supply

You can supply power to the HPS-120 as follows:

Use an AC/DC converter (Output Power: +5 ~ +12Vdc / 300mA).

Use a provided USB cable.

You can supply power via 9

pin of D_SUB 9 Pin connector.

3.3. Install Procedure

Step 1: Assemble a provided antenna to HPS-120 body.

Step 2: Plug a HPS-120 into the COM port of device.

Step 3: Power on.

Step 4: Configure the HPS-120, if necessary.

Antenna /

Connector

DC In Jack

Screw

RS-232

Connector

RST Button

OPR LED

LNK LED

USB Cable

for Power
