Analog Out Screen

Io XT provides a high-quality analog component or composite + Y/C output, generally
used for monitoring. This screen shows the current settings for that analog output, and
allows you to re-configure it when desired (format and black-level).

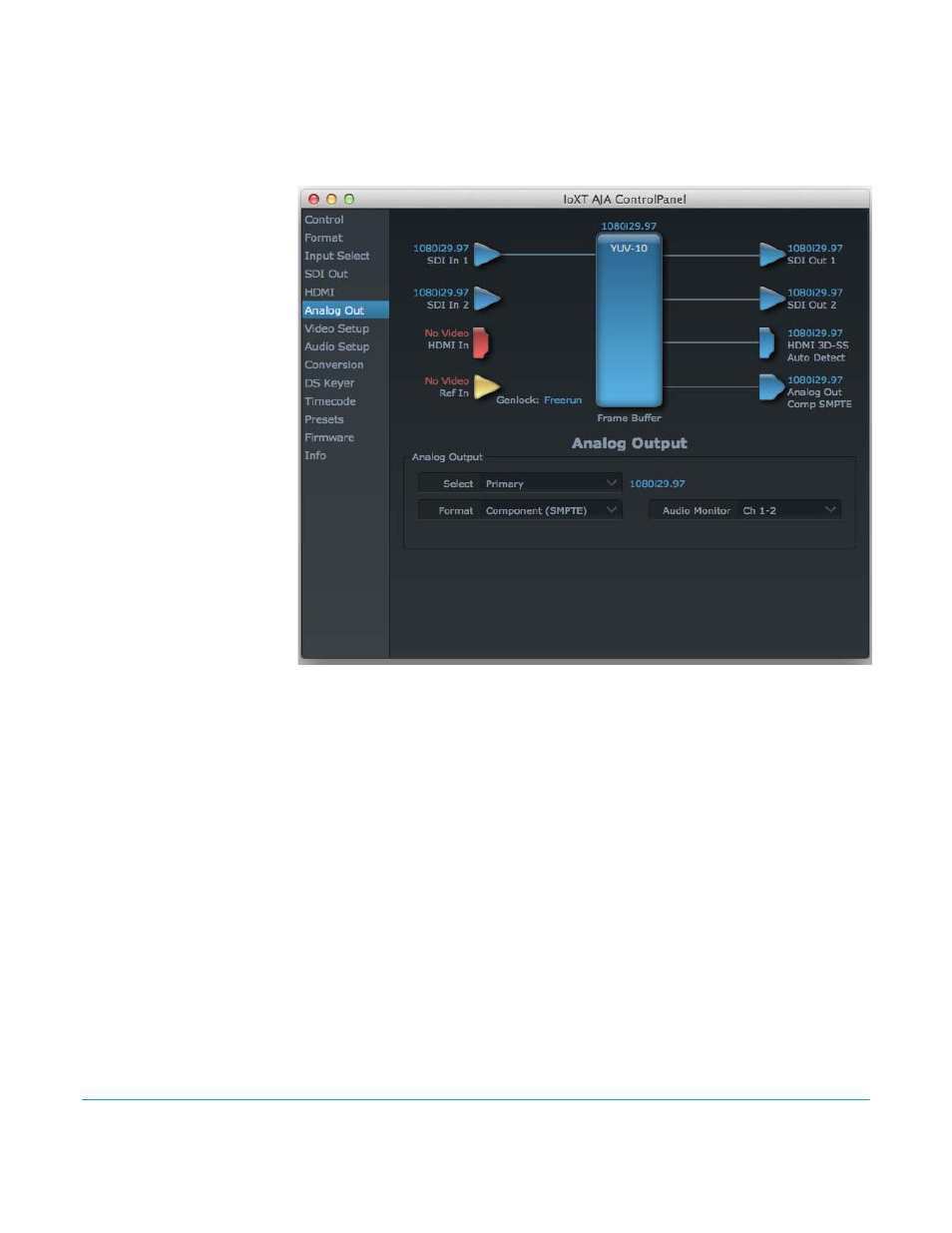

Figure 33. AJA Control Panel, Analog Out Screen

Analog Out Screen

Settings

Analog Output:

Select Primary or Secondary (any conversion applied) for the analog output; if a
conversion is applied, you’ll see the conversion icon appear on the block diagram. Next,
select the video format from the Format pulldown.

Analog formats can be:

Composite +Y/C (one composite output and a simultaneous Y/C [S-Video] output)

Component (SMPTE/EBU N10)

Component (Beta)

Component (RGB)

Audio Monitor:

Here you select which two channels will be mapped to the analog audio stereo output
(headphone jack).
