SDI Output Screen
The SDI Output screen shows the current settings for both of the SDI outputs. Because
the outputs can be configured independently, one output may be the Primary format
and the other output may be the Secondary format. If an input/output has no video, it
will be indicated on the block diagram (“No Video”).
3D Stereoscopic
Workflow
Through SDI, you can output Discrete Left and Right Eye feeds with a simple Stereo
button choice in the AJA Control Panel. Additionally, muxed stereo output is possible
using a single SDI output. AJA hardware and software works in close collaboration with
CineForm's Neo3D software tools and CineForm codec to allow stereoscopic editorial
and viewing when working with professional quality video editing applications.
NOTE: This feature works within applications that support the CineForm video delivery method.
SDI Output 1 and 2 Configure SDI Out 1 and 2 via pulldowns:

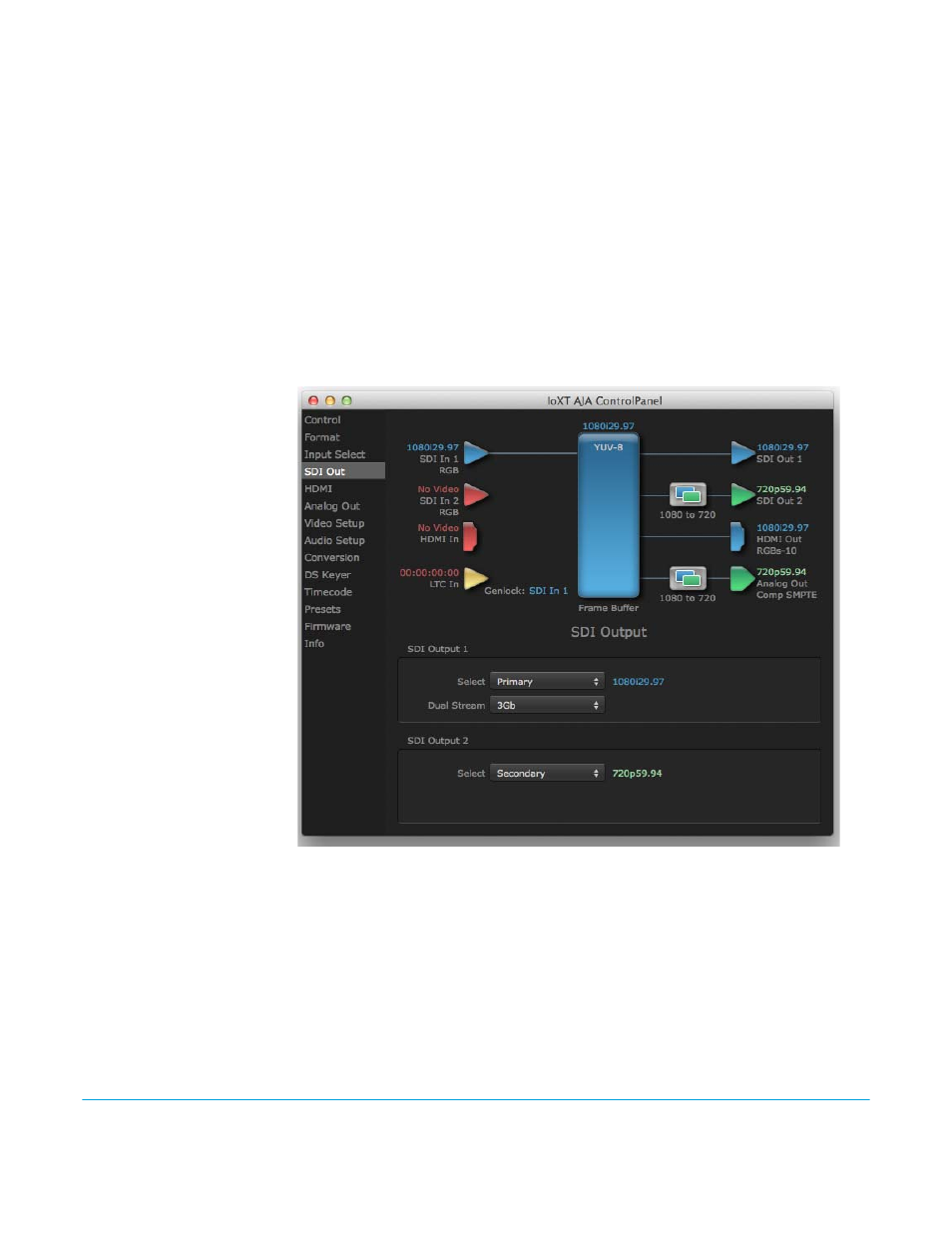

Figure 30. AJA Control Panel, SDI Output Screen
SDI Output Options
Primary: When selected, this indicates that the SDI output is set to the same format as the
framebuffer. That value will be listed in blue.
Secondary: When selected, this indicates that the SDI output is set to a format different from the
framebuffer (Primary Format). That secondary format value will be listed in green. This
shows that active processing of the video is taking place (format change and possibly
even up/down-conversion).
