AJA HDP HD-SDI/SDI to DVI-D and Audio Converter User Manual — I/O Connections

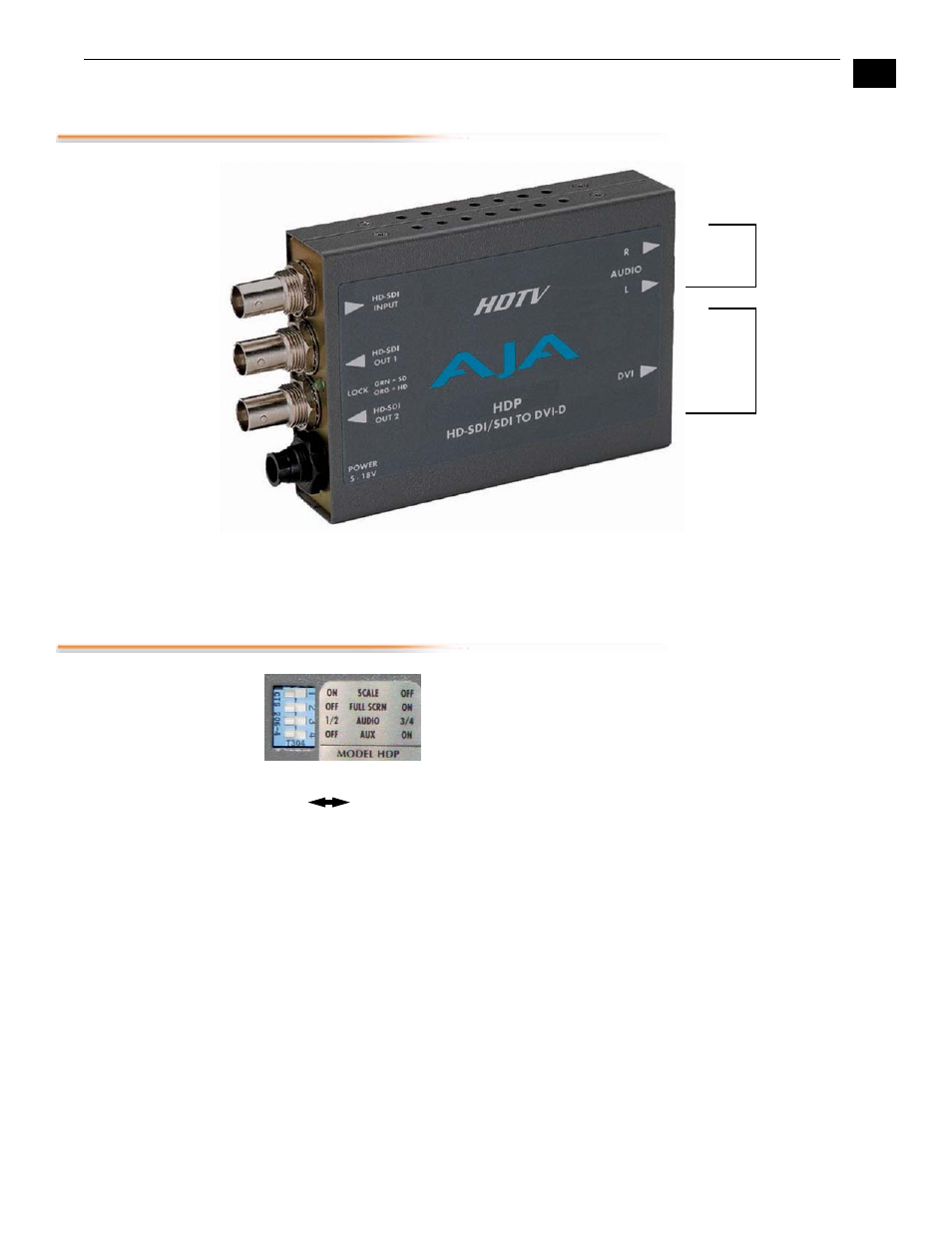

I/O Connections
HDP Converter
User Controls
The user interface for the HDP is a 4-switch DIP accessible
through a cut-out in the bottom of the unit. Use the DIP
switches to enable/disable and configure scaling modes, and
assign which AES audio channels are disembedded. An internal
Jumper block with 3 jumpers allows further configuration
possibilities in the event your application doesn’t require the
factory defaults.
The exact function of each DIP switch and the jumpers are
described on the following pages.
SD/HD-SDI Input
Output
2 Channel
BNC
SD/HD-SDI Loop
Output 1
+ 5-18VDC
Power
Input
DVI Connector
SD/HD-SDI Loop
Output 2
Unbalanced
Analog
Audio
(RCA Jacks)
HDP DIP Switches
