6
Control Functions In addition to selecting output format, the 8-position dipswitch also controls many
other configuration settings of the RH10MD card. These are described in the
following table.
* For Betacam 525 levels, select Component , YPbPr , and set Pedestal to “On.”

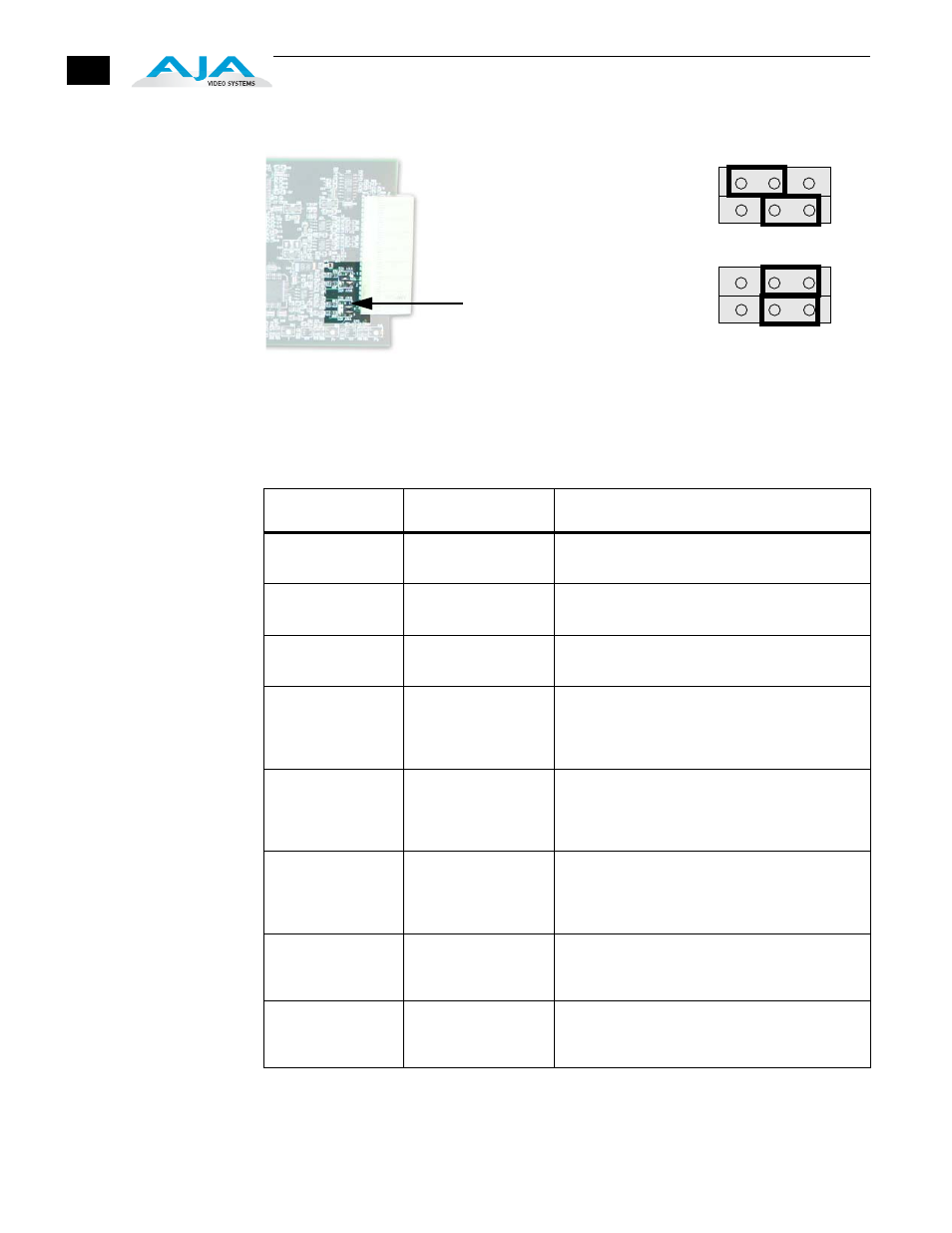

Select Output
Format
Jumpers to
1
2
3
4
SDI ANA
SDI ANA
This example shows SDI
selected for output 1 BNC,
analog output for 2 BNC, and
analog for 3 and 4 BNCs.
Switch Number Description Details
1 Analog Format UP = Component
DOWN = Composite
2 Component format UP = YPbPr
DOWN = RGB
3 Pedestal UP = Pedestal Off
DOWN = Pedestal On
4 Crop UP = Horizontal Edges cropped off from input
lines; all output lines are used
DOWN = Black Bars top and bottom; all of input
line is visible horizontally
5 Monitor UP = 4:3 monitor; S4 selection in effect
DOWN = 16:9 monitor; S4 has no effect; uses
all input lines and pixels to make a full screen
raster
6 Focus UP = not in focus mode
DOWN = Focus mode; overrides S4 & S5.
Passes the middle 720 pixels and 486 lines with
no filtering
7 Graticule UP= Graticule Off
DOWN = Display Graticule showing safe area
for 4:3 material on the 16:9 raster
8 Composite All UP = Composite on all analog outputs. S l must
be down for this switch to take effect
DOWN = Do not force composite on all outputs
